Diagnosis Procedure

FRONT WIPER AUTO STOP SIGNAL CIRCUIT


Diagnosis Procedure

1.CHECK FRONT WIPER MOTOR (AUTO STOP) OUTPUT VOLTAGE
1. Turn the ignition switch OFF.
2. Disconnect front wiper motor connector.
3. Turn the ignition switch ON.

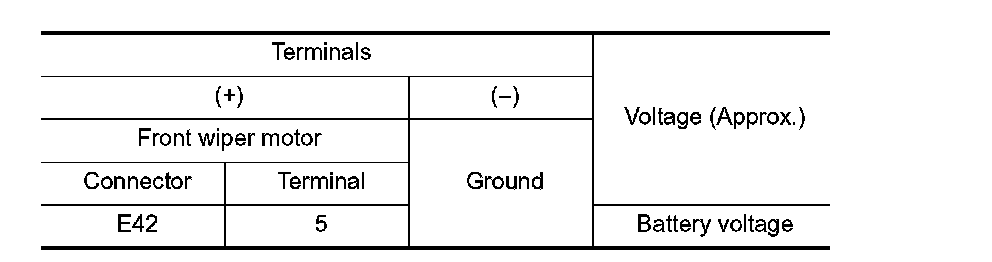

4. Check voltage between front wiper motor harness connector and ground.





Is the measurement value normal?
YES - Replace front wiper motor.
NO - GO TO 2.
2.CHECK FRONT WIPER MOTOR (AUTO STOP) OPEN CIRCUIT CONTINUITY
1. Turn the ignition switch OFF.
2. Disconnect IPDM E/R connector.

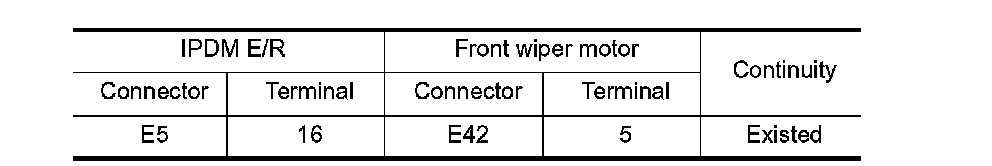

3. Check continuity between IPDM E/R harness connector and front wiper motor harness connector.





Does continuity exist?
YES - GO TO 3.
NO - Repair the harnesses or connectors.
3.CHECK FRONT WIPER MOTOR (AUTO STOP) SHORT CIRCUIT
1. Turn the ignition switch OFF.
2. Disconnect IPDM E/R connector.

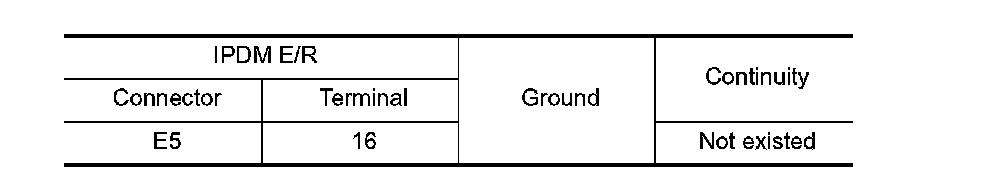

3. Check continuity between IPDM E/R harness connector and ground.





Does continuity exist?
YES - Repair the harnesses or connectors.
NO - Replace IPDM E/R.
