Inspection

QUARTER WINDOW GLASS


Inspection and Adjustment


FITTING INSPECTION

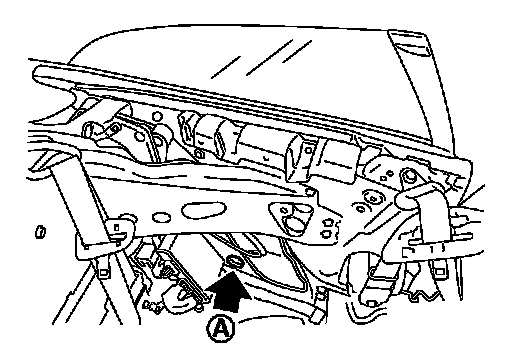

Inclination Adjustment
1. Losses the nut (A) of regulator adjusting bolts.





2. Rotate the regulator adjusting bolts, and then perform the fitting adjusting between the upper end and weather-strip.

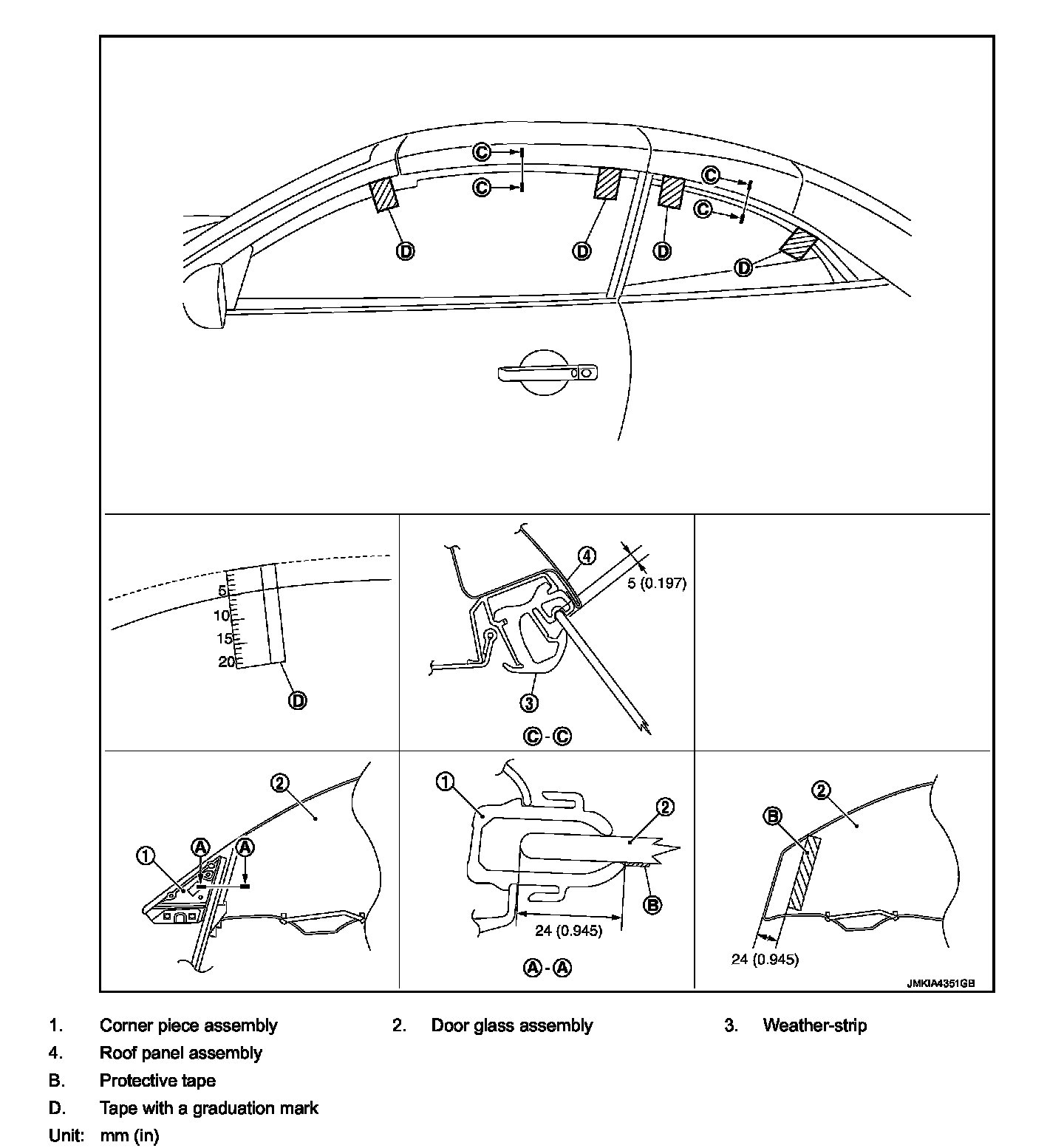

Fitting between door glass and corner piece assembly





1. Remove the door glass. Refer to Removal and Installation.
2. Apply protective tape (B) on door glass at a distance of 24 mm (0.945 in), starting from the door front edge as shown in the figure above.
3. Reinstall the door glass while fitting the corner piece assembly to that distance as shown by the figure above.

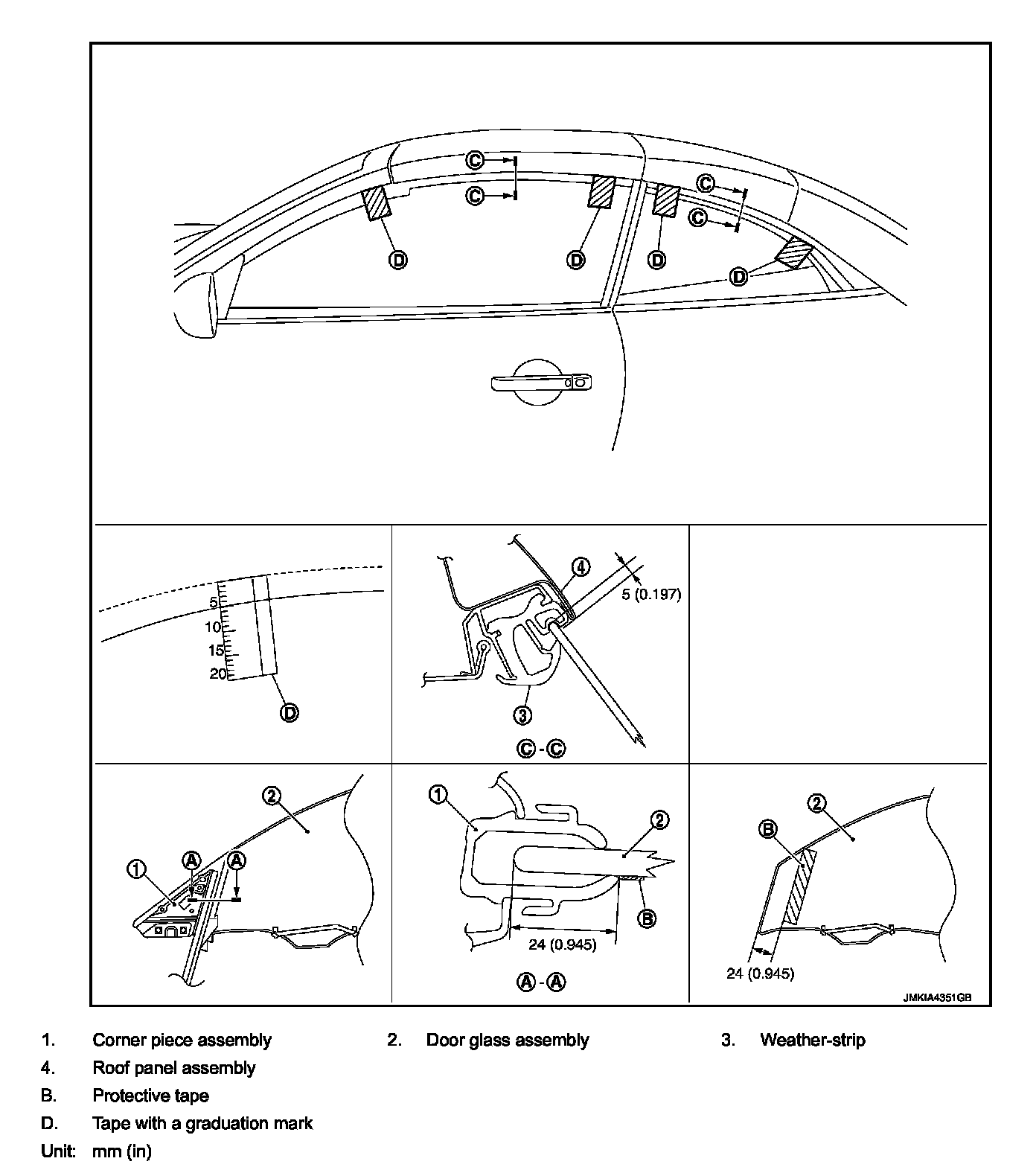

Fitting between door glass, quarter window glass and weather-strip





1. Half open the glass. (Door glass and quarter window glass)
2. Apply a tape with graduation (D) of 20 mm (0.787 in) on glass (door glass and quarter window glass) starting from top edge.
3. Fully close the glass (Door glass and quarter window glass).
4. Check on the graduation mark. It should be 5 mm (0.197 in).
5. If the graduation marks shows more then 5 mm (0.197 in), restart the procedure again.

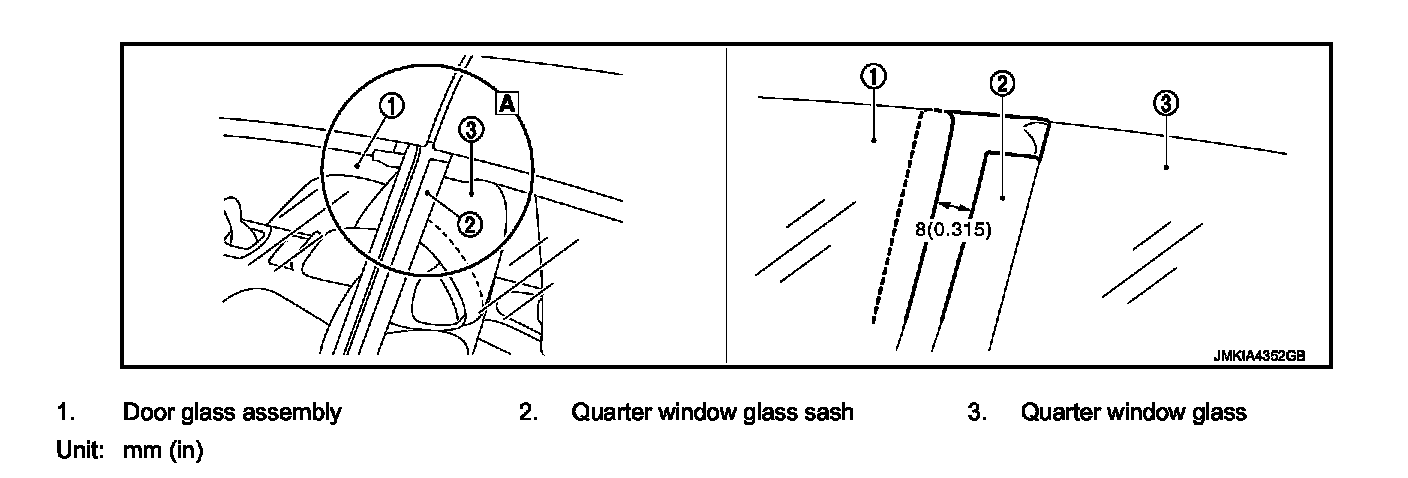

Fitting between door glass and quarter window glass





1. Fully close door glass and quarter window glass.
2. Check that both upper edges of door glass and quarter window glass are the same level.
3. Check that the distance between door glass and quarter window glass sash is 8 mm (0.315 in).
