Diagnosis Procedure

POWER WINDOW MOTOR


REAR RH : Description

Door glass moves UP/DOWN by receiving the signal power window main switch or power window sub-switch .




POWER WINDOW MOTOR


REAR RH : Diagnosis Procedure

1.CHECK REAR POWER WINDOW MOTOR RH INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect rear power window motor RH connector.
3. Turn ignition switch ON.

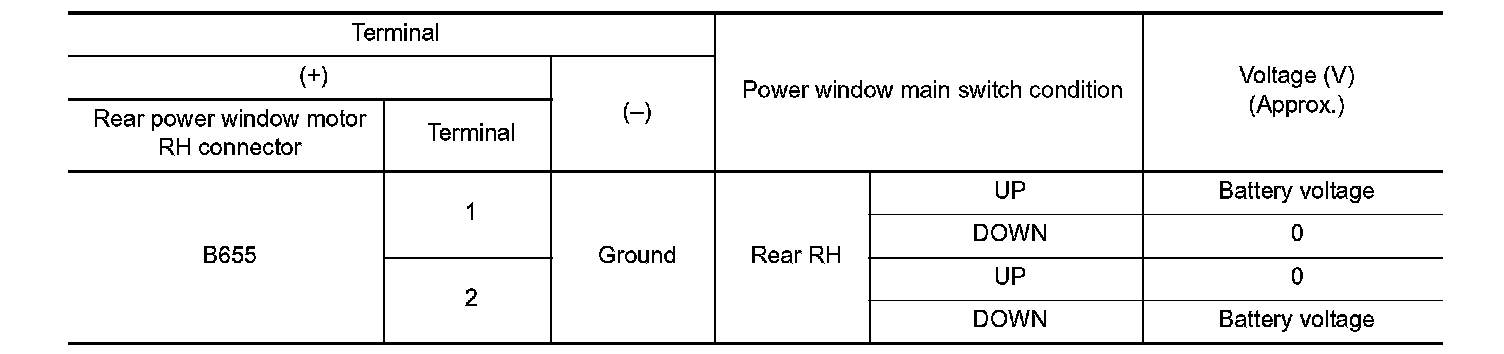

4. Check voltage between rear power window motor RH harness connector and ground.





Is the measurement value within the specification?
YES - Replace rear power window motor LH. Refer to Removal and Installation.
NO - GO TO 2.
2.CHECK RETRACTABLE HARD TOP CONTROL UNIT OUTPUT SIGNAL

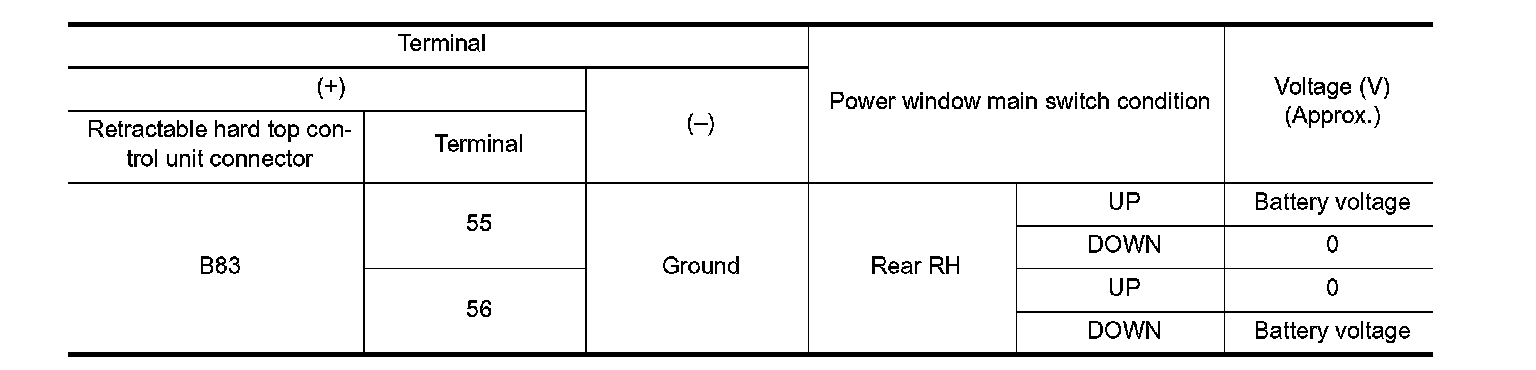

Check voltage between retractable hard top control unit connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - Replace retractable hard top control unit. Refer to Exploded View.
3.CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect retractable hard top control unit connector.

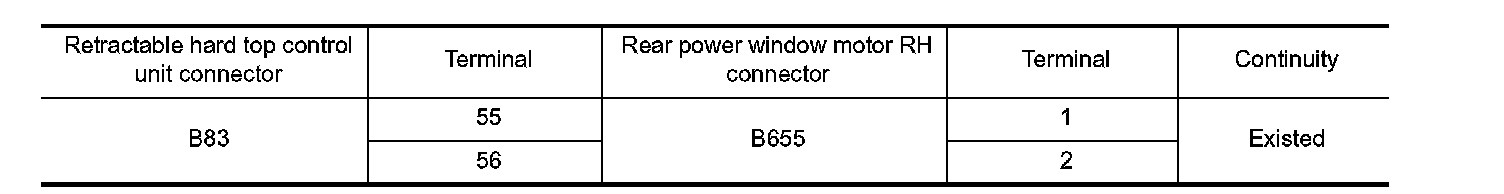

3. Check continuity between retractable hard top control unit harness connector and rear power window motor RH harness connector.

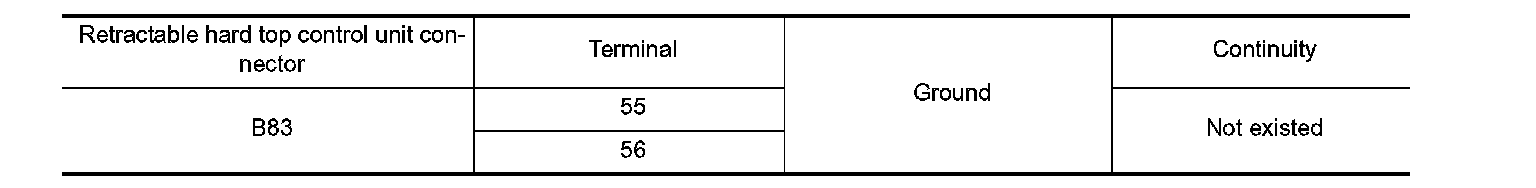

4. Check continuity between retractable hard top control unit harness connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace harness.
4.CHECK INTERMITTENT INCIDENT
Refer to Intermittent Incident.
- INSPECTION END
