PWD

DOOR SWITCH CIRCUIT


PASSENGER SIDE : Diagnosis Procedure

1.CHECK DOOR SWITCH
Check door switch.Refer to Component Function Check.
Is the inspection result normal?
YES - GO TO 2.
NO - Repair or replace the malfunctioning parts.
2.CHECK DOOR SWITCH INPUT SIGNAL

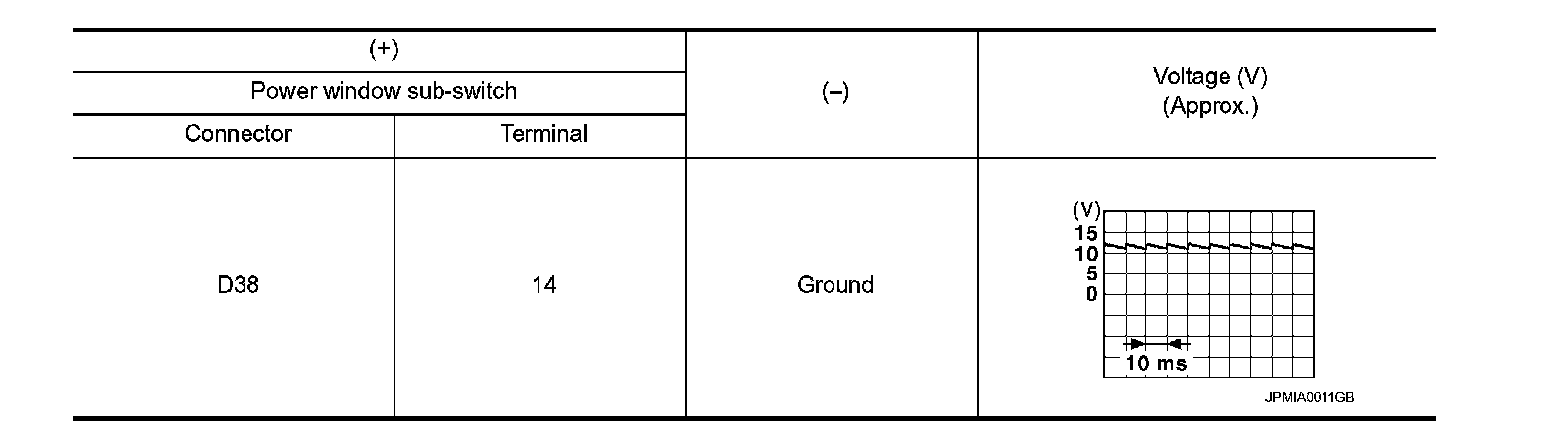

Check voltage between power window sub-switch harness connector and ground.





Is the inspection result normal?
YES - Replace power window sub-switch.Refer to Service and Repair.
NO - GO TO 3.
3.CHECK DOOR SWITCH CIRCUIT
1. Disconnect passenger side door switch connector.

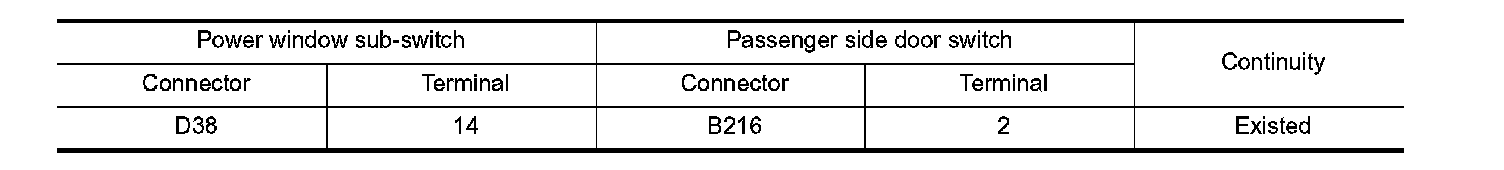

2. Check continuity between passenger side door switch harness connector and power window sub-switch harness connector.

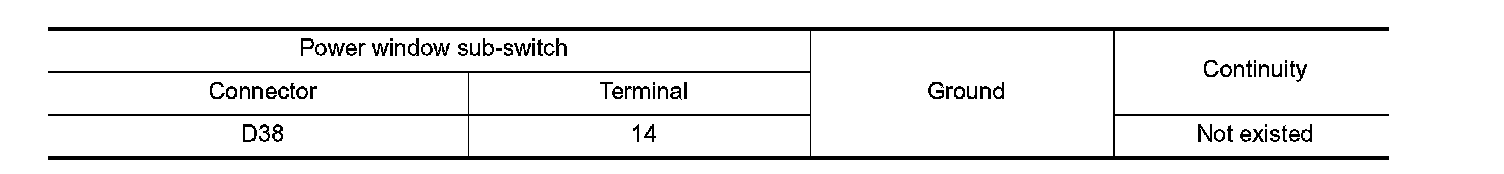

3. Check continuity between power window sub-switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace harness.
4.CHECK INTERMITTENT INCIDENT
Refer to Intermittent Incident.
- INSPECTION END
