Power Window Switch: Service and Repair

POWER WINDOW MAIN SWITCH


Removal and Installation


REMOVAL
1. Remove the door finisher. Refer to Service and Repair.

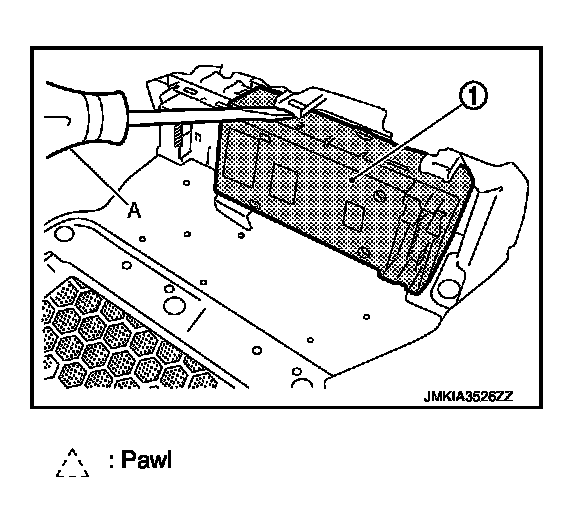

2. Power window main switch (1) is removed from door finisher using flat-bladed screw driver (A) etc.

CAUTION:
Do not fold the pawl of power window main switch finisher.

NOTE:
The same procedure is also performed for power window subswitch.

INSTALLATION
Install in the reverse order of removal.

NOTE:
Power window main switch is exchanged or is detached it is necessary to do the initialization procedure. Programming and Relearning
