Component Inspection

PASSENGER SIDE DOOR MIRROR DEFOGGER


Component Inspection

1.CHECK PASSENGER DOOR MIRROR DEFOGGER
1. Turn ignition switch OFF.
2. Disconnect door mirror (passenger side) connector.

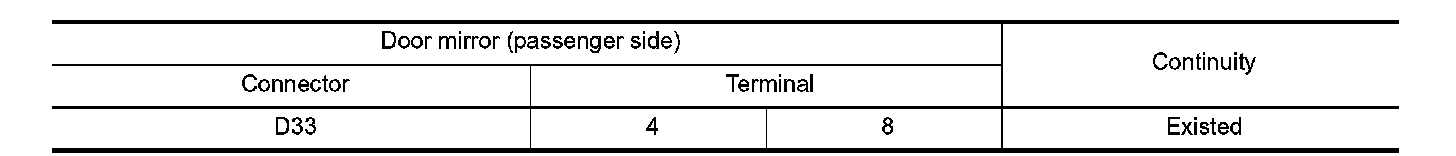

3. Check continuity between door mirror terminals.





Is the inspection result normal?
YES - INSPECTION END.
NO - Replace door mirror (passenger side). Refer to Removal and Installation.
