Component Inspection (Selector Lever Position Indicator)

SELECTOR LEVER POSITION INDICATOR


Component Inspection (Selector Lever Position Indicator)

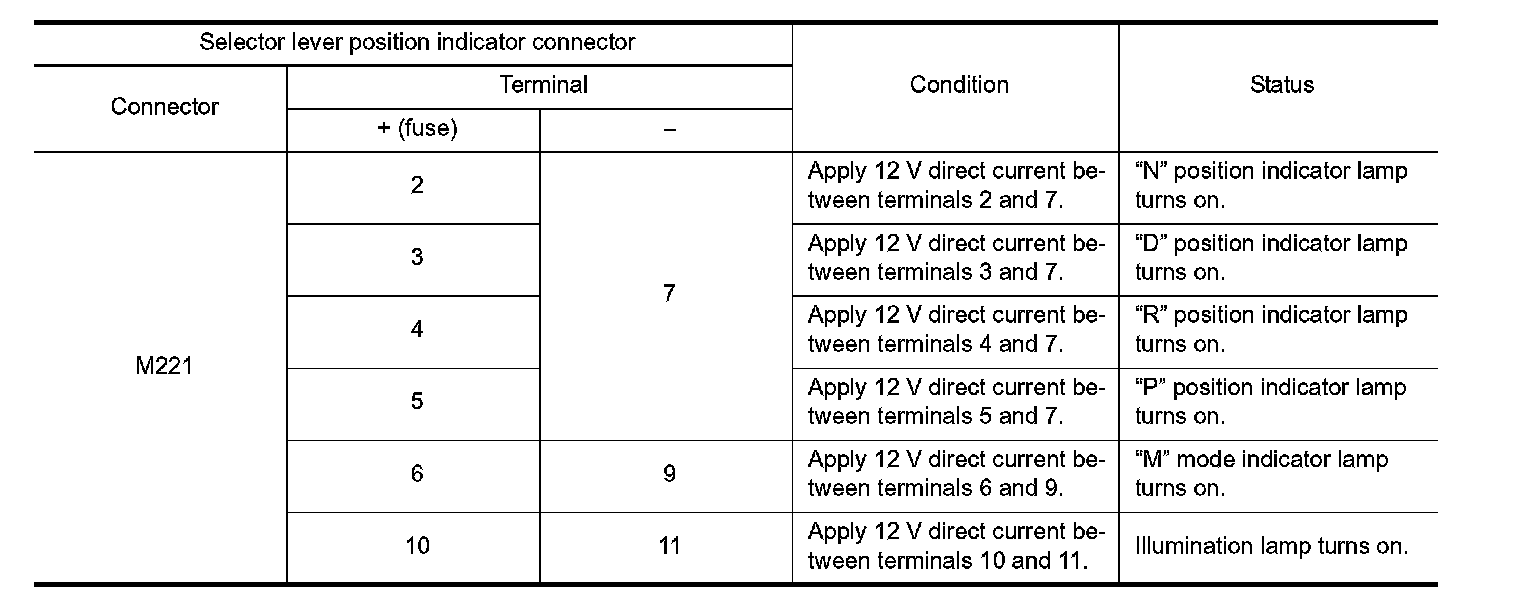

1.CHECK SELECTOR LEVER POSITION INDICATOR
Check that selector lever position indicator lamps turn on.

CAUTION:
Connect the fuse between the terminals when applying the voltage.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace the selector lever position indicator. Refer to Exploded View.
