Disassembly

COUNTER SHAFT AND GEAR


Disassembly

1. Remove 3rd counter gear with the following procedure.

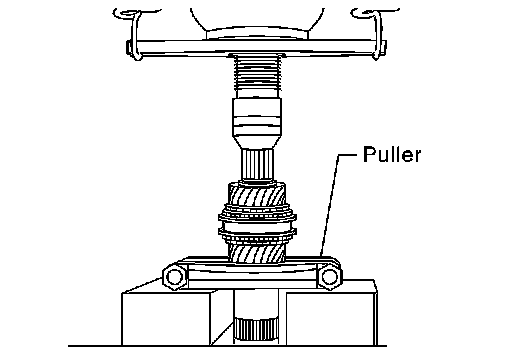

a. Set a puller [Commercial service tool] to 3rd counter gear.
b. Remove the parts below together with 3rd counter gear from counter shaft with a pressing machine.


�Counter rear bearing inner race
�4th counter gear thrust washer
�4th counter gear
�4th needle bearing
�4th gear bushing
�4th inner baulk ring
�4th synchronizer cone
�4th outer baulk ring
�3rd-4th synchronizer hub assembly
�3rd outer baulk ring
�3rd synchronizer cone
�3rd inner baulk ring


CAUTION:
Never drop counter shaft.
2. Remove 3rd-4th spread springs, 3rd-4th shifting inserts, and 3rd-4th coupling sleeve from 3rd-4th synchronizer hub.
3. Remove 3rd needle bearing from counter shaft.
4. Remove 3rd gear bushing with the following procedure.





a. Set a puller [Commercial service tool] to 3rd gear bushing.
b. Remove 3rd gear bushing from counter shaft with a pressing machine.

CAUTION:
- Never use oil hole of 3rd gear bushing when press out.
- Never drop counter shaft.
