Removal and Installation

REAR OIL SEAL


Removal and Installation


REMOVAL
1. Separate propeller shaft assembly. Refer to Removal and Installation.

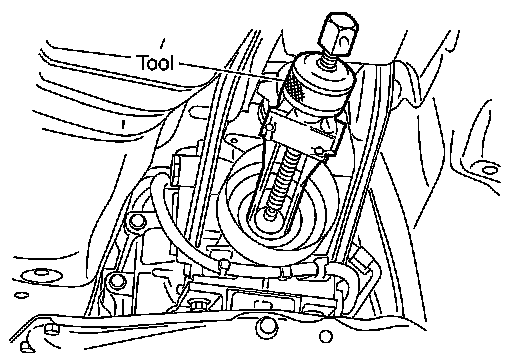

2. Remove rear oil seal from rear extension using the puller [SST:
KV381054S0 (J-34286)].

CAUTION:
Never damage rear extension.

INSTALLATION

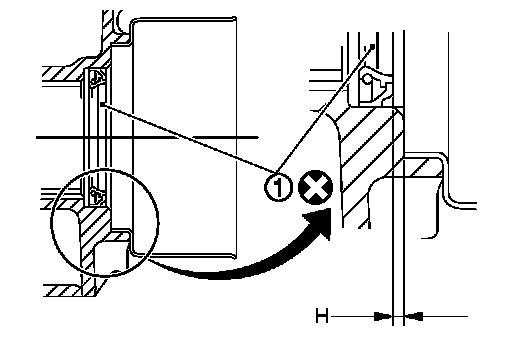

1. Install rear oil seal (1) to rear extension using the drift [SST:





ST33400001 (J-26082)].

Dimension "H" : 1.2 - 2.2 mm (0.047 - 0.087 in)


CAUTION:
Never incline rear oil seal.
2. Install propeller shaft assembly. Refer to Removal and Installation.
