Refilling

GEAR OIL


Refilling

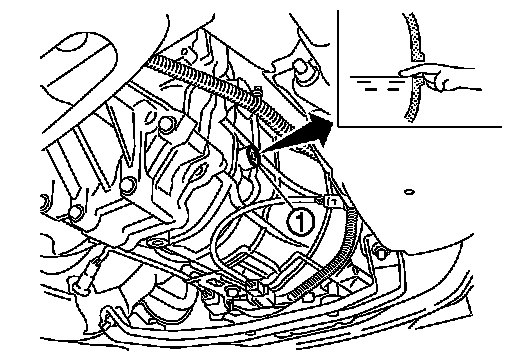

1. Remove filler plug (1) and gasket from transmission case.
2. Fill with new gear oil to transmission as shown in the figure.

Oil grade and viscosity
: Refer to MA-10, "Fluids and Lubricants".
Maintenance

Oil capacity
: Refer to , "General Specifications".
General Specifications


CAUTION:
Never reuse drained gear oil.
3. After refilling gear oil, check the oil level. Refer to Exploded View Testing and Inspection Draining Refilling, "Inspection".
4. Set a gasket on filler plug and then install it to transmission case.

CAUTION:
Never reuse gasket.
5. Tighten filler plug to the specified torque. Refer to Exploded View.
5. Tighten filler plug to the specified torque. Refer to Exploded View.
