Differential Assembly: Description and Operation

REAR FINAL DRIVE ASSEMBLY

System Diagram

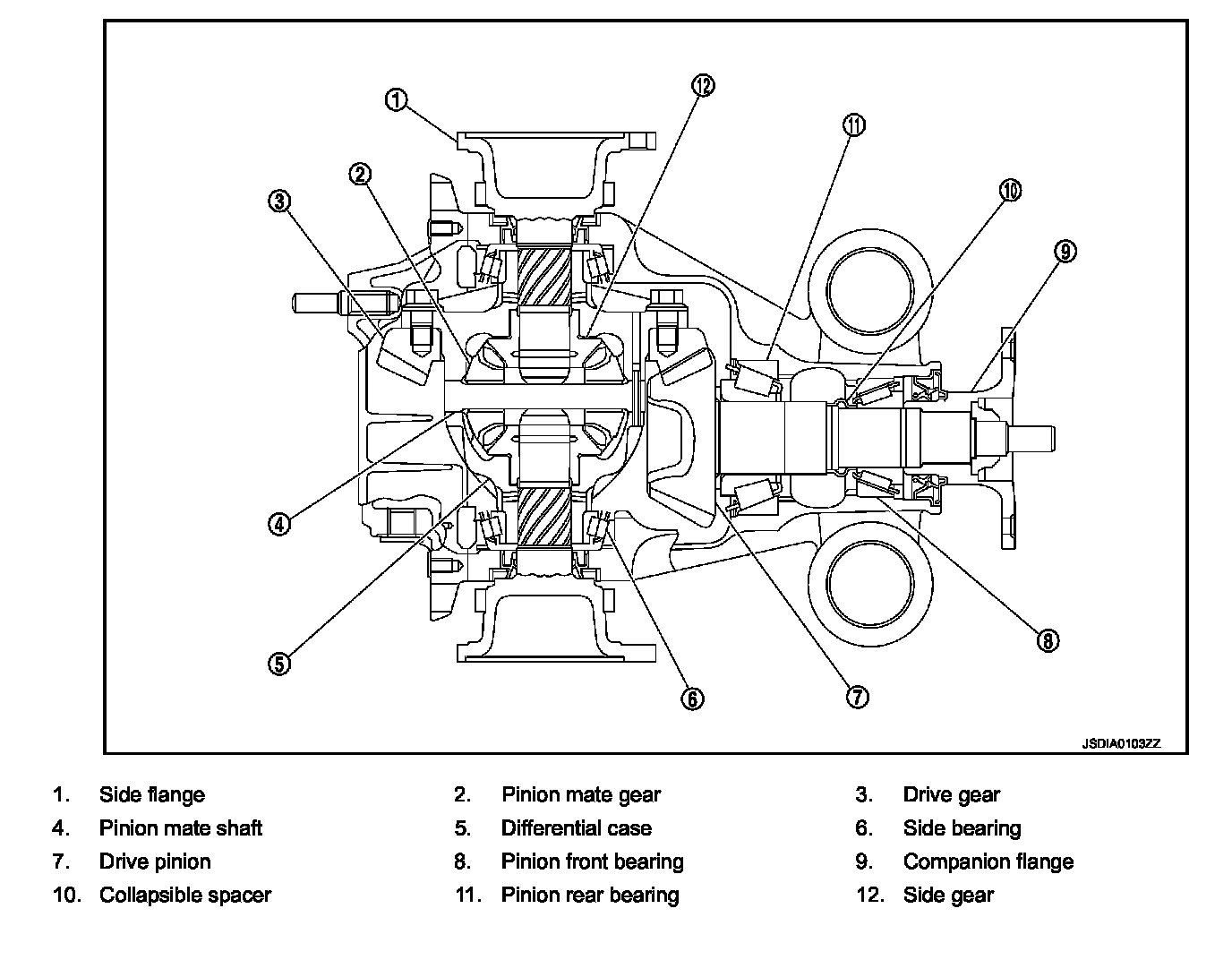

CROSS-SECTIONAL VIEW

M/T

A/T
