CLUTCH PEDAL


Inspection and Adjustment


INSPECTION AFTER REMOVAL
Check the following items and replace clutch pedal if necessary.





- Check clutch pedal upper rivets (A) for deformation.

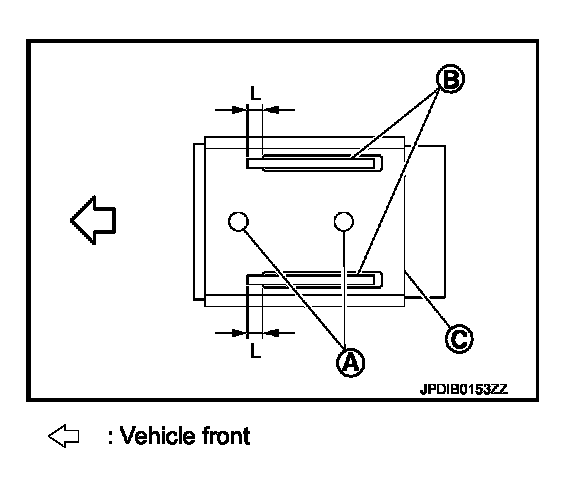

- Check the lapping length "L" of sub-bracket (B) and slide plate (C).

Lapping length "L" : More than 5 mm (0.20 in)

- Check clutch pedal for bend, damage, and cracks on the welded parts.

INSPECTION AFTER INSTALLATION
Check the clutch pedal free play. Refer to Adjustments.

ADJUSTMENT AFTER INSTALLATION
Adjust the clutch interlock switch position. Refer to Adjustments.
