Adjustment

A/T FLUID


Adjustment

ATF : Refer to "General Specification". General Specification
Fluid capacity : Refer to "General Specification". General Specification

CAUTION:
- Use only Genuine NISSAN Matic S ATF. Never mix with other ATF.
- Using ATF other than Genuine NISSAN Matic S ATF will cause deterioration in driveability and A/T durability, and may damage the A/T, which is not covered by the INFINITI new vehicle limited warranty.
- When filling ATF, be careful not to scatter heat generating parts such as exhaust.
- Always maintain the ATF temperature within between 35�C (95�F) and 45�C (113�F) while checking with CONSULT-III when the ATF level adjustment is performed.

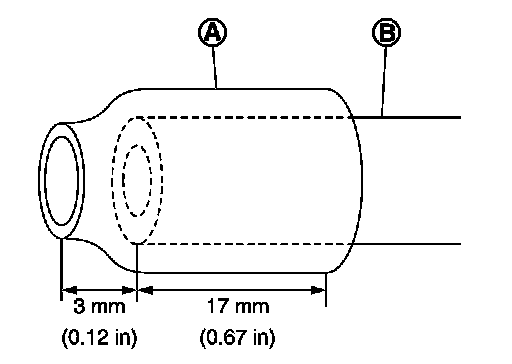

1. Cut the vacuum hose (B2318N3301) (A) by 20 mm (0.79 in) to fit in at the top of the ATF exchanger pipe (B) as shown in the figure.
2. Start the engine.
3. Make the ATF temperature approximately 40�C (104�F).

NOTE:
The ATF level is greatly affected by the temperature. Always check the ATF temperature on "ATF TEMP 1" of "Data Monitor" using CONSULT-III.
4. Park vehicle on level surface and set parking brake.
5. Shift the selector lever through each gear position. Leave selector lever in "P" position.
6. Lift up the vehicle.
7. Check the ATF leakage from transmission.
8. Remove overflow plug from oil pan.
9. Insert the own made tube to the overflow plug hole, and then fill approximately 0.5 liters (1/2 US qt, 1/2 Imp qt) of the ATF.
10. Check that the ATF leaks when removing the own made tube from the overflow plug hole. If the ATF does not leak, refill the ATF.
11. When the ATF starts to drop, tighten the overflow plug to the oil pan to the specified torque. Refer to Exploded View.

CAUTION:
Never reuse overflow plug.
