Wiring Diagram - CONSULT-III/GST Checking System
CONSULT-III/GST CHECKING SYSTEM

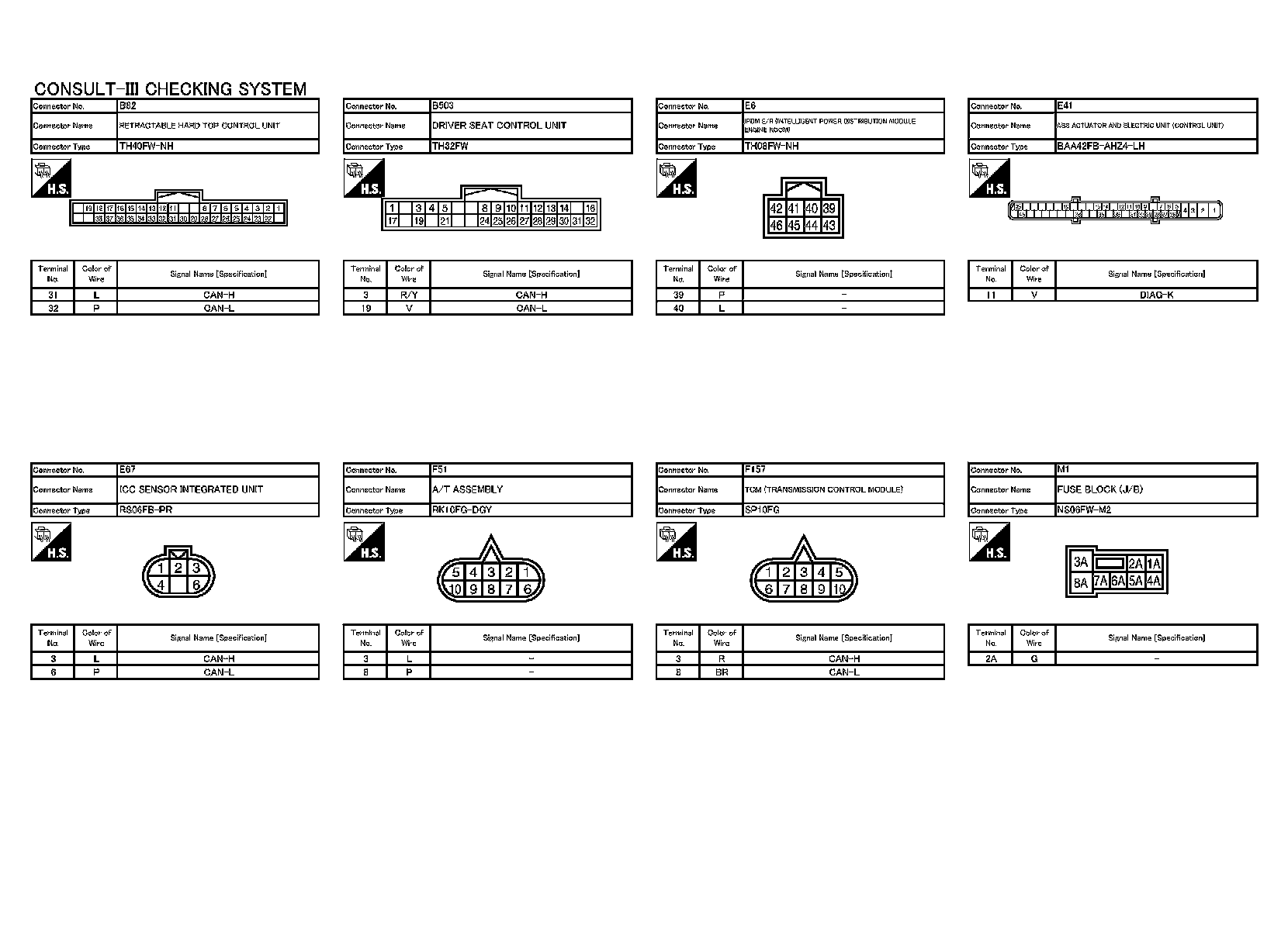

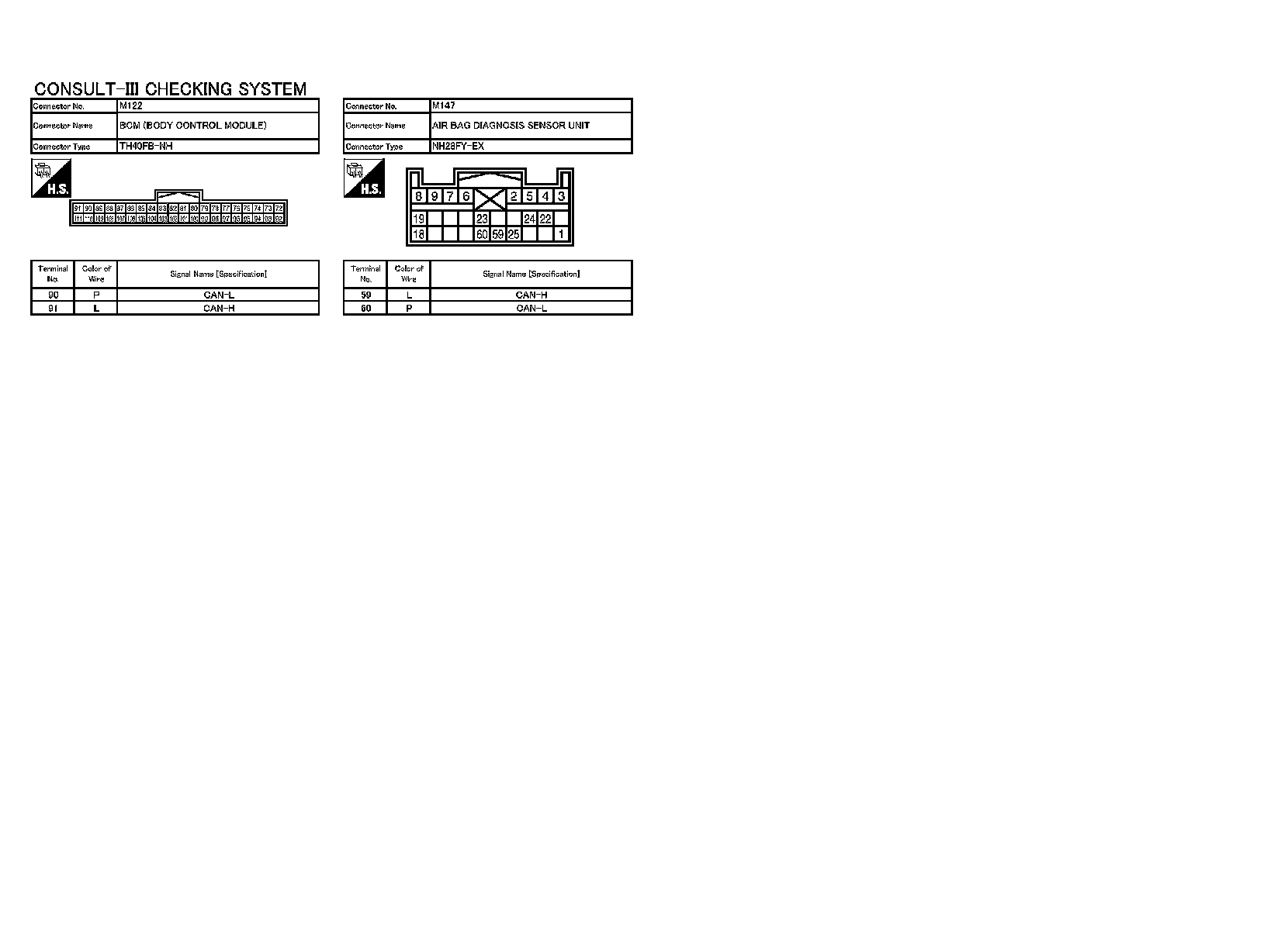

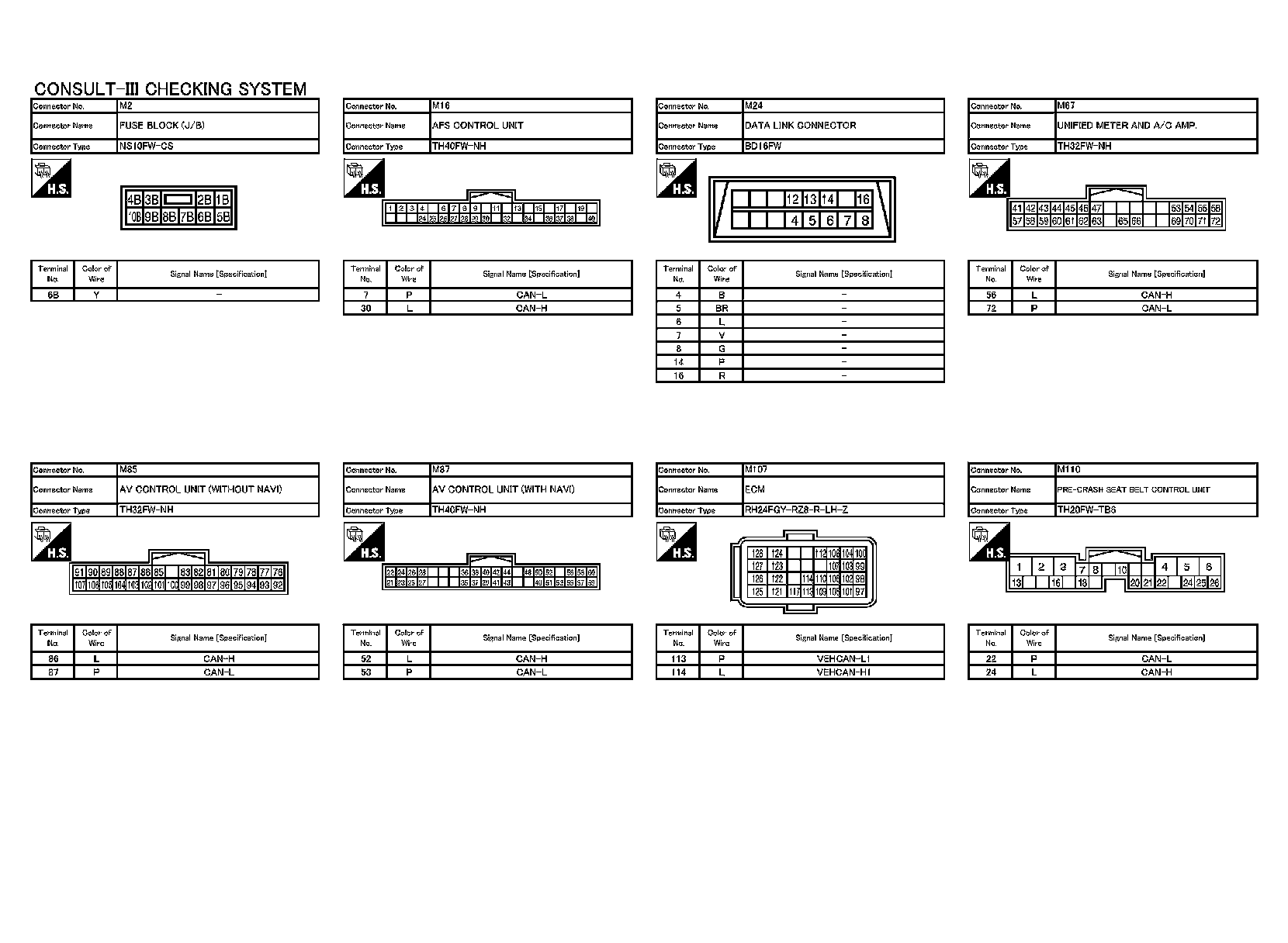

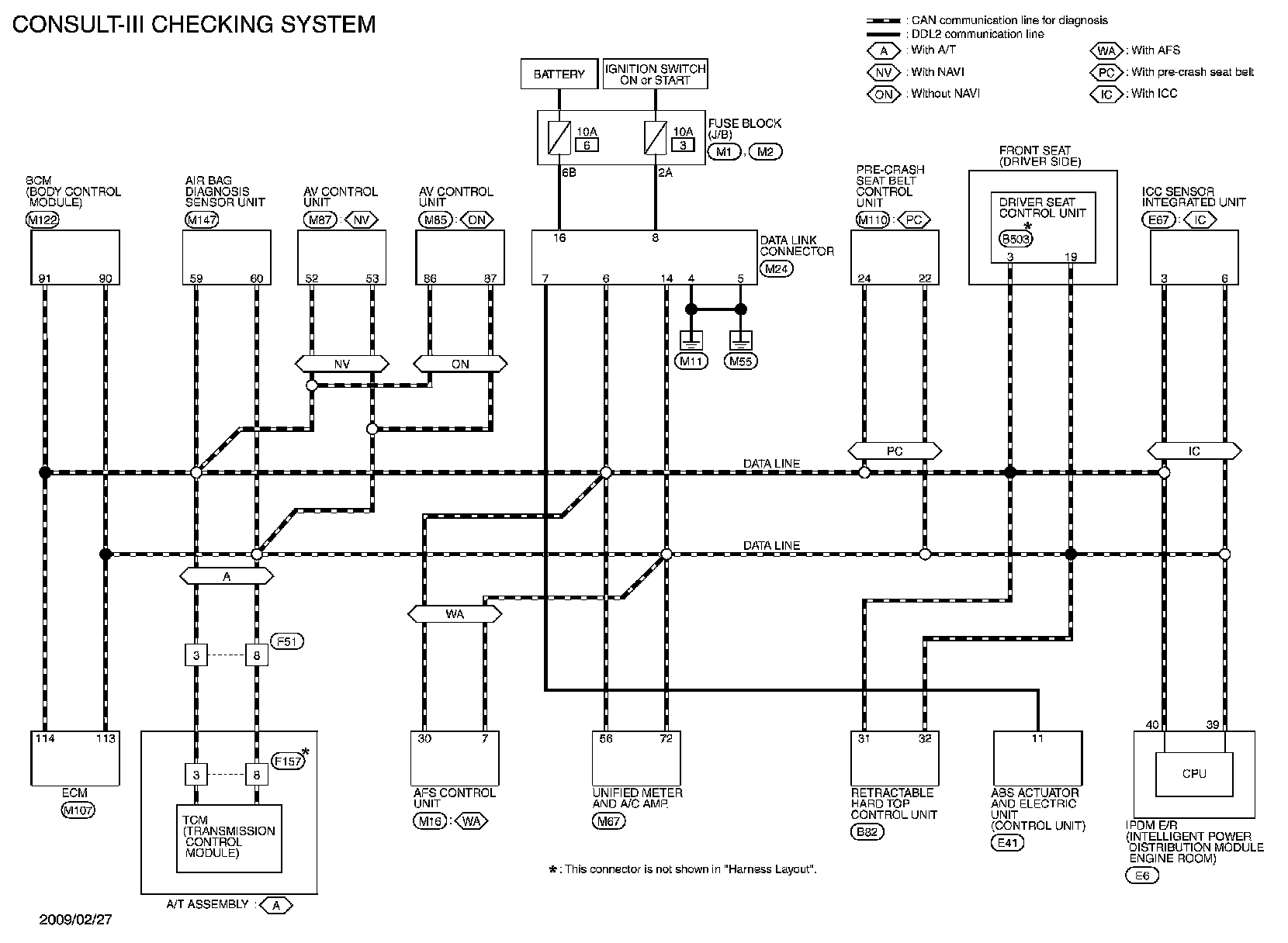

Wiring Diagram - CONSULT-III/GST CHECKING SYSTEM -
