Battery Power Supply Fusible Link No. I





POWER SUPPLY ROUTING CIRCUIT

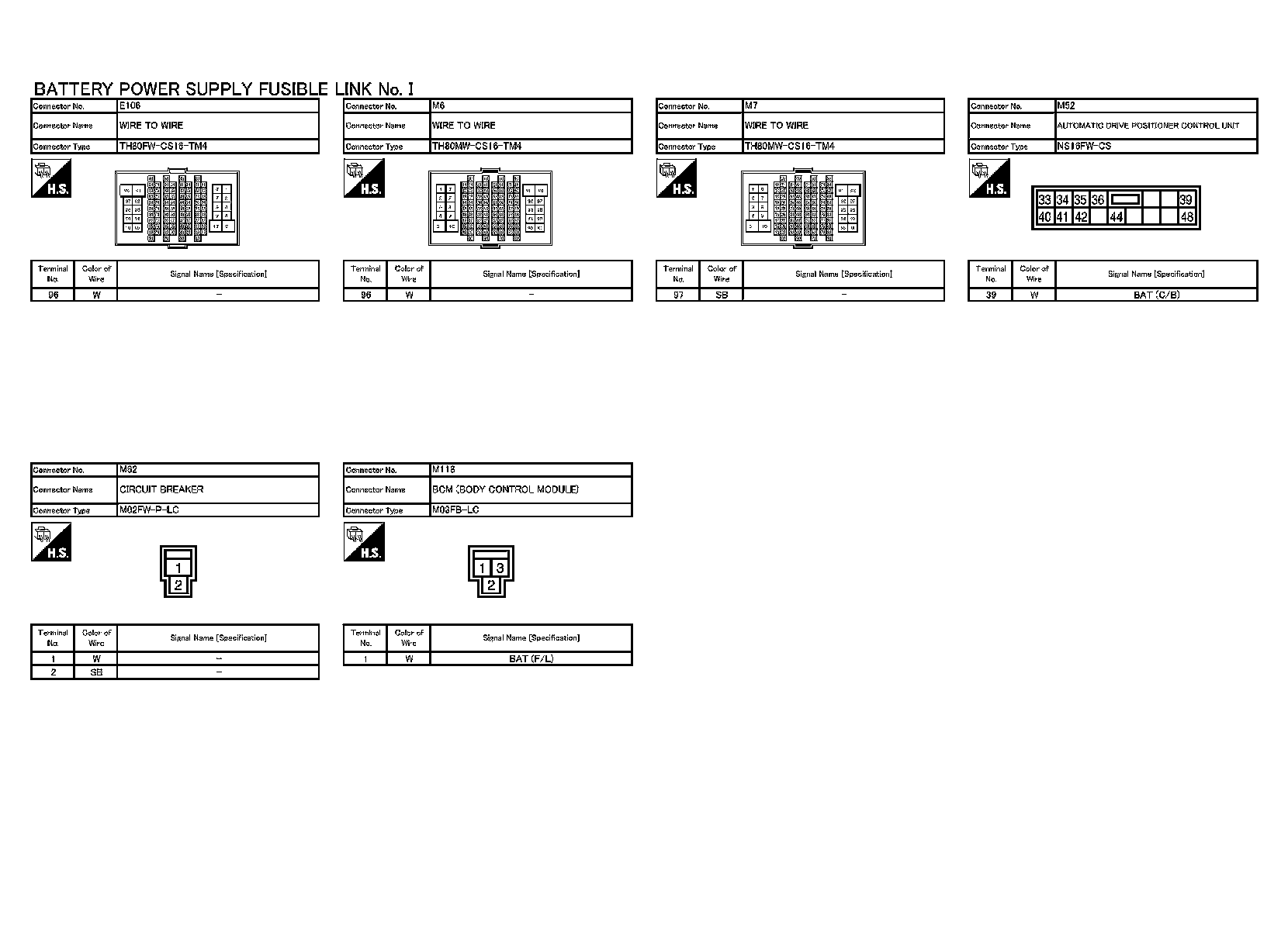

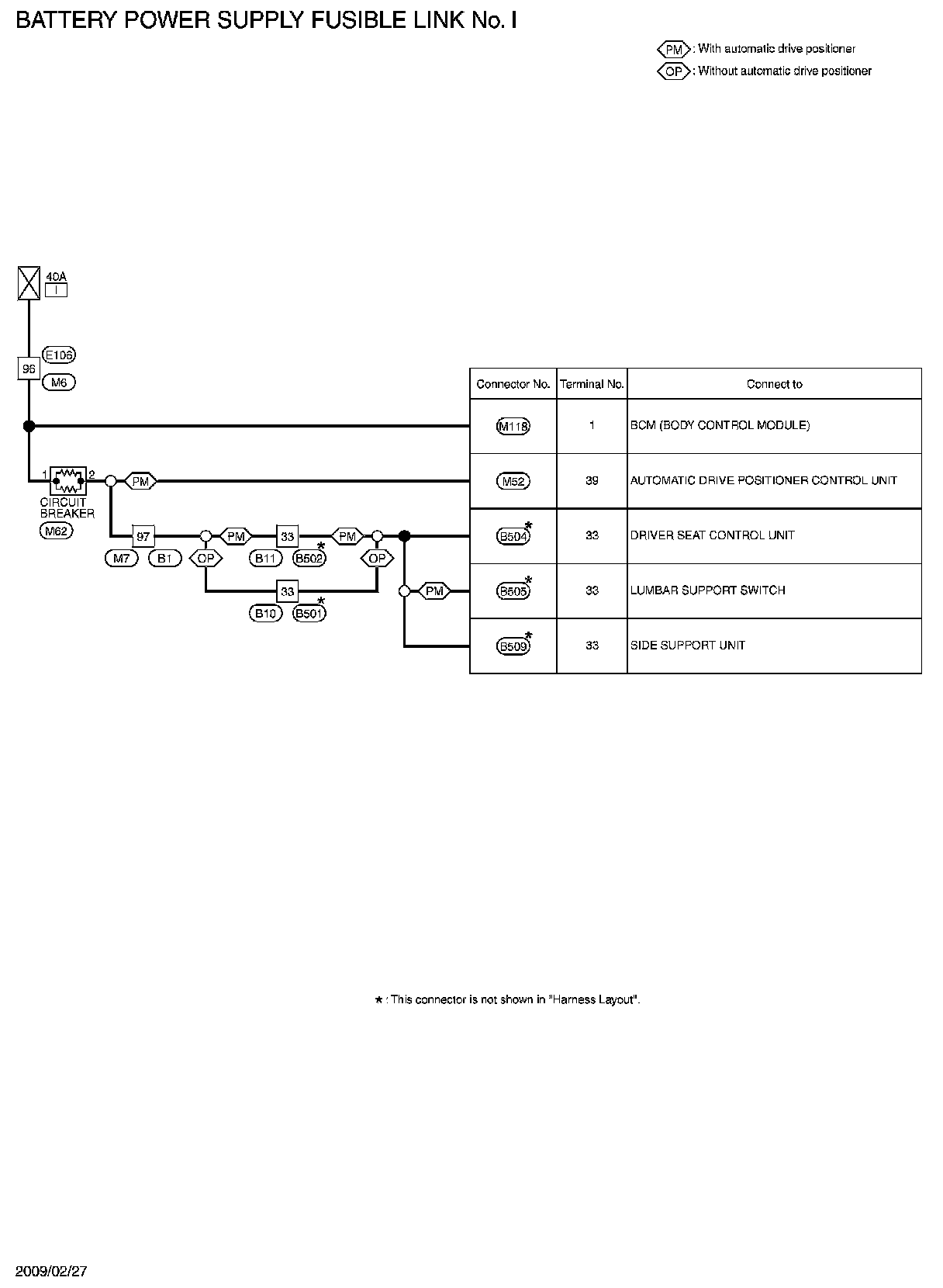

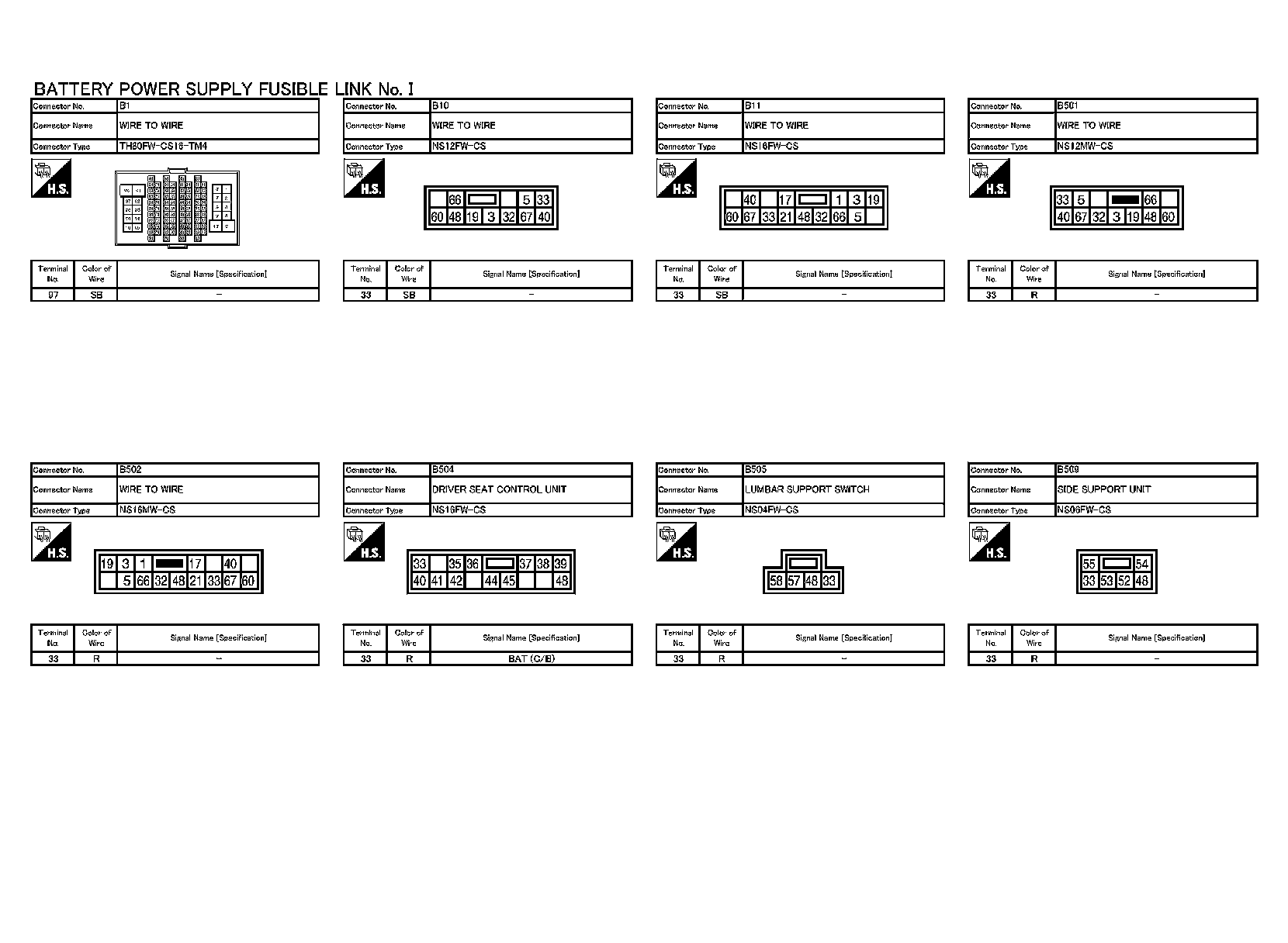

Wiring Diagram - BATTERY POWER SUPPLY FUSIBLE LINK No. I -
