Removal and Installation





BATTERY


Removal and Installation


REMOVAL
1. Remove battery cover.
2. Remove cowl top cover (RH). Refer to Removal and Installation.
3. Remove cover of battery positive terminal.

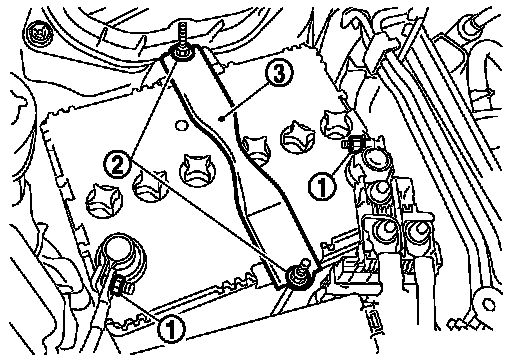

4. Loosen battery terminal nuts (1), and disconnect both battery cables from battery terminals.

CAUTION:
When disconnecting, disconnect the battery cable from the negative terminal first.
5. Remove battery fix frame mounting nuts (2) and battery fix frame (3).
6. Remove battery.

INSTALLATION
Install in the reverse order of removal.

CAUTION:
When connecting, connect the battery cable to the positive terminal first.

Battery fix frame mounting nut
Tightening Torque: 3.9 Nm (0.40 kg-m, 35 in-lb)

Battery terminal nut
Tightening Torque: 5.4 Nm (0.55 kg-m, 48 in-lb)

Reset electronic systems as necessary. Refer to Programming and Relearning.
