Intake Manifold

SERVICE DATA AND SPECIFICATIONS (SDS)

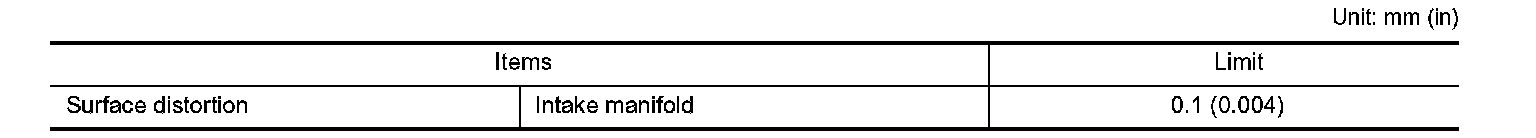

Intake Manifold





Tightening Torque

1st step 7.4 Nm (0.75 kg-m, 5 ft-lb)
2nd step and after 25.5 Nm (2.6 kg-m, 19 ft-lb)

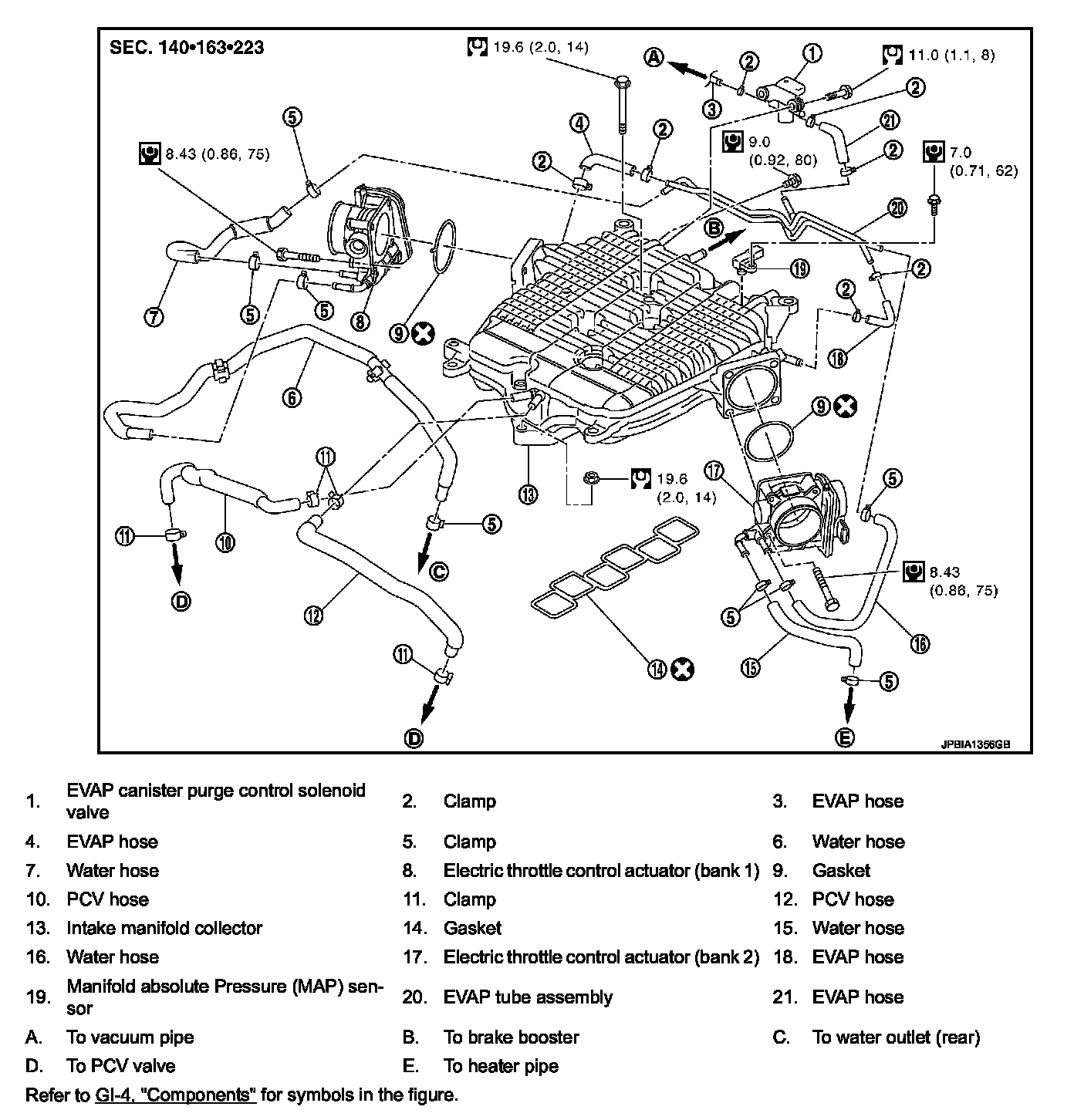

INTAKE COLLECTOR

Tightening Torque 10.8 Nm (1.1 kg-m, 8 ft-lb)

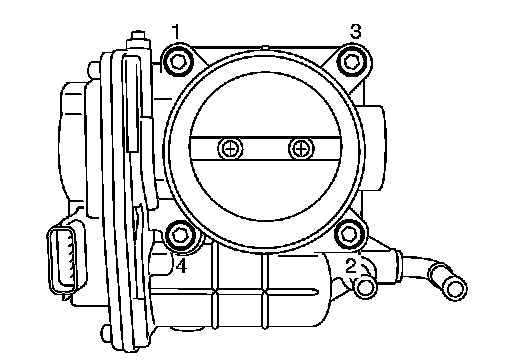

Throttle Body (Electric Throttle Control Actuator)
