Home >> Infiniti >> 2009 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Seat Belt Buckle Switch >> Locations

Seat Belt Buckle Switch: Locations





PRE-CRASH SEAT BELT SYSTEM

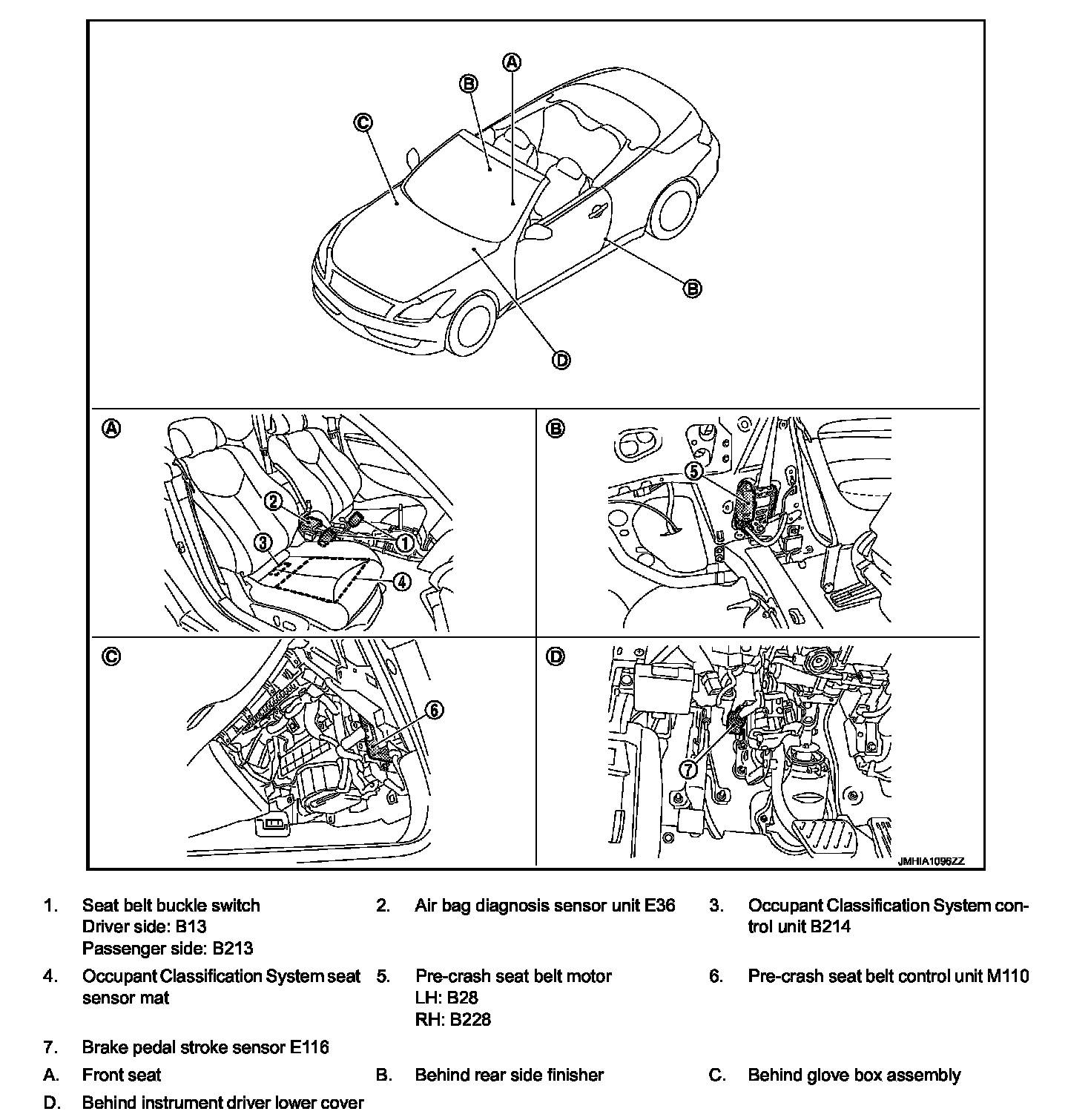

Component Parts Location
