Component Inspection

SEAT BELT BUCKLE SWITCH


PASSENGER SIDE : Component Inspection

1.CHECK SEAT BELT BUCKLE SWITCH (PASSENGER SIDE)
1. Turn ignition switch OFF.
2. Disconnect seat belt buckle switch connector.

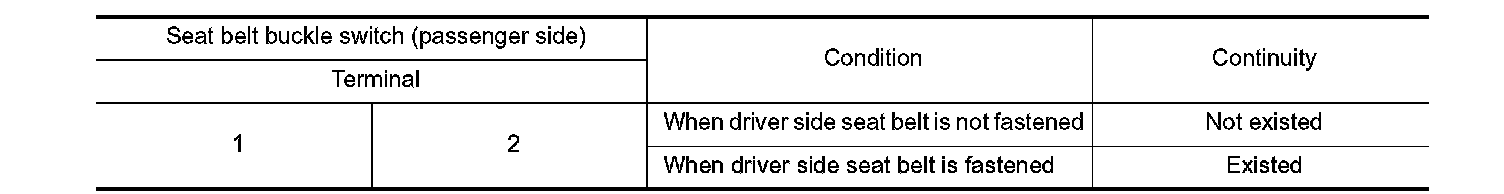

3. Check continuity of seat belt buckle (passenger side).





Is the inspection result normal?
YES - INSPECTION END
NO - Replace seat belt buckle switch (passenger side).
