Removal and Installation

DRIVER SEAT CONTROL UNIT


Removal and Installation


REMOVAL

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

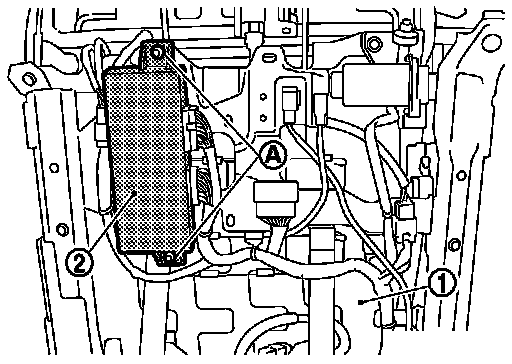

1. Remove driver seat (1). Refer to Removal and Installation.
2. Remove mounting bolts (A).
3. Remove driver seat control unit (2).

INSTALLATION
Install in the reverse order of removal.

CAUTION:
Always clamp the harness to the right place.
