CONSULT-III Function (Engine)

ON BOARD DIAGNOSTIC (OBD) SYSTEM


CONSULT-III Function

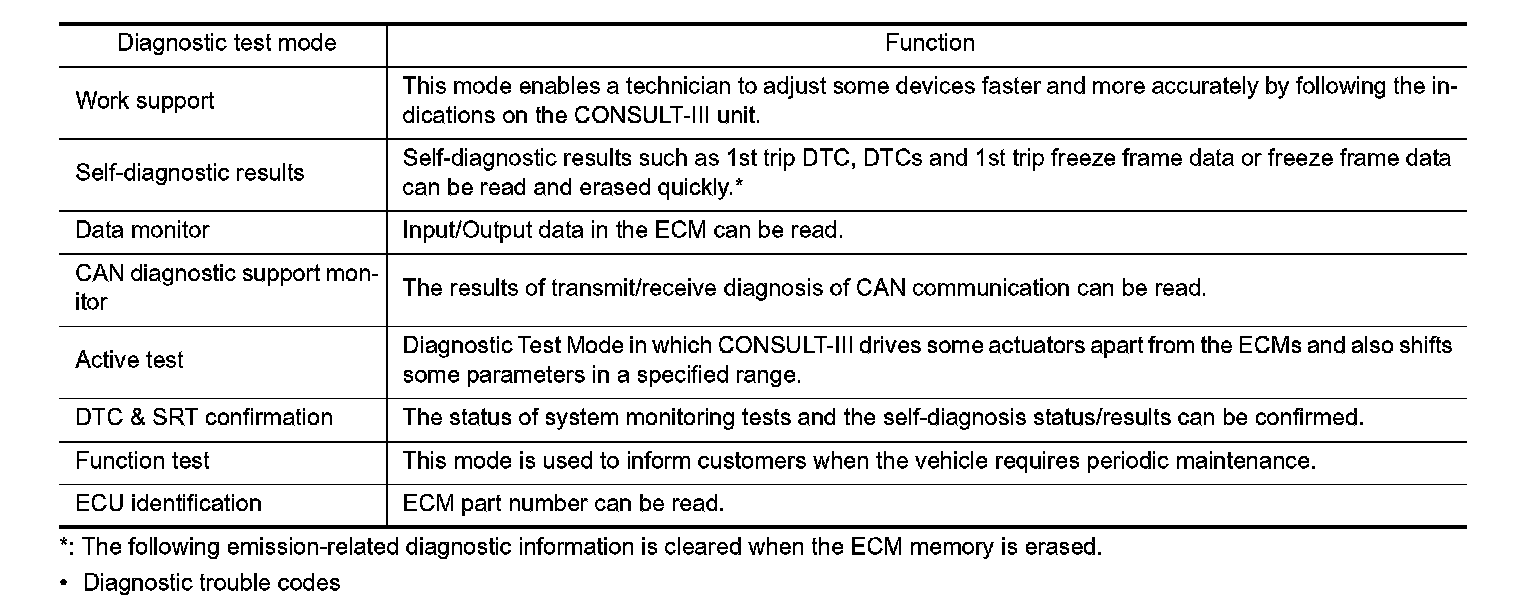

FUNCTION





^ 1st trip diagnostic trouble codes
^ Freeze frame data
^ 1st trip freeze frame data
^ System readiness test (SRT) codes
^ Test values

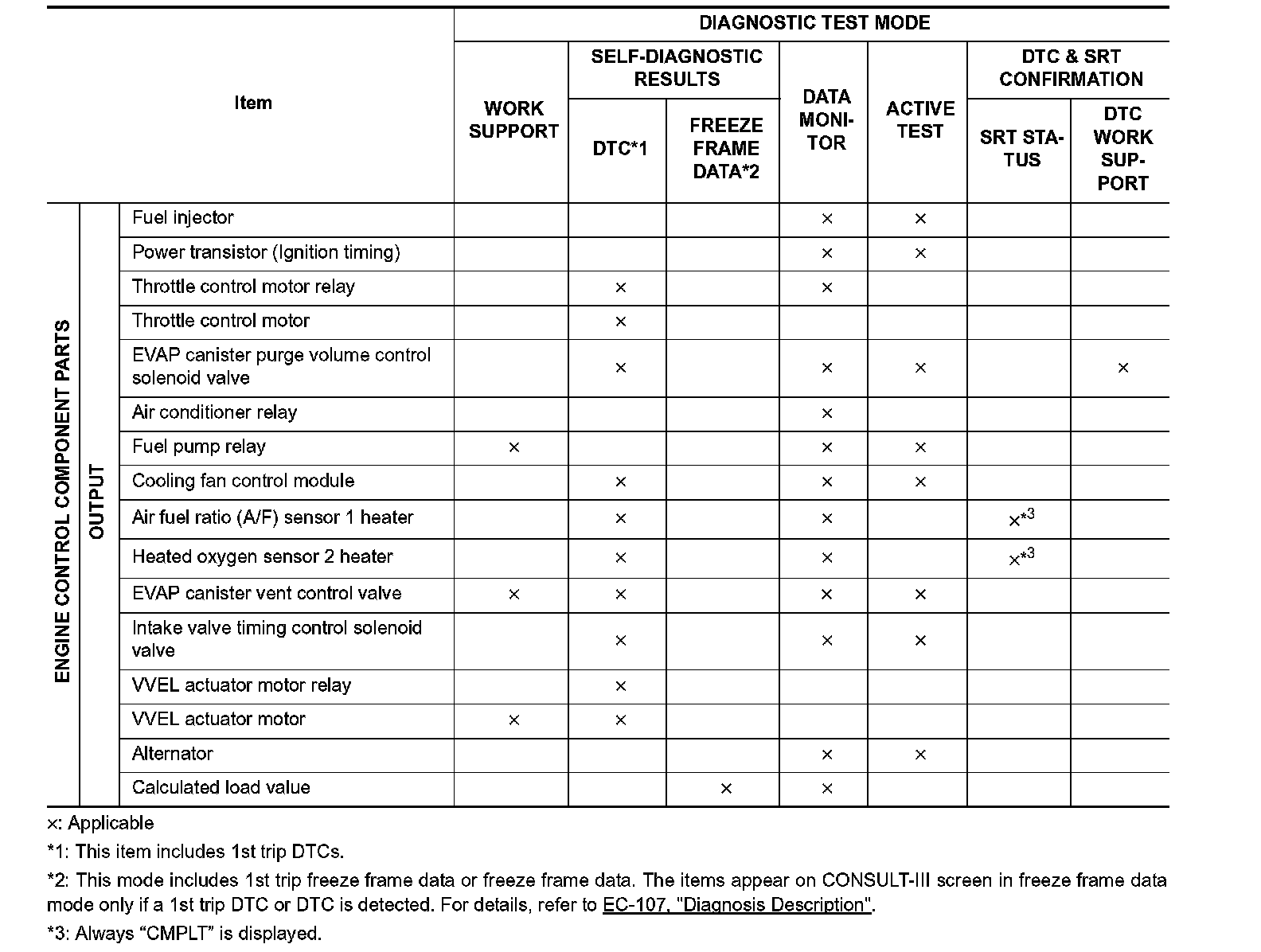

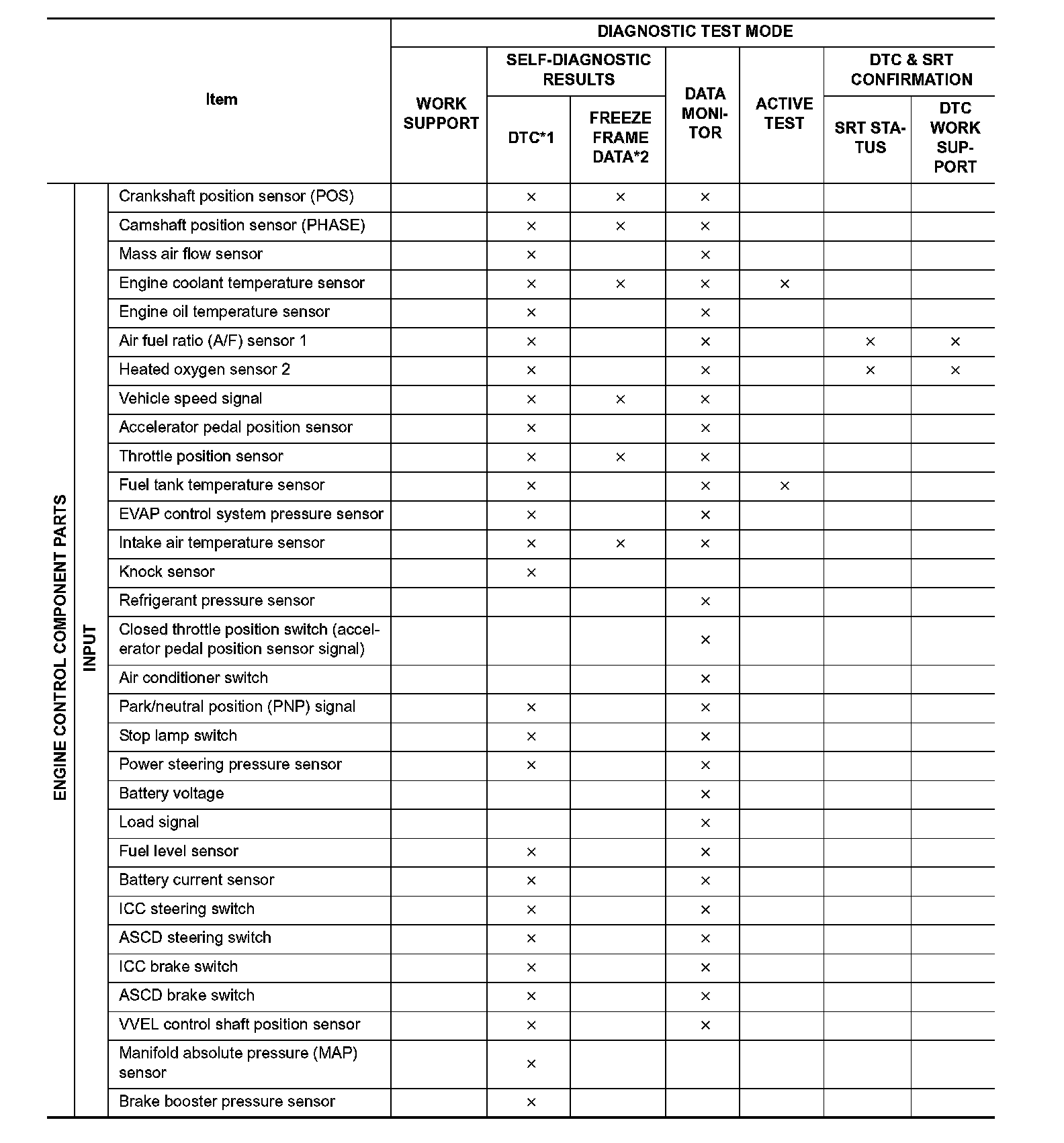

ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION

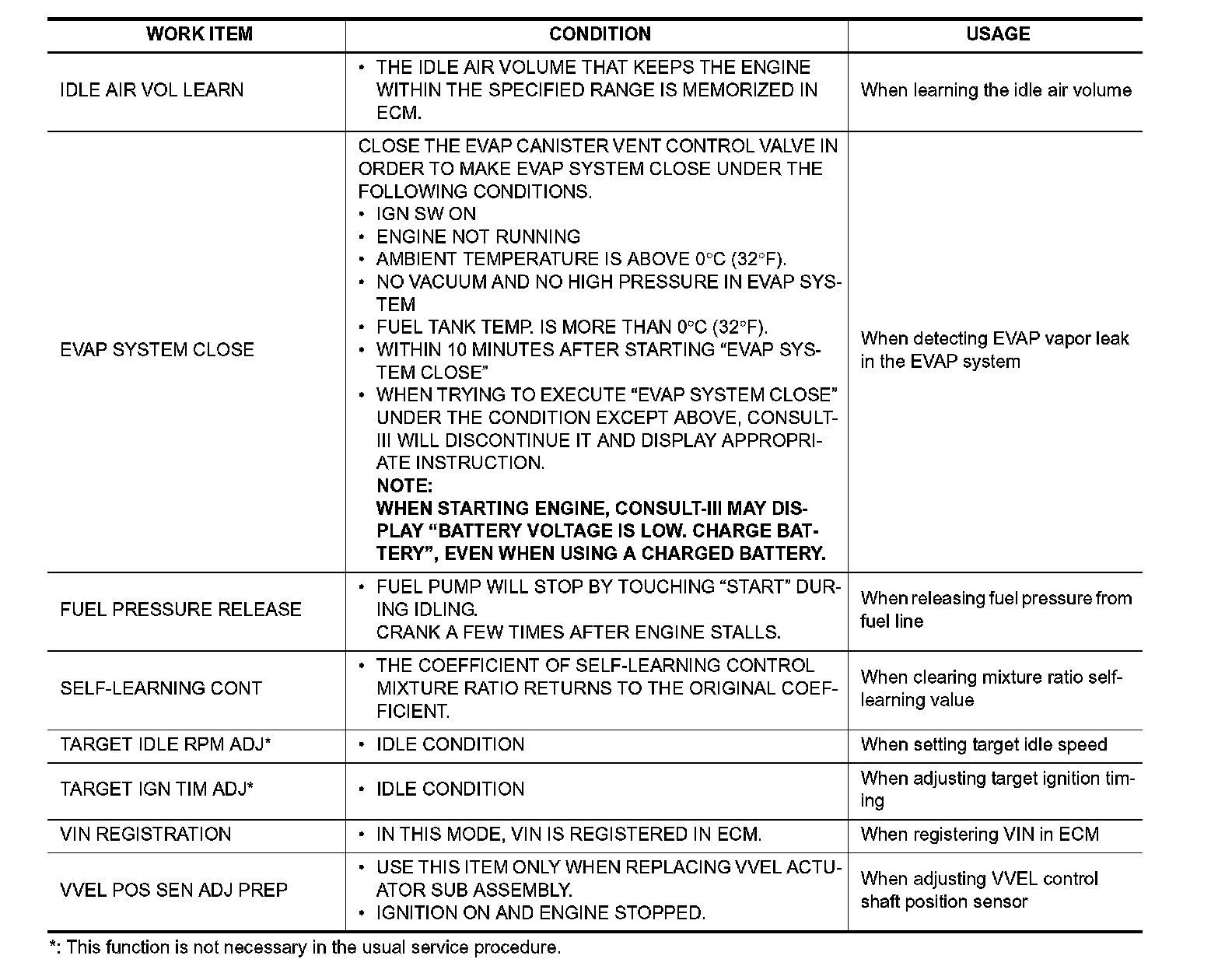

WORK SUPPORT MODE

Work Item






SELF-DIAG RESULTS MODE

Self Diagnostic Item
Regarding items of DTC and 1st trip DTC, refer to Testing and Inspection.)

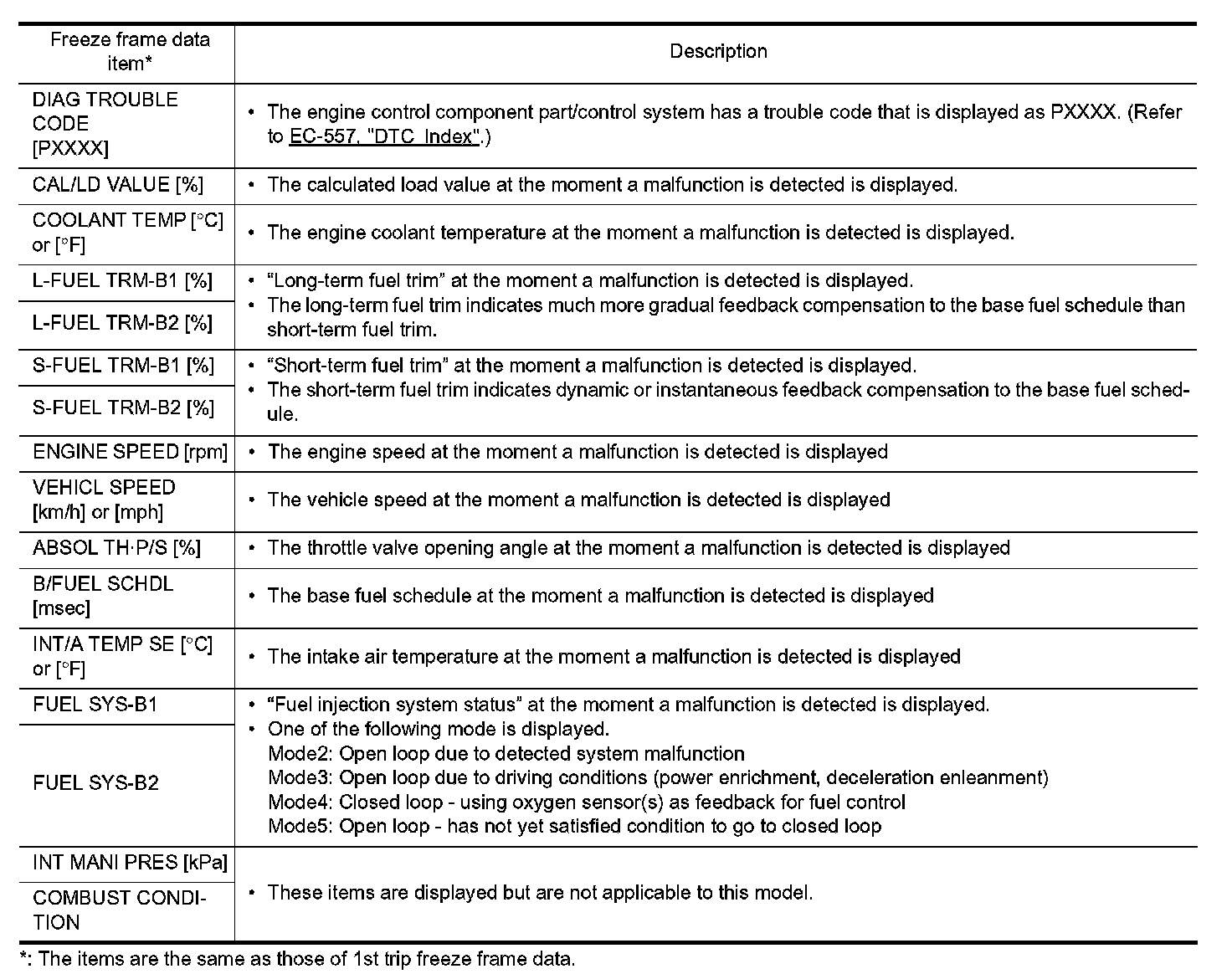

Freeze Frame Data and 1st Trip Freeze Frame Data

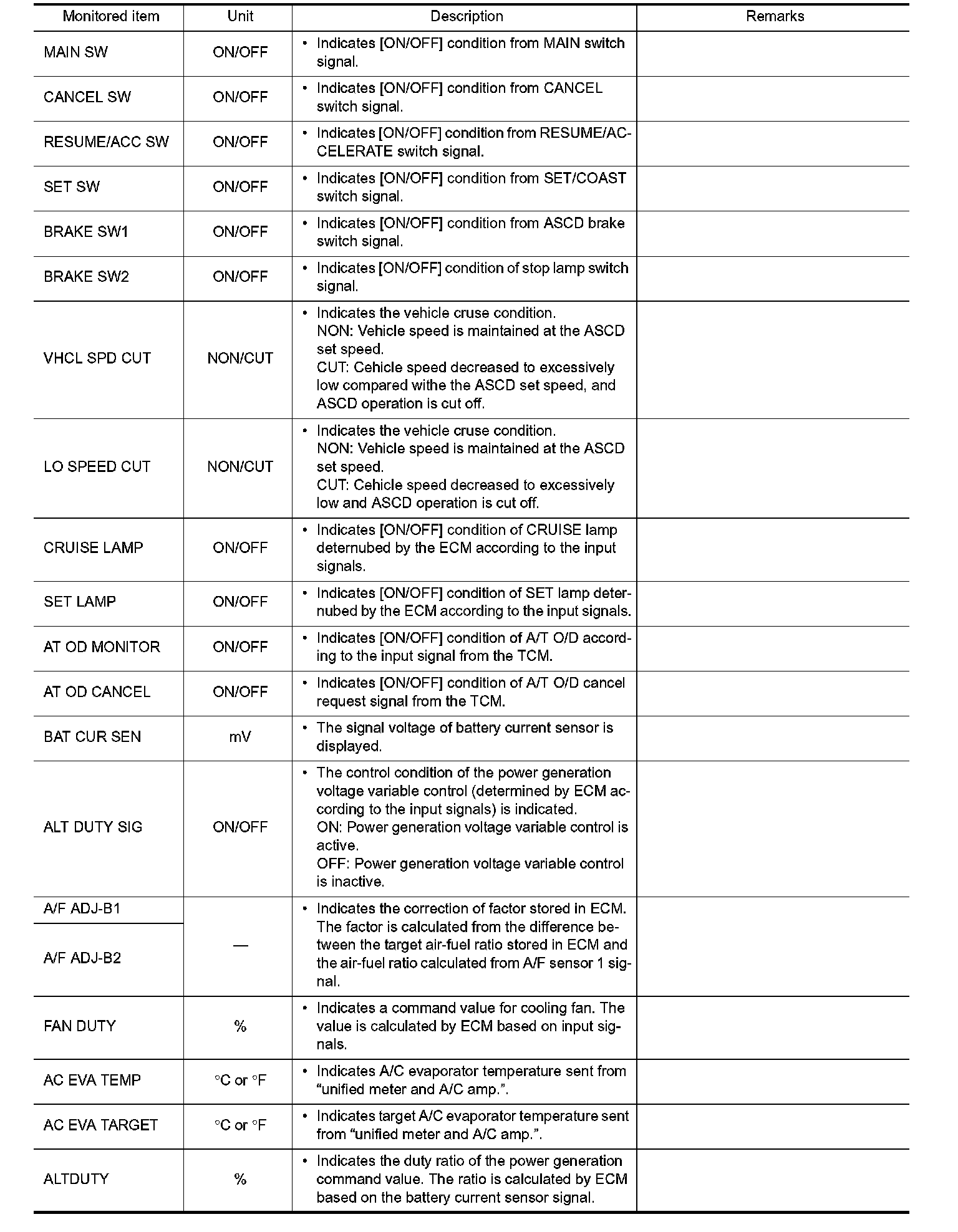

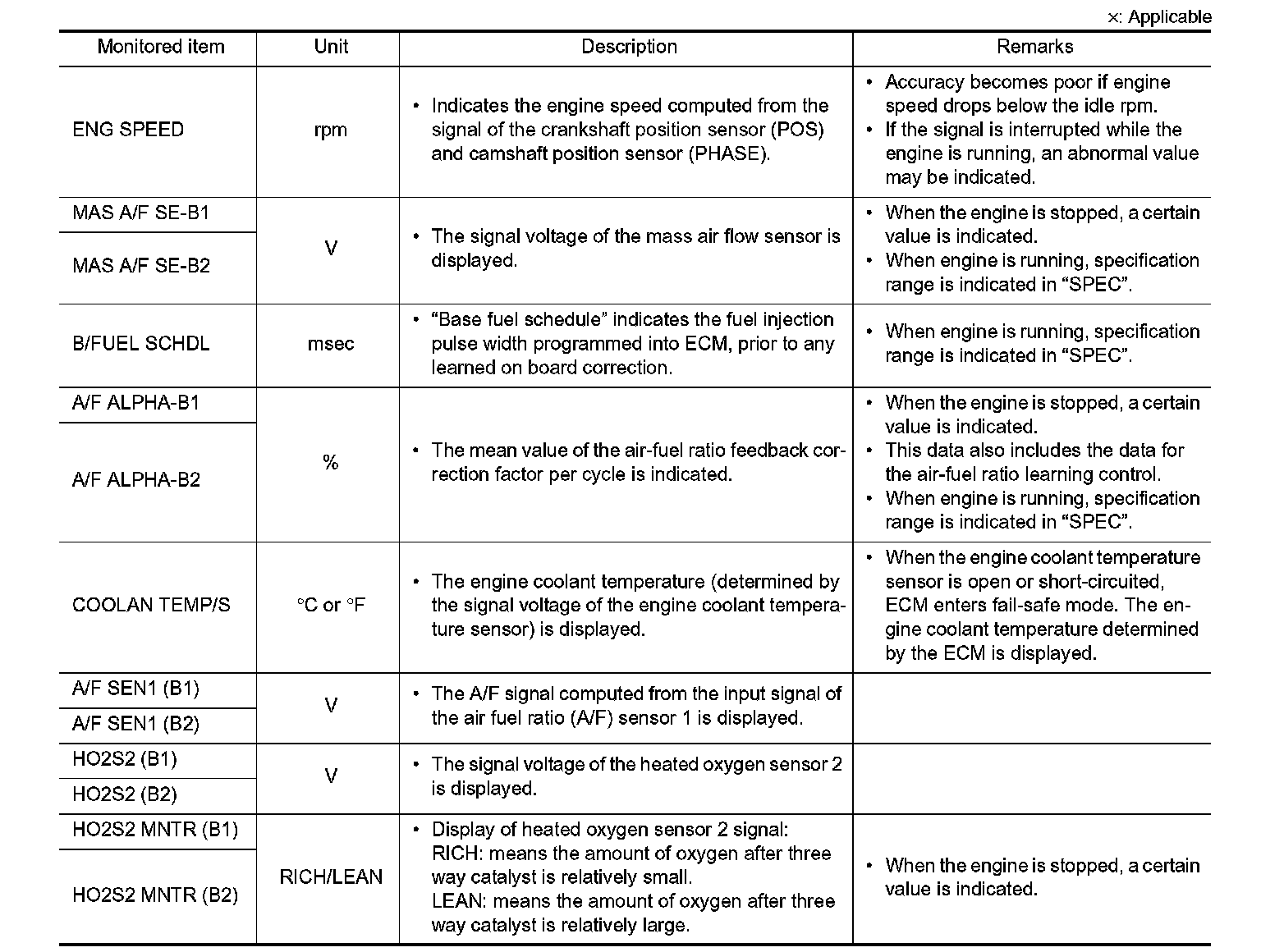

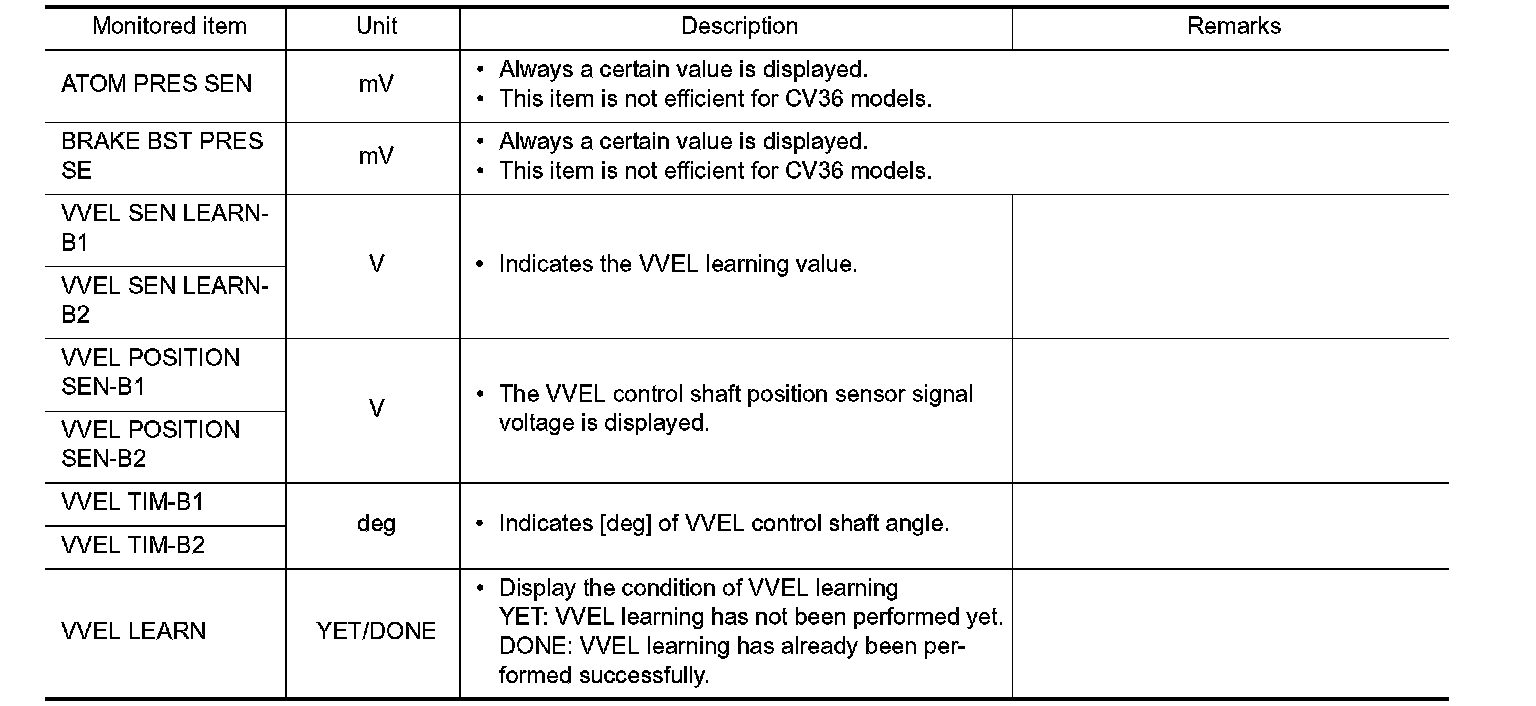

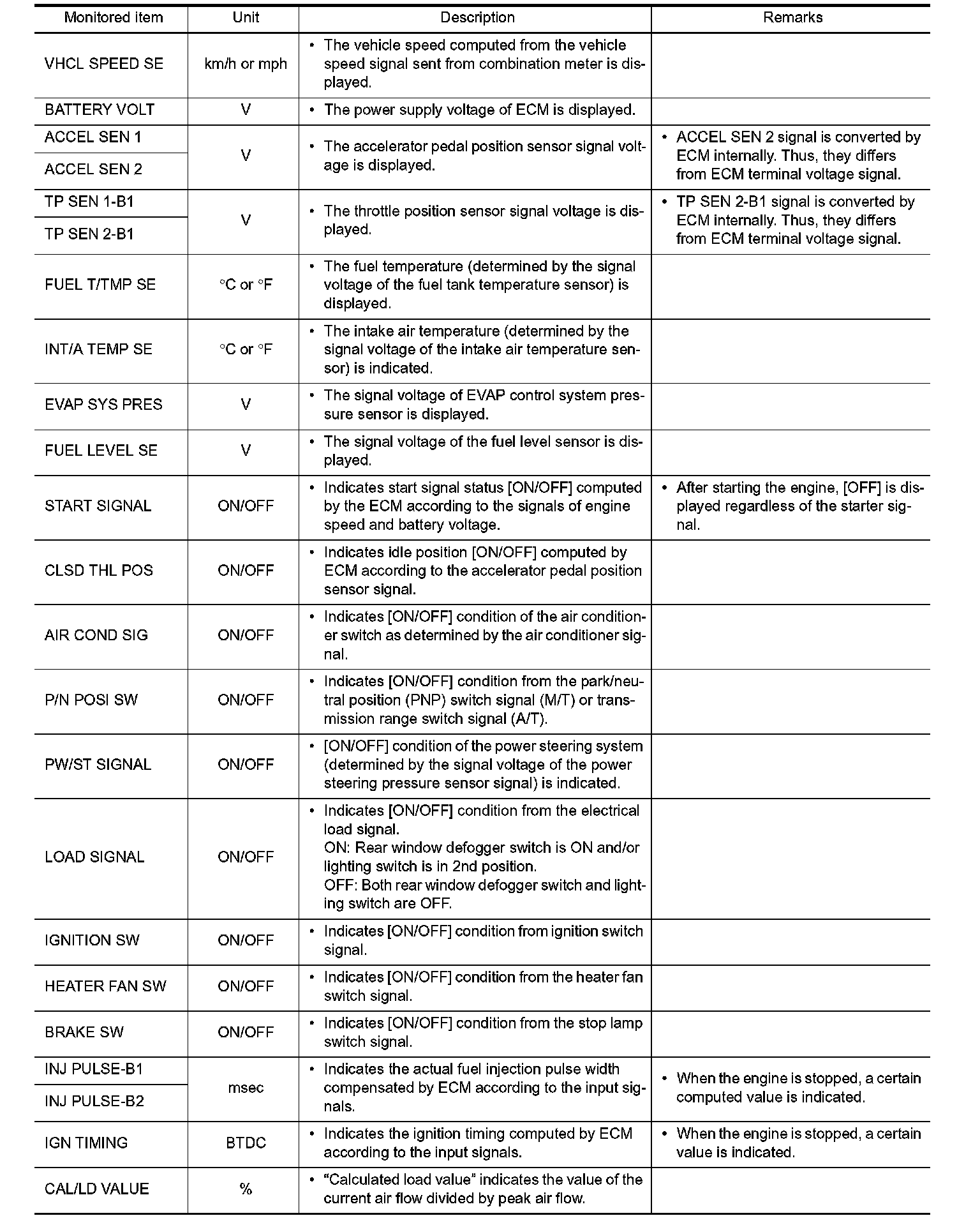

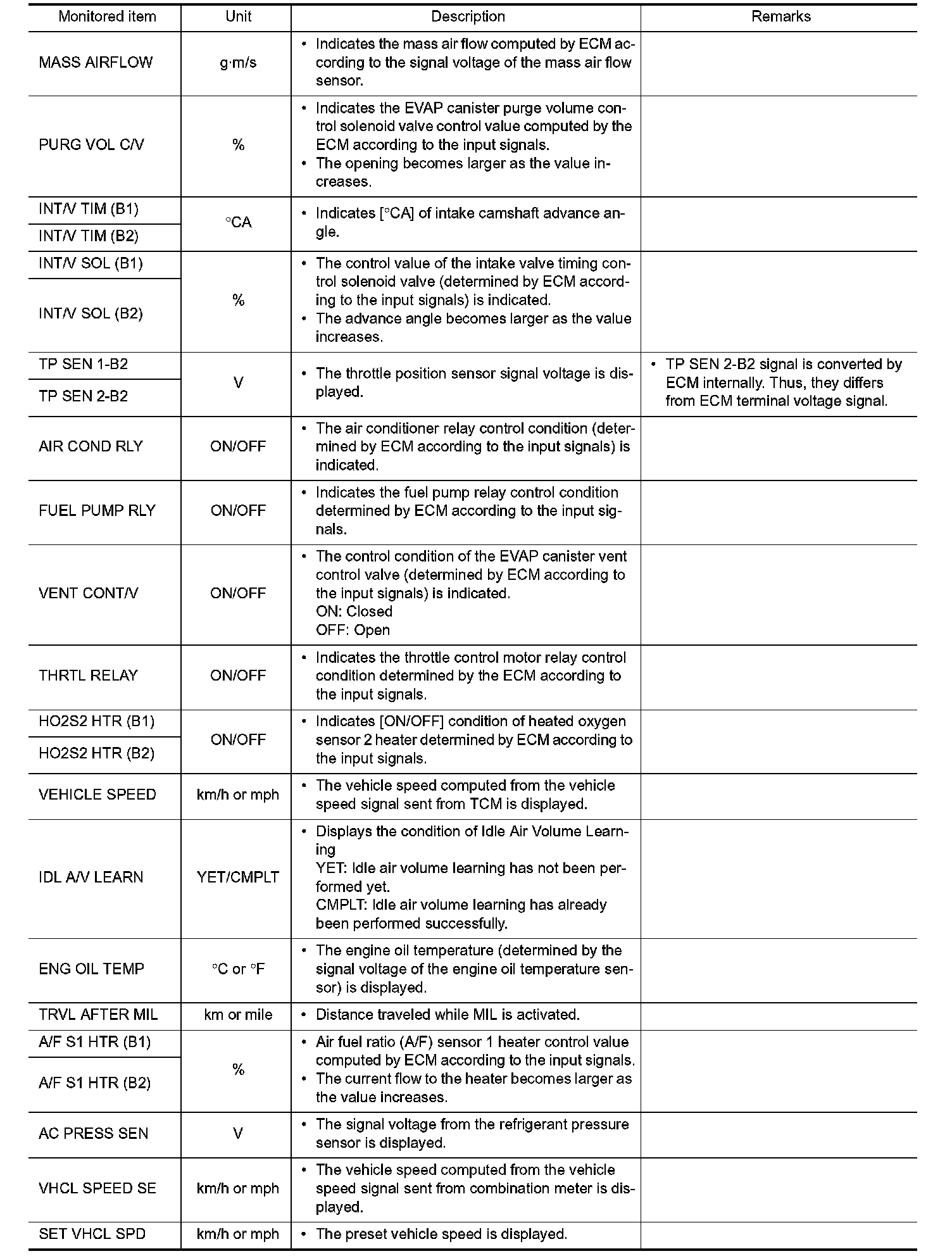

DATA MONITOR MODE

Monitored Item

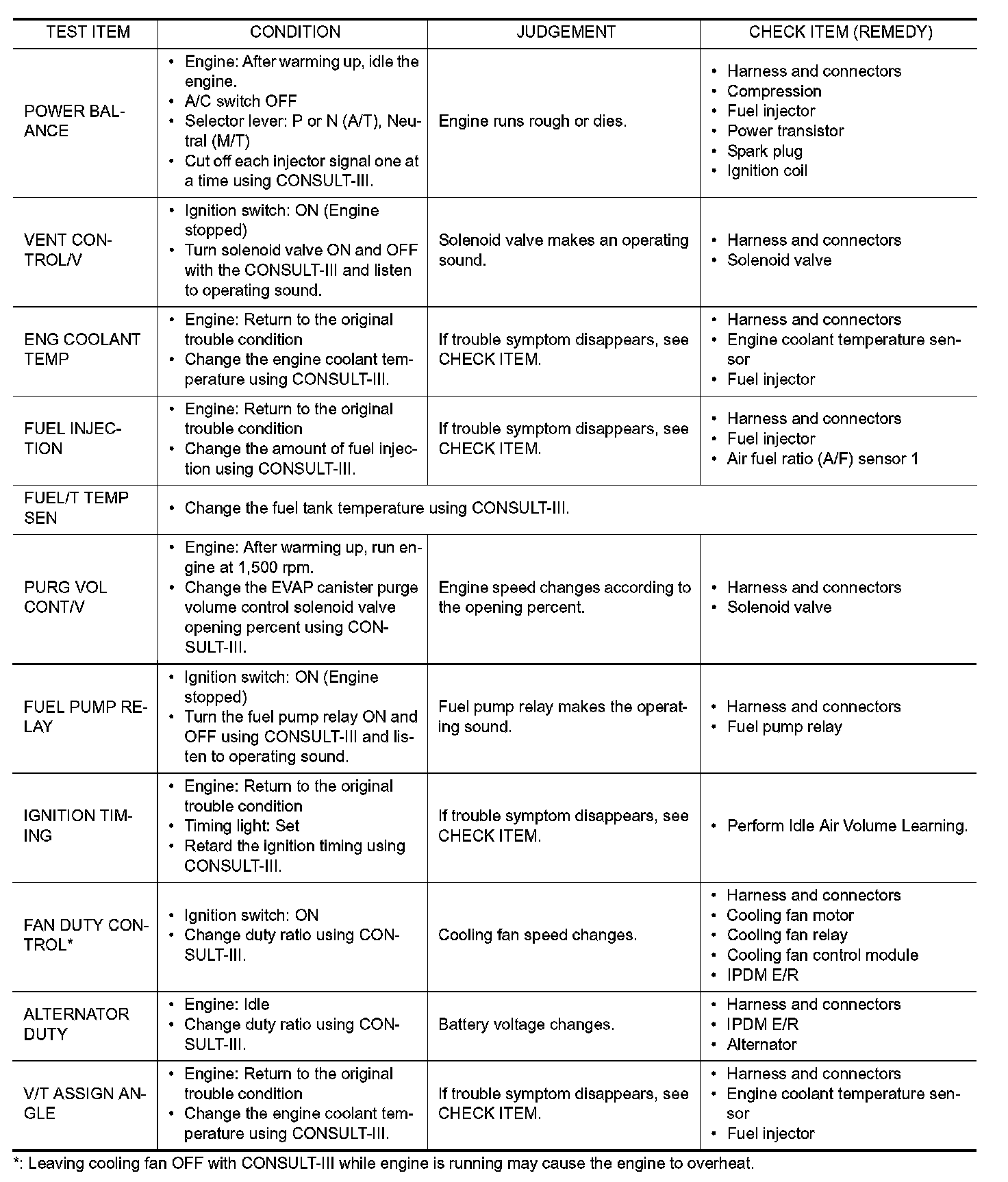

ACTIVE TEST MODE

Test Item






DTC and SRT CONFIRMATION MODE

SRT STATUS Mode
For details, refer to On Board Diagnostic (OBD) System Diagnosis Description.

SRT WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.

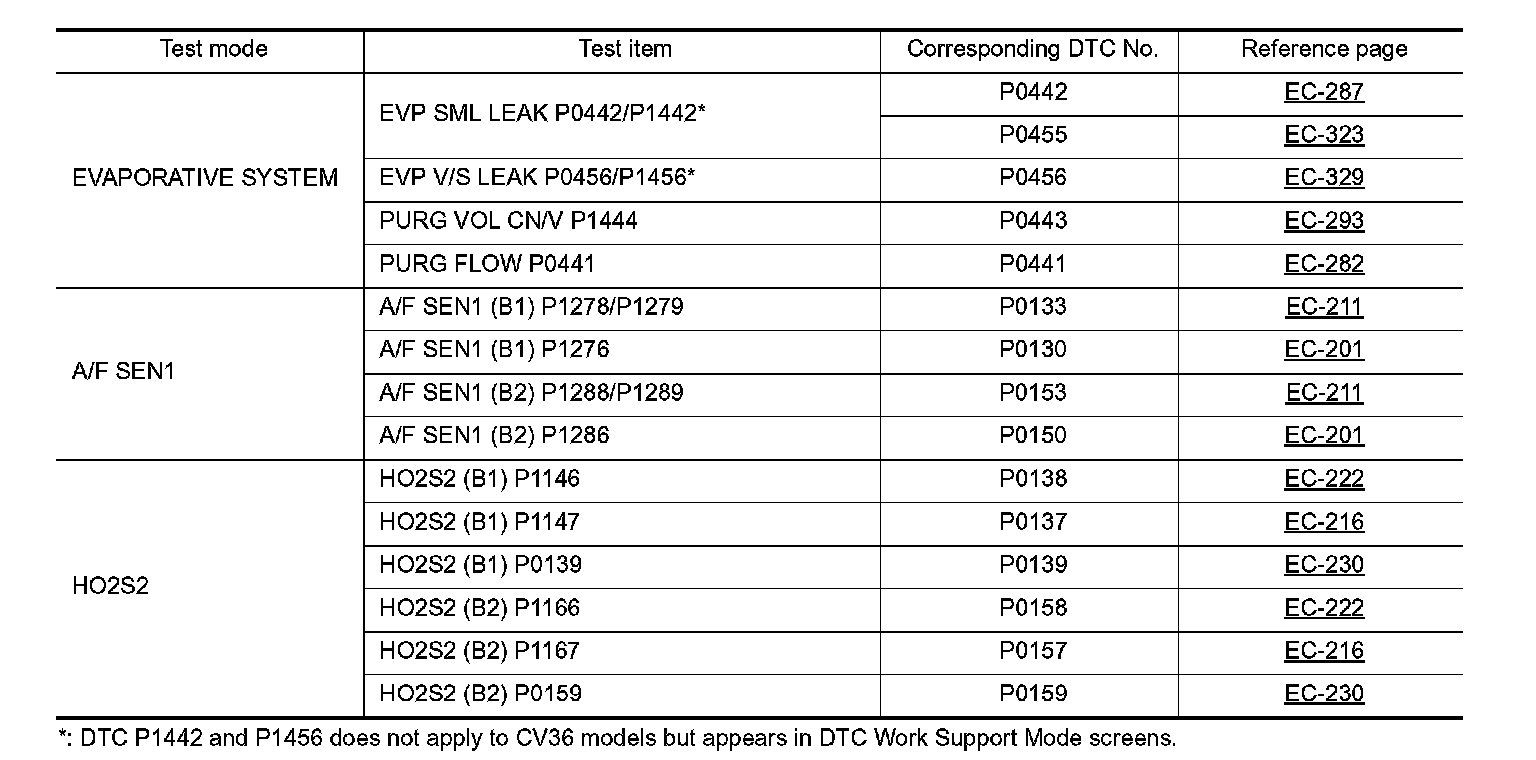

DTC WORK SUPPORT Mode
