Diagnostic Work Sheet

DIAGNOSIS AND REPAIR WORK FLOW


Diagnostic Work Sheet


DESCRIPTION
There are many operating conditions that lead to the malfunction of engine components. A good grasp of such conditions can make troubleshooting faster and more accurate.





In general, each customer feels differently about an incident. It is important to fully understand the symptoms or conditions for a customer complaint.

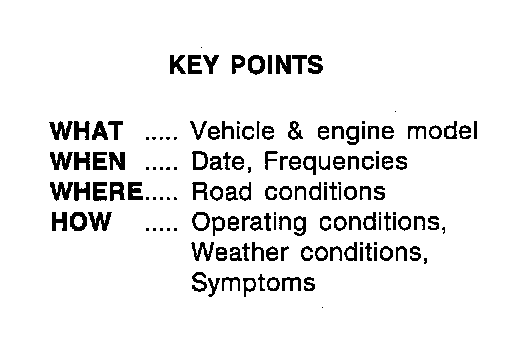

Utilize a diagnostic worksheet like the WORKSHEET SAMPLE below in order to organize all the information for troubleshooting.
Some conditions may cause the MIL to illuminate steady or blink and
DTC to be detected. Examples:
- Vehicle ran out of fuel, which caused the engine to misfire.
- Fuel filler cap was left off or incorrectly screwed on, allowing fuel to evaporate into the atmosphere.

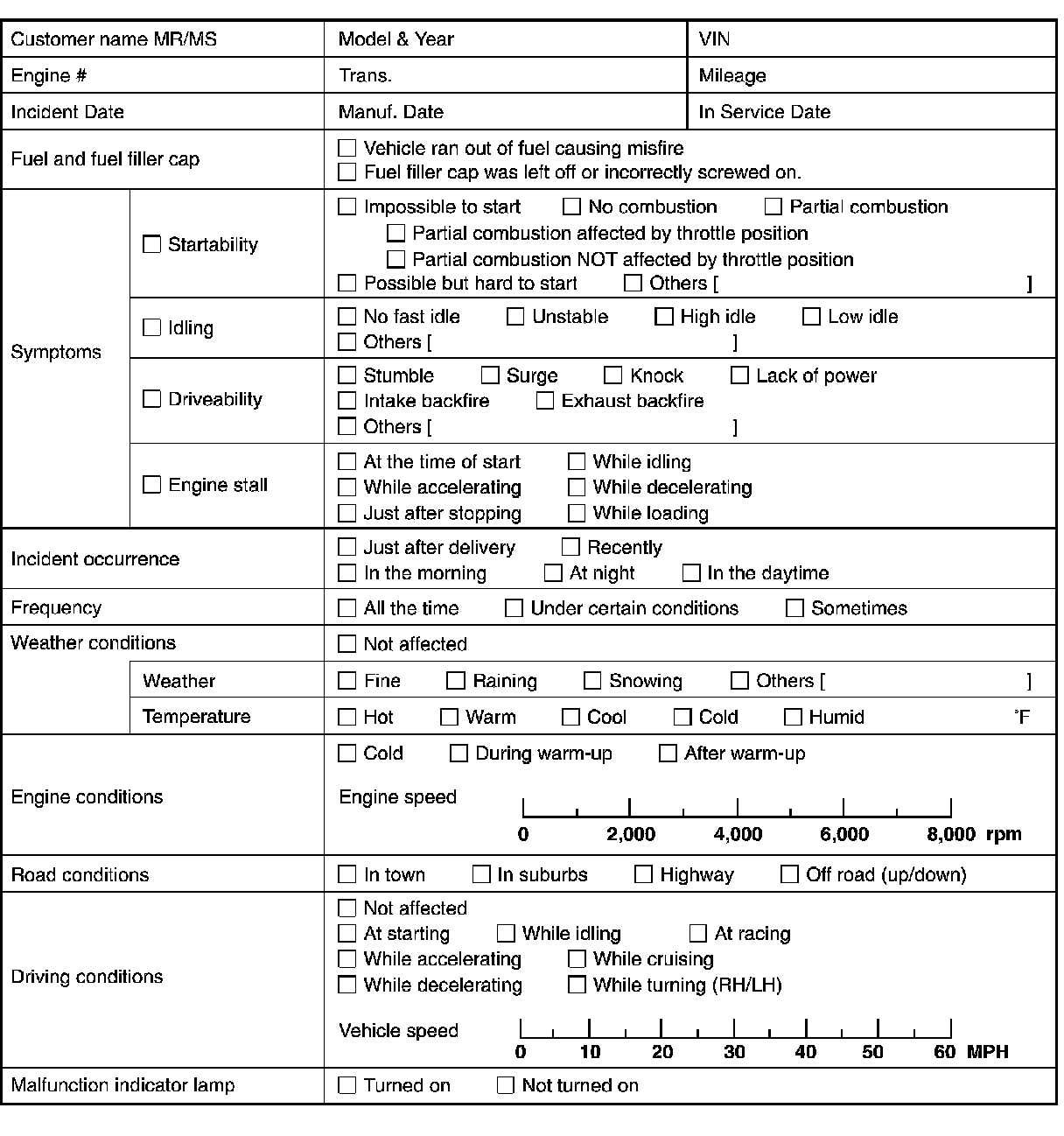

WORKSHEET SAMPLE
