Automatic Speed Control Device (ASCD)





AUTOMATIC SPEED CONTROL DEVICE (ASCD)

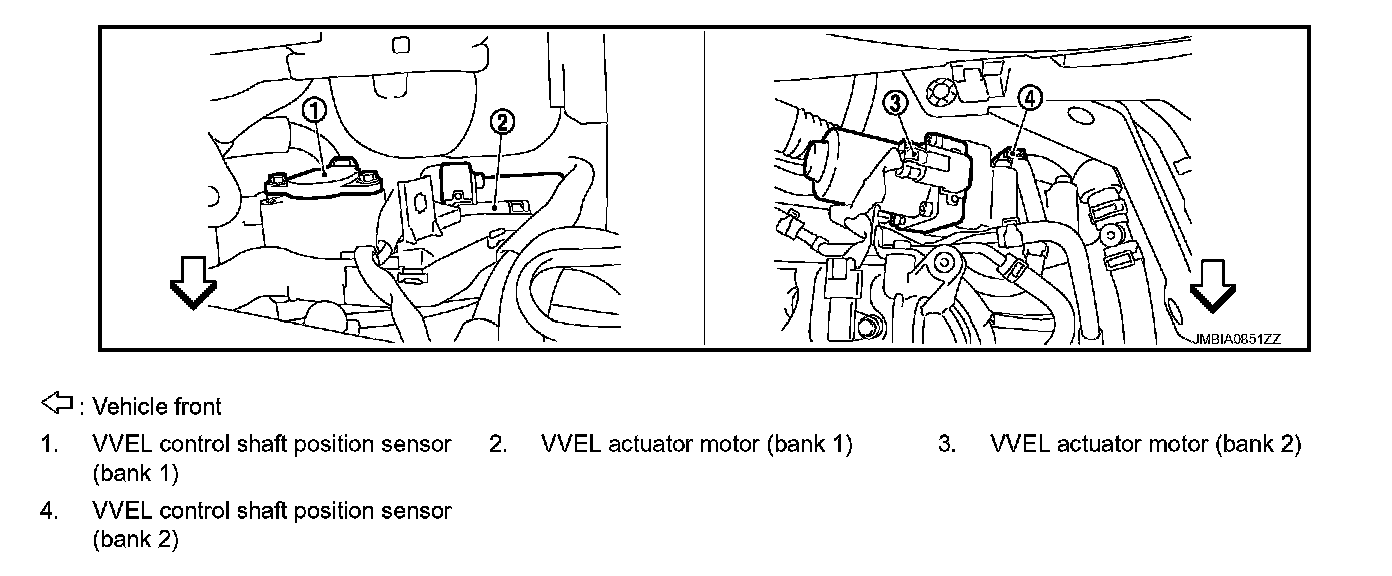

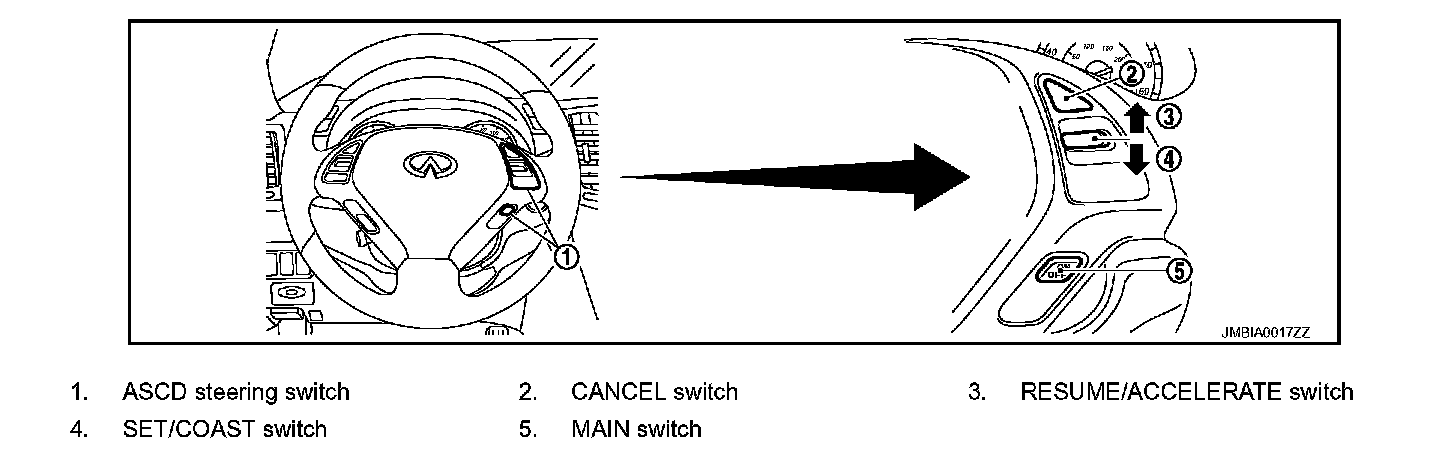

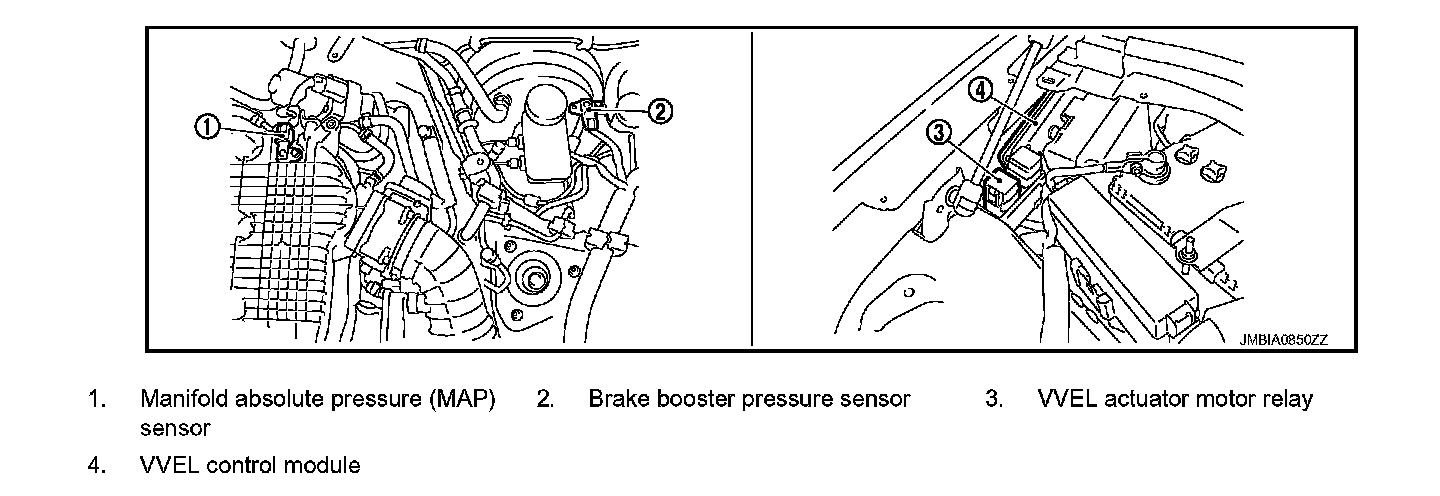

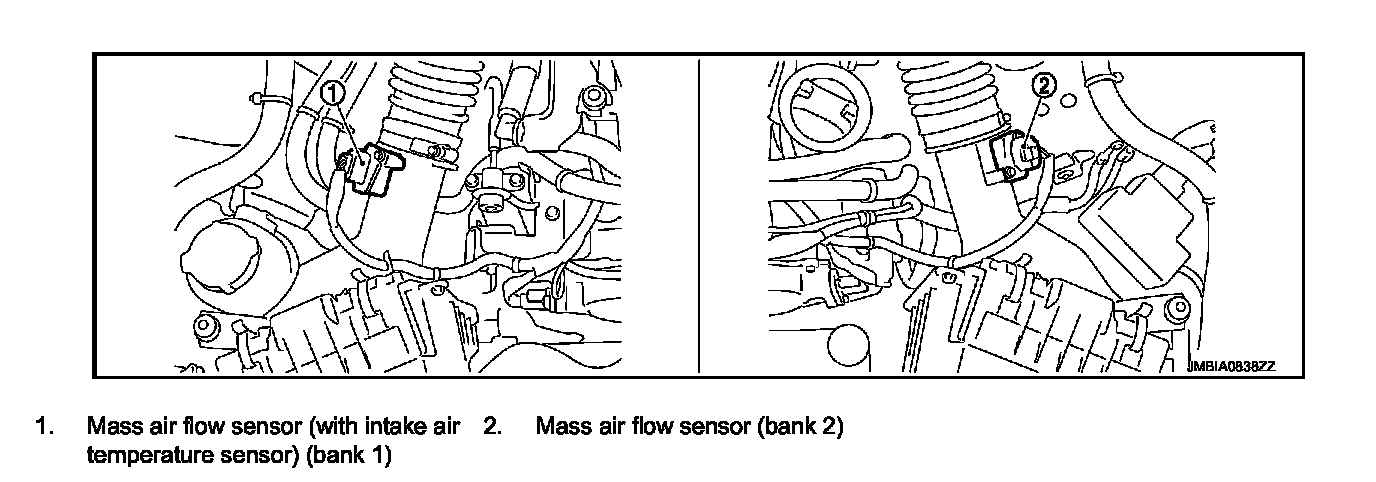

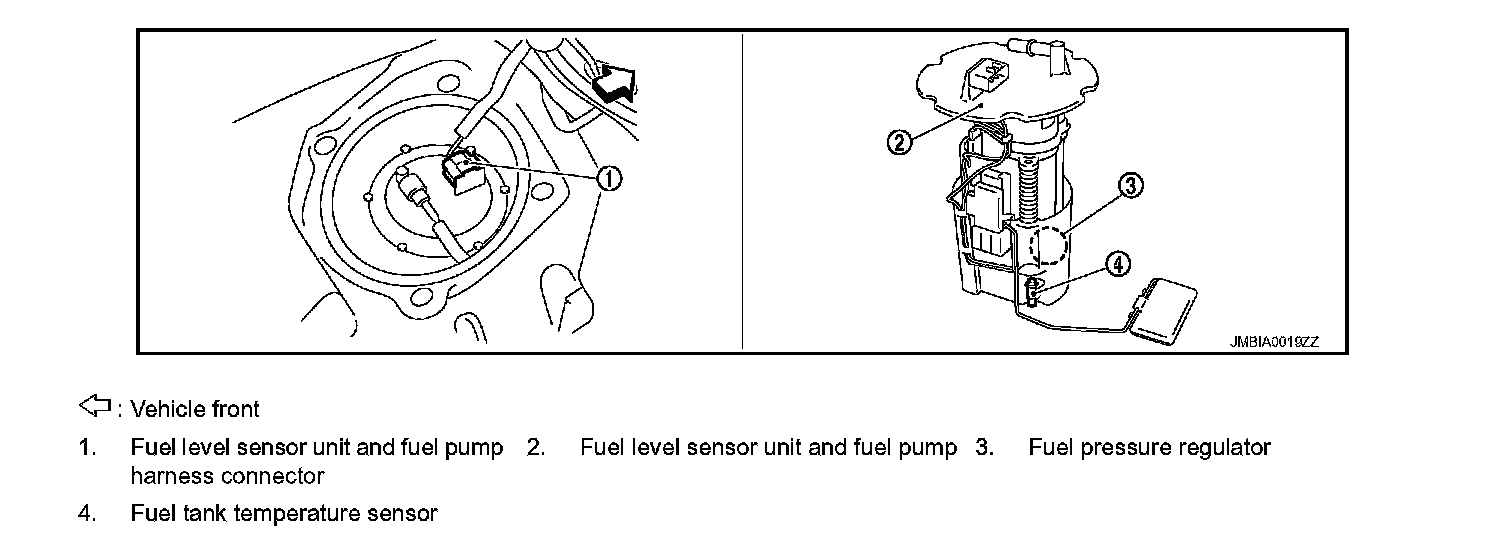

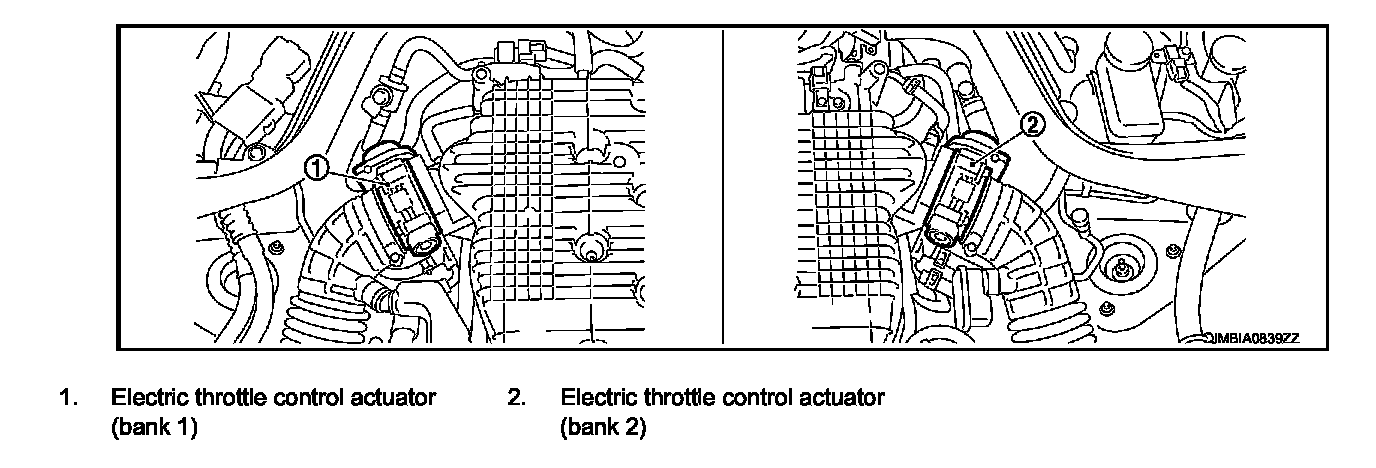

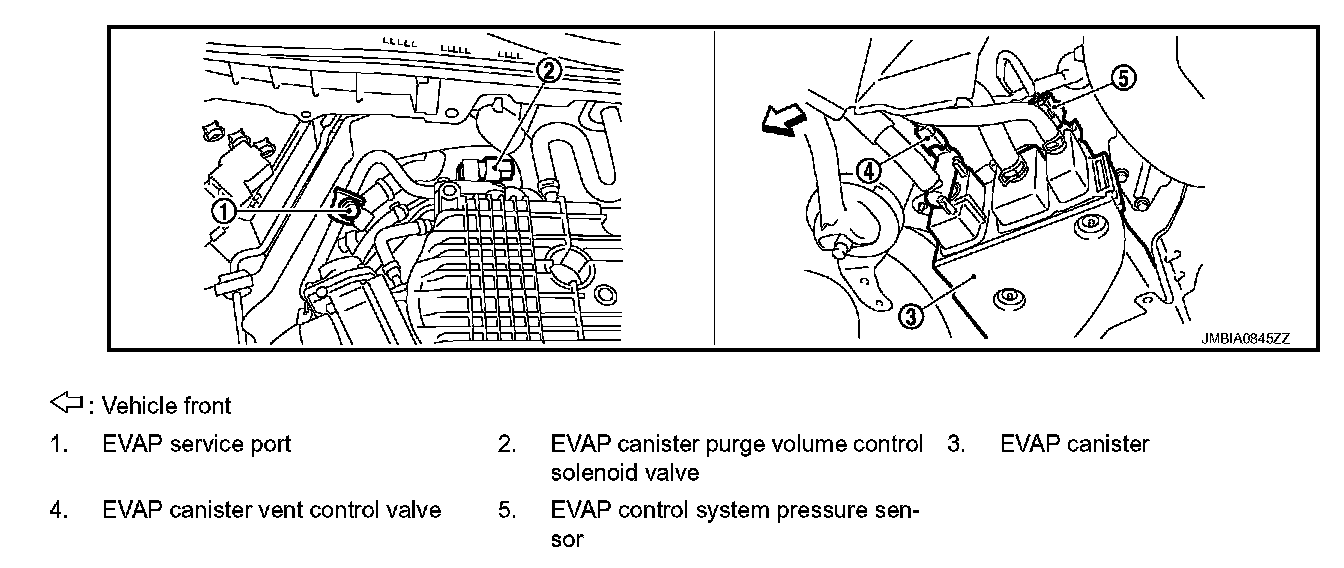

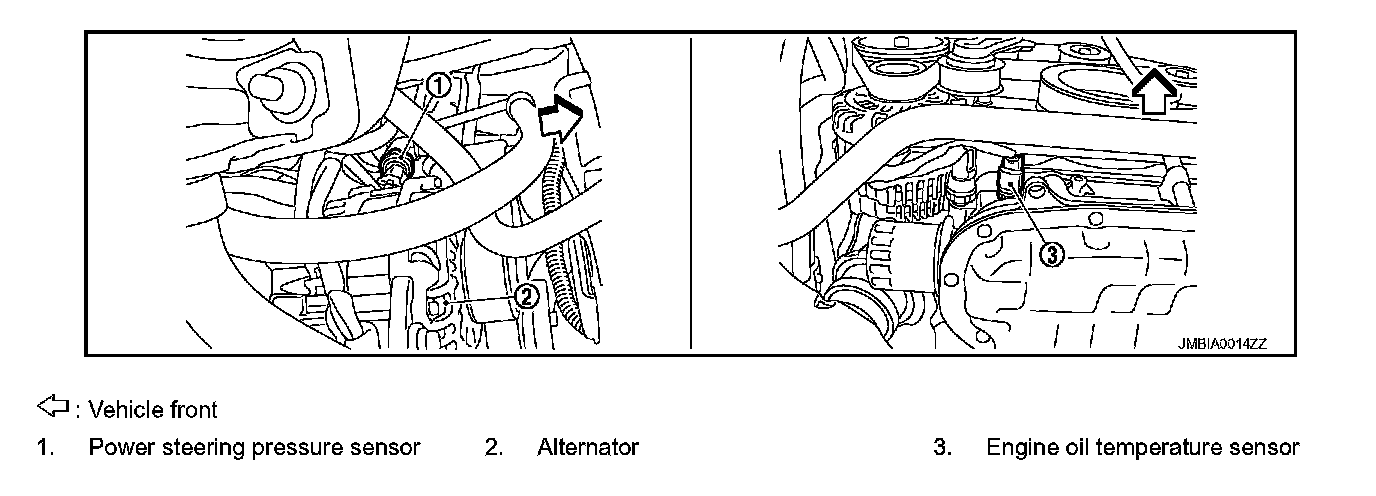

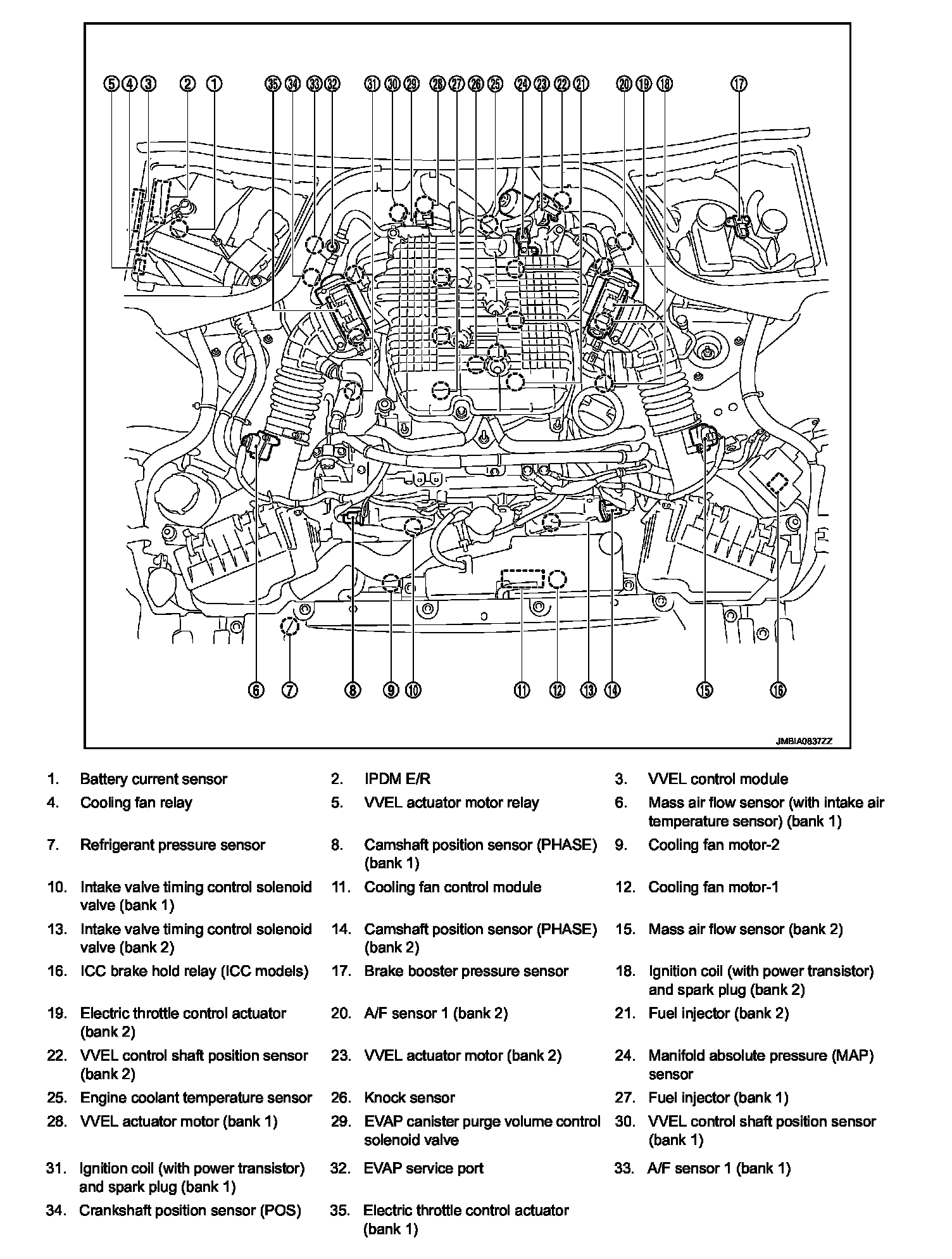

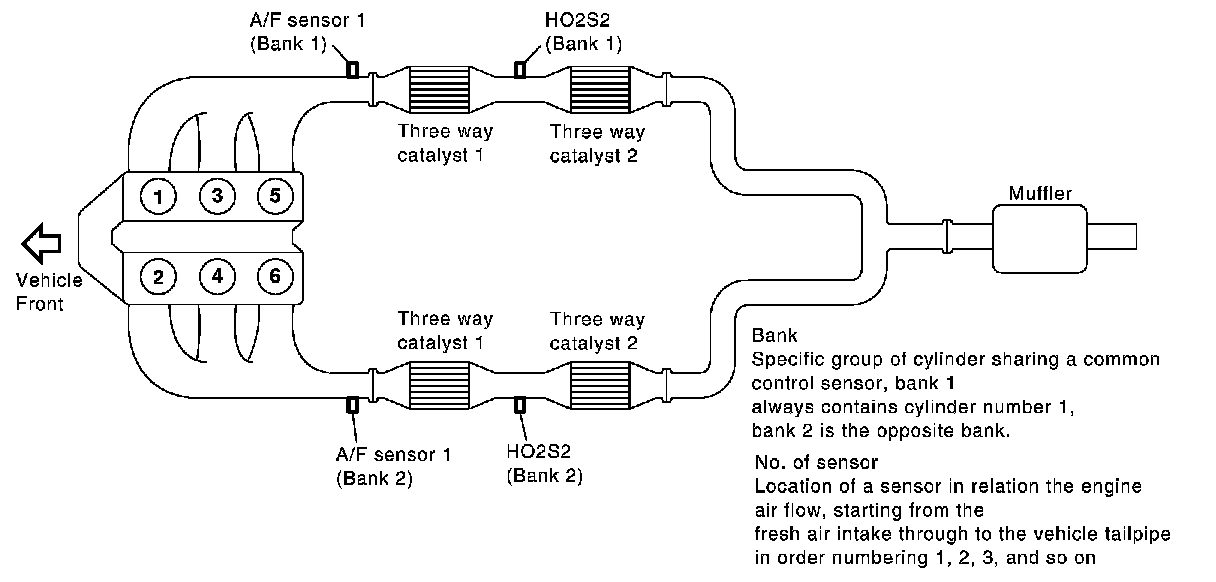

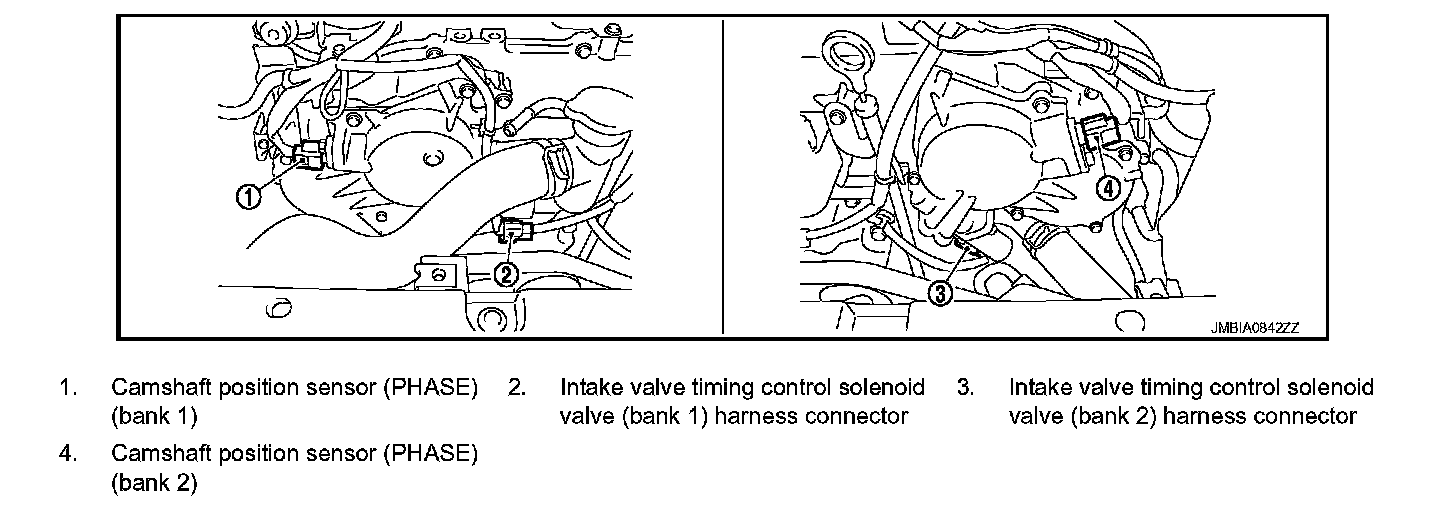

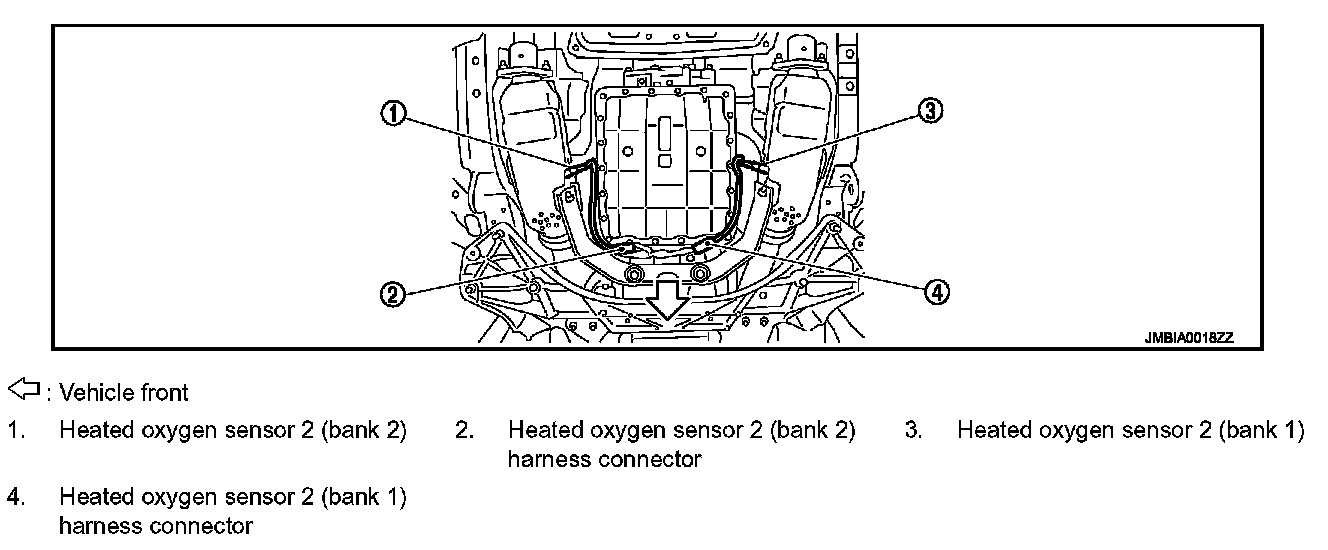

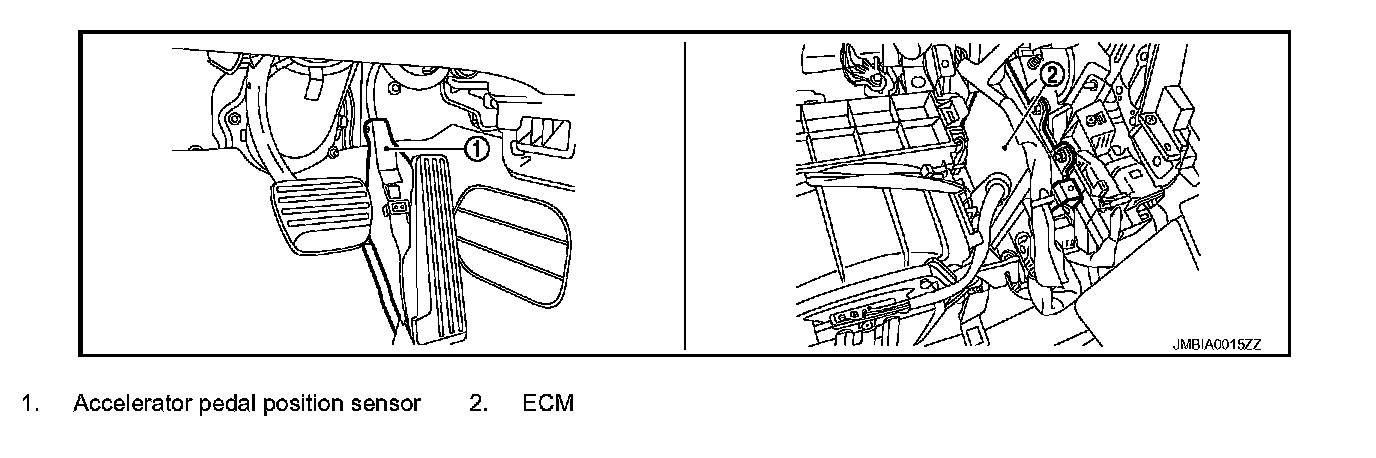

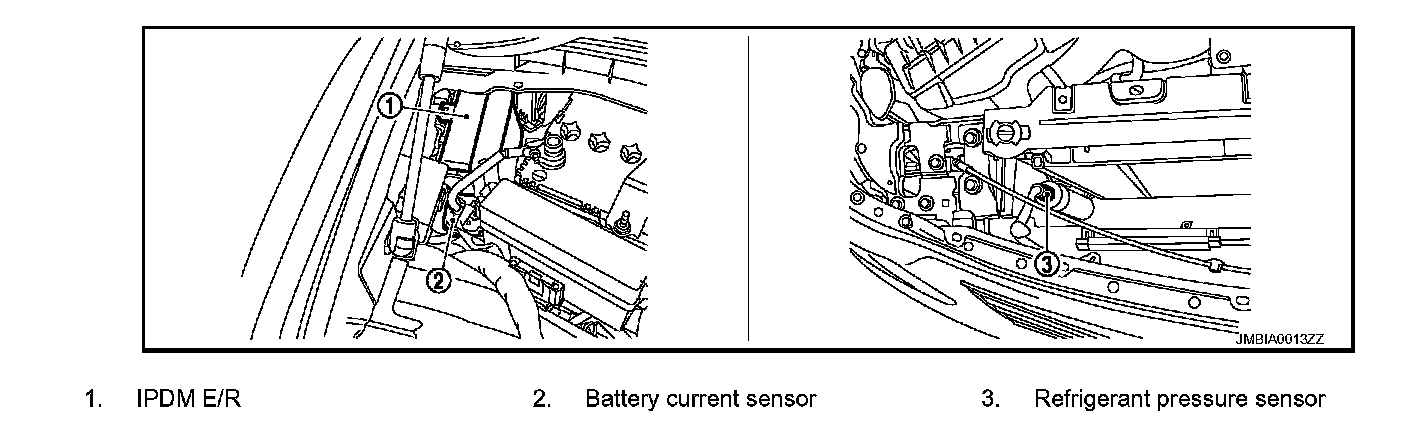

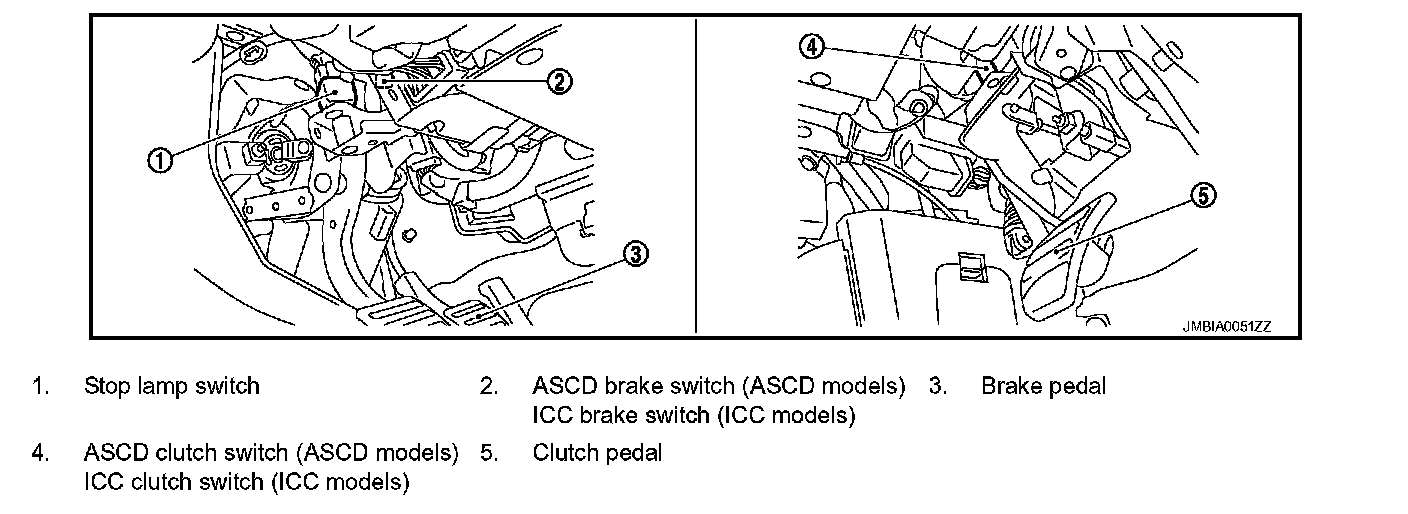

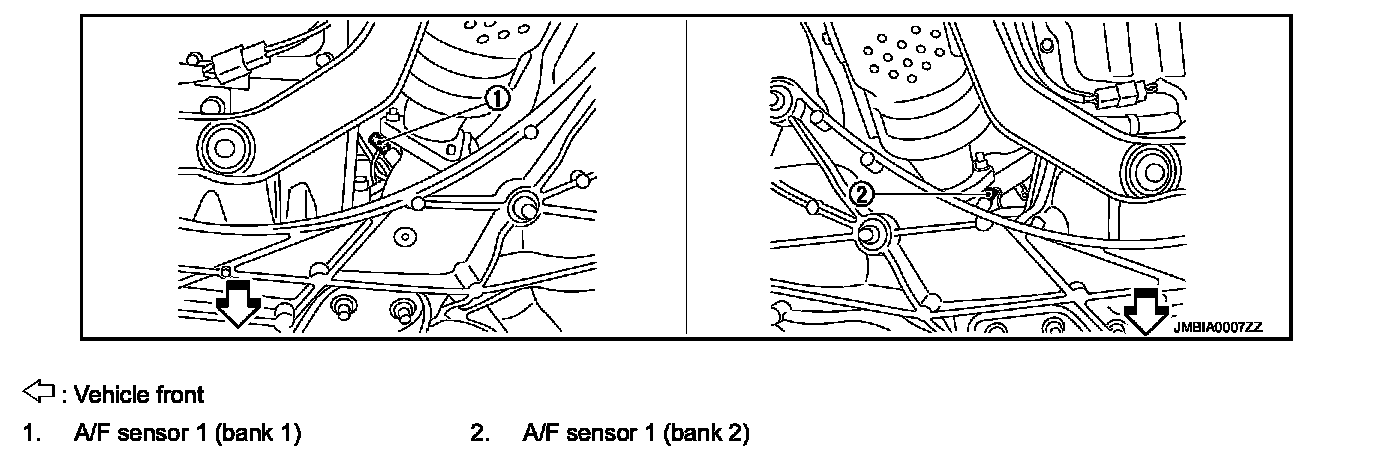

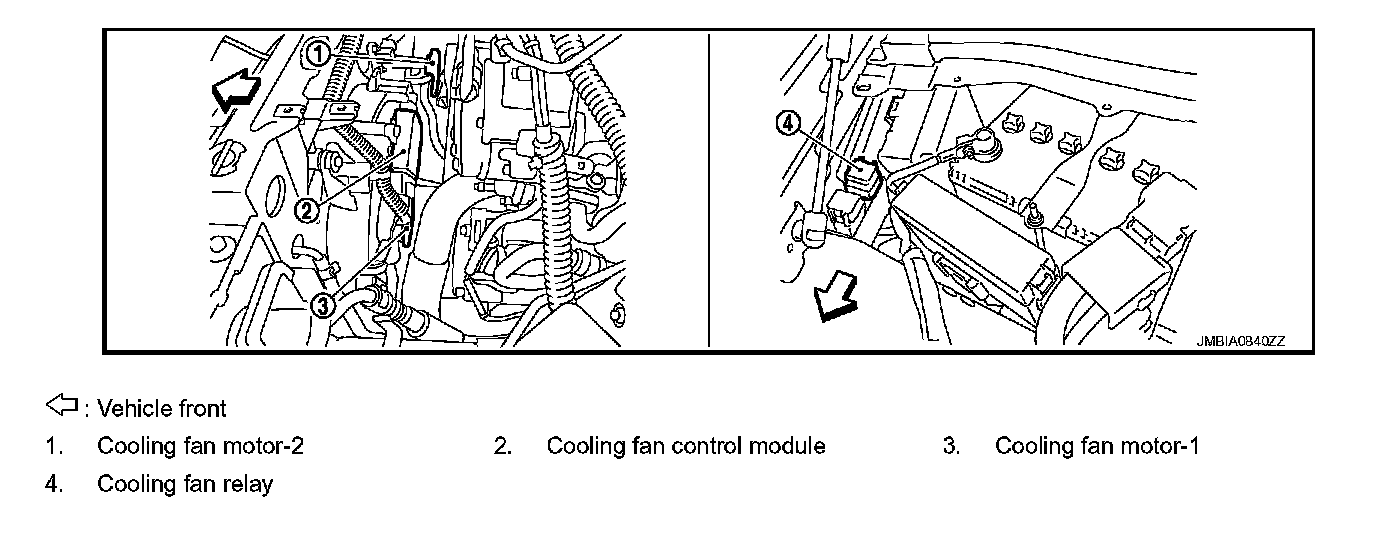

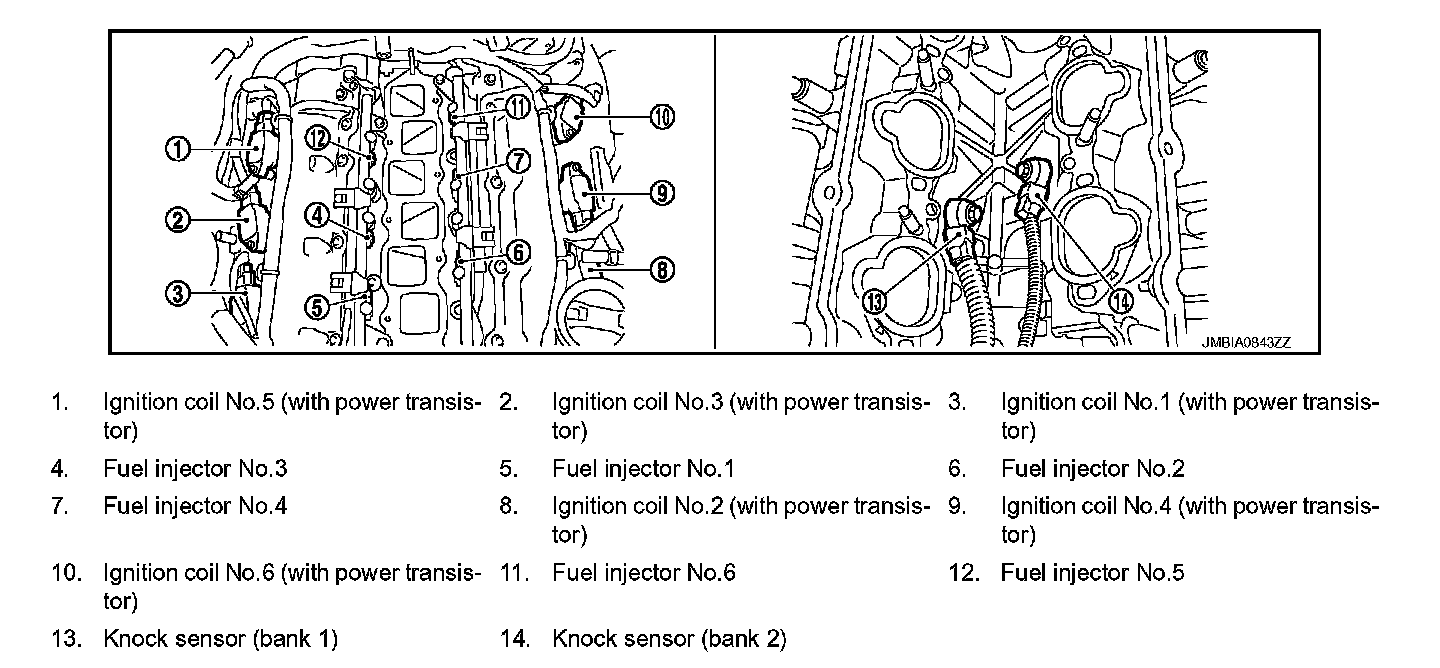

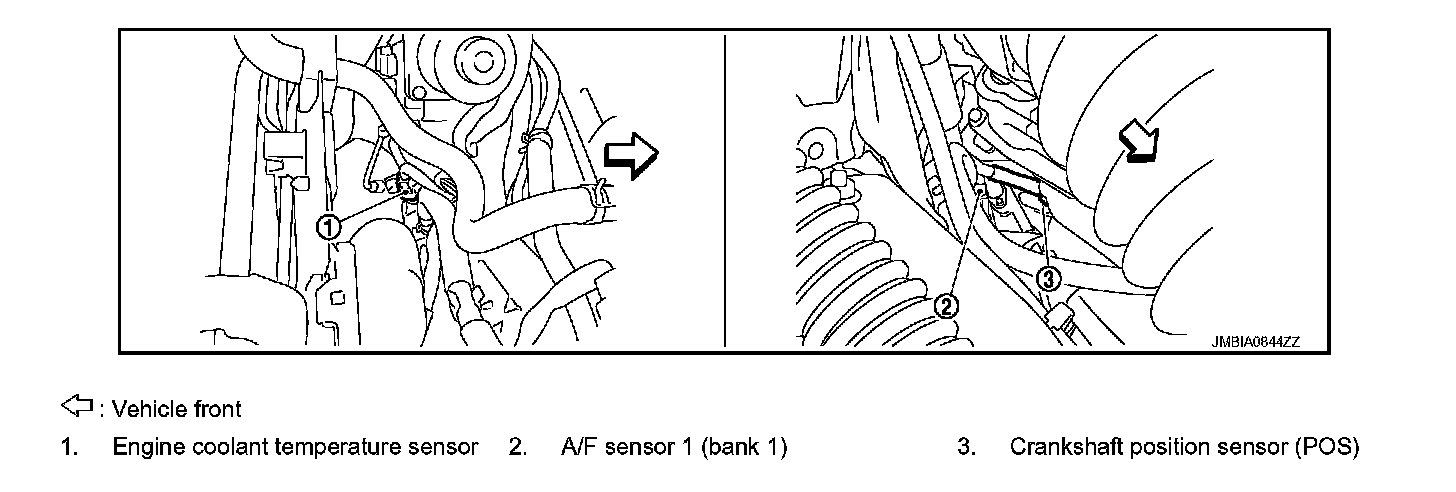

Component Parts Location
