Initial Inspection and Diagnostic Overview
>>
CAN Fundamental
>>
Self-Diagnosis
Self-Diagnosis

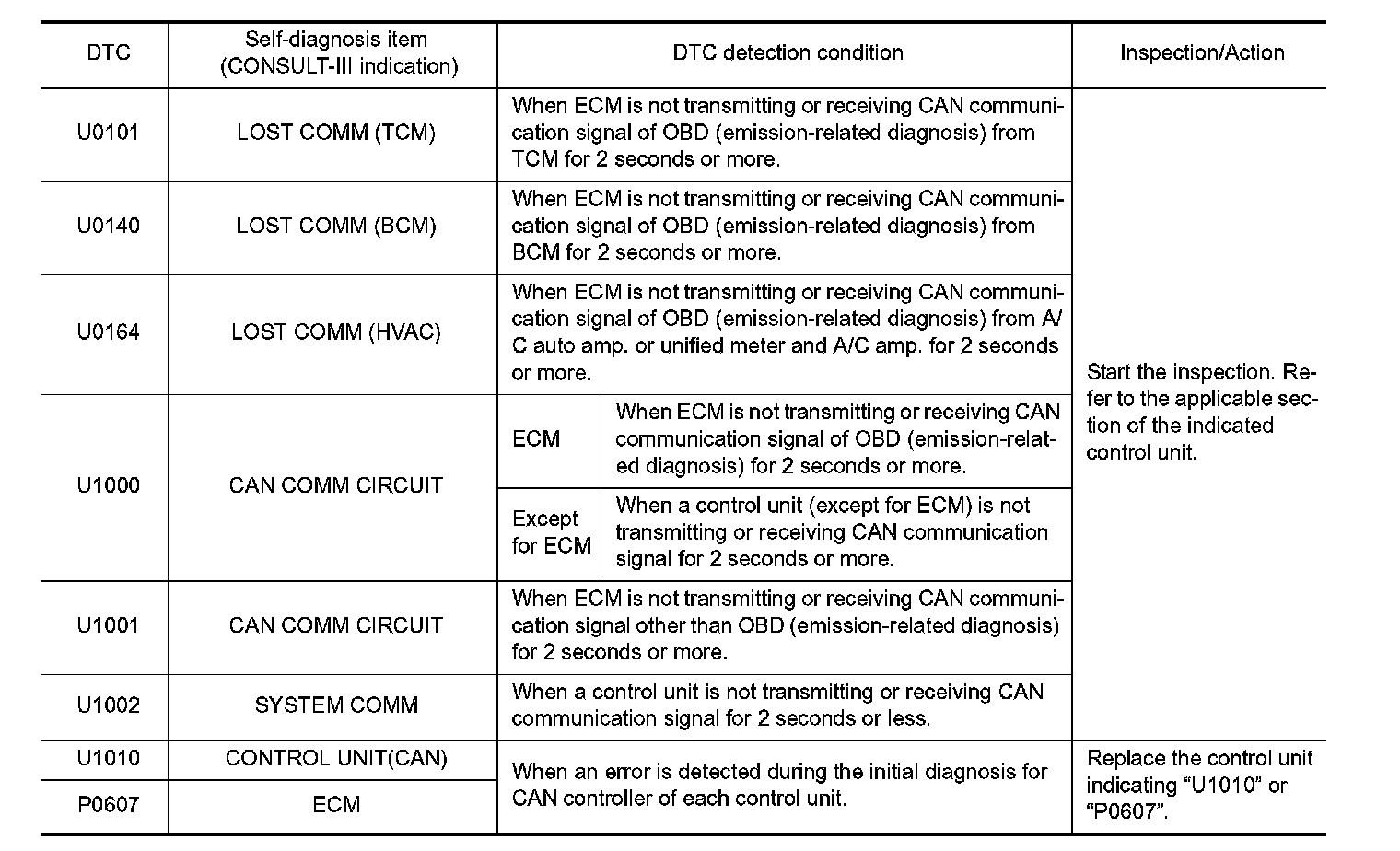

TROUBLE DIAGNOSIS
Self-Diagnosis
