CAN

AFS BRANCH LINE CIRCUIT


Diagnosis Procedure

1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check the terminals and connectors of the AFS control unit for damage, bend and loose connection (unit side and connector side).
Is the inspection result normal?
YES - GO TO 2.
NO - Repair the terminal and connector.
2.CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect the connector of AFS control unit.

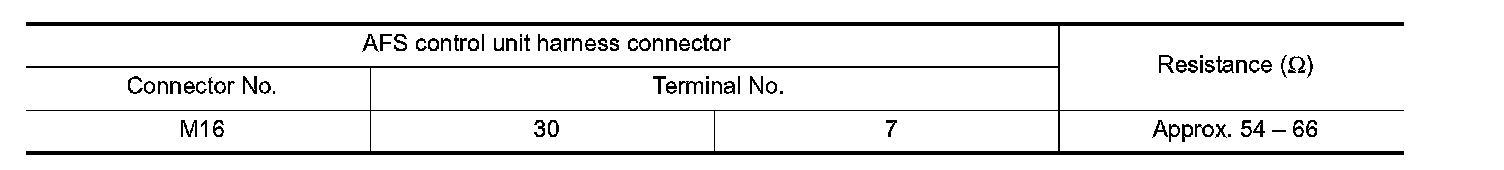

2. Check the resistance between the AFS control unit harness connector terminals.





Is the measurement value within the specification?
YES - GO TO 3.
NO - Repair the AFS control unit branch line.
3.CHECK POWER SUPPLY AND GROUND CIRCUIT
Check the power supply and the ground circuit of the AFS control unit. Refer to Component Tests and General Diagnostics, "AFS CONTROL UNIT : Diagnosis Procedure".
Is the inspection result normal?
YES (Present error)-Replace the AFS control unit. Refer to Exploded View.
YES (Past error)-Error was detected in the AFS control unit branch line.
NO - Repair the power supply and the ground circuit.
