Component Function Check

PUSH-BUTTON IGNITION SWITCH


Component Function Check

1.CHECK FUNCTION
1. Select "PUSH SW" in "Data Monitor" mode with CONSULT-III.

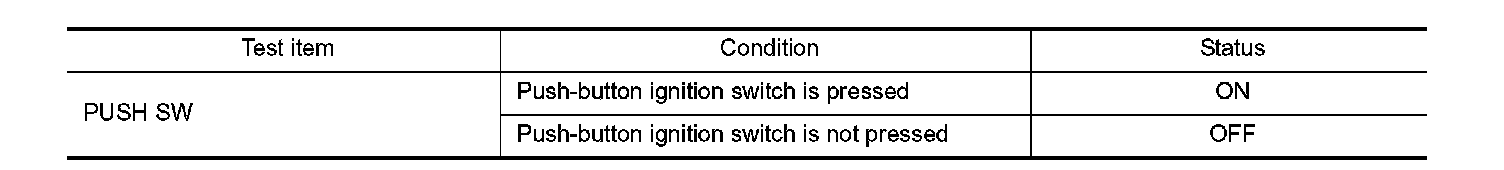

2. Check the push-button ignition switch signal under the following conditions.





Is the indication normal?
YES - INSPECTION END.
NO - Go to Diagnosis Procedure.
