Removal and Installation

POWER SOCKET


Removal and Installation


REMOVAL

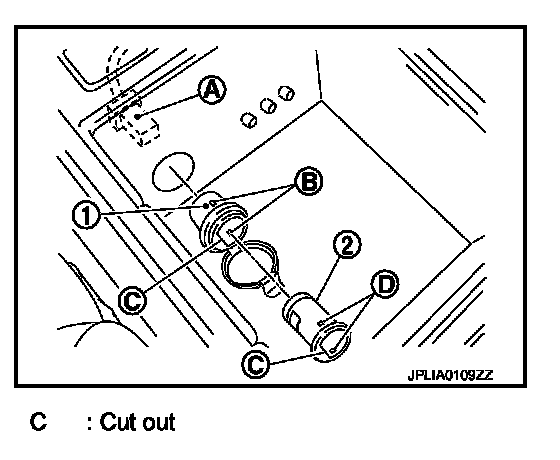

1. Remove rear upper console assembly (A/T models) or center console assembly (M/T models). Refer to Exploded View.





2. Disconnect power socket connector (A).
3. Pull out inner socket (2) by pushing the ring pawl (B) from the inner socket hole (square) (D).
4. Remove ring (1) from console box while pressing pawls.

INSTALLATION
Install in the reverse order of removal.

NOTE:
Align the cut outs of inner socket and ring.
