Cabin Air Filter / Purifier: Description and Operation

IONIZER


Description

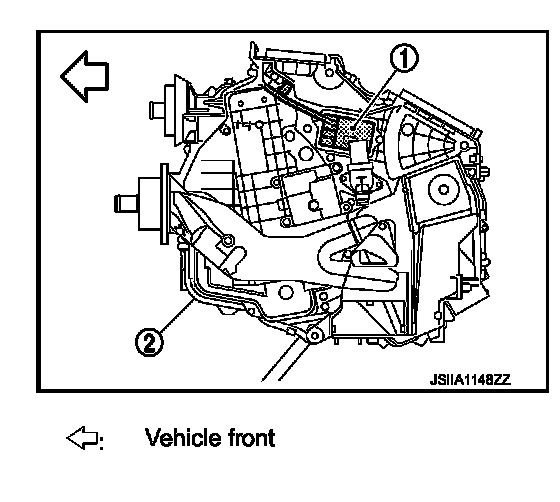

Ionizer (1) is attached to the heater and cooling unit assembly (2).

Ionizer has two types of operation mode and emits ions into the air
- Clean mode: Emits positive and negative ions at the same ratio.
- Ion control mode: Emits more negative ions.

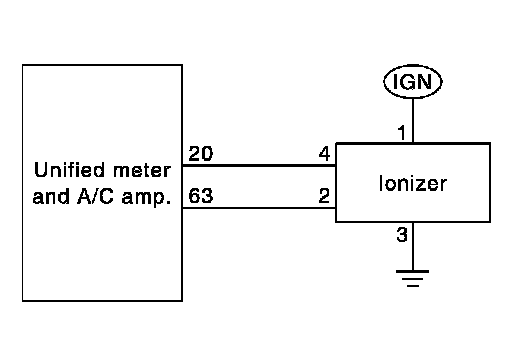

Ionizer circuit
