INT Lamp





DIAGNOSIS SYSTEM (BCM)


INT LAMP : CONSULT-III Function (BCM - INT LAMP)

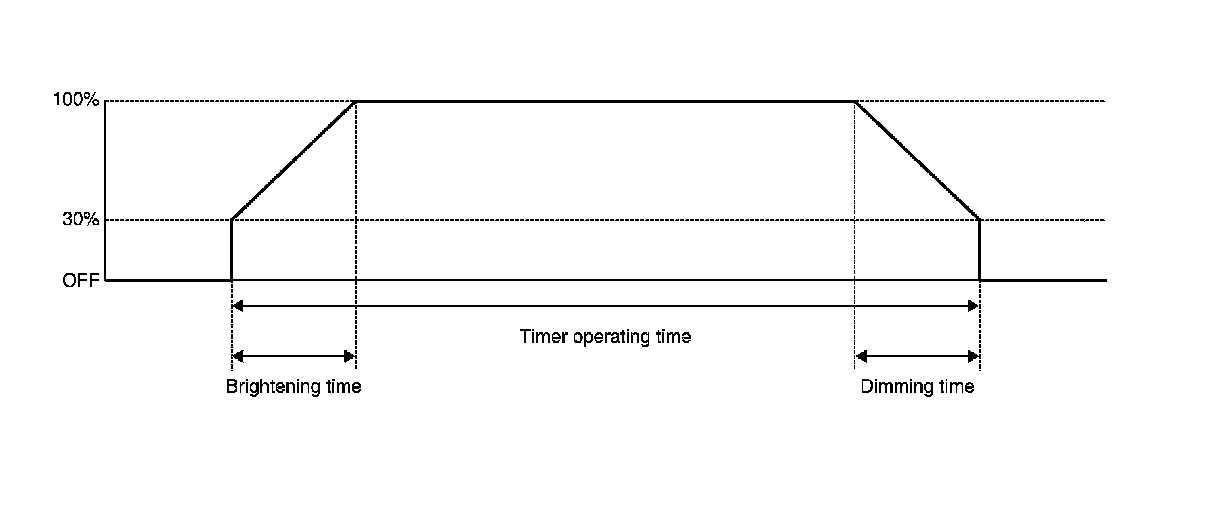

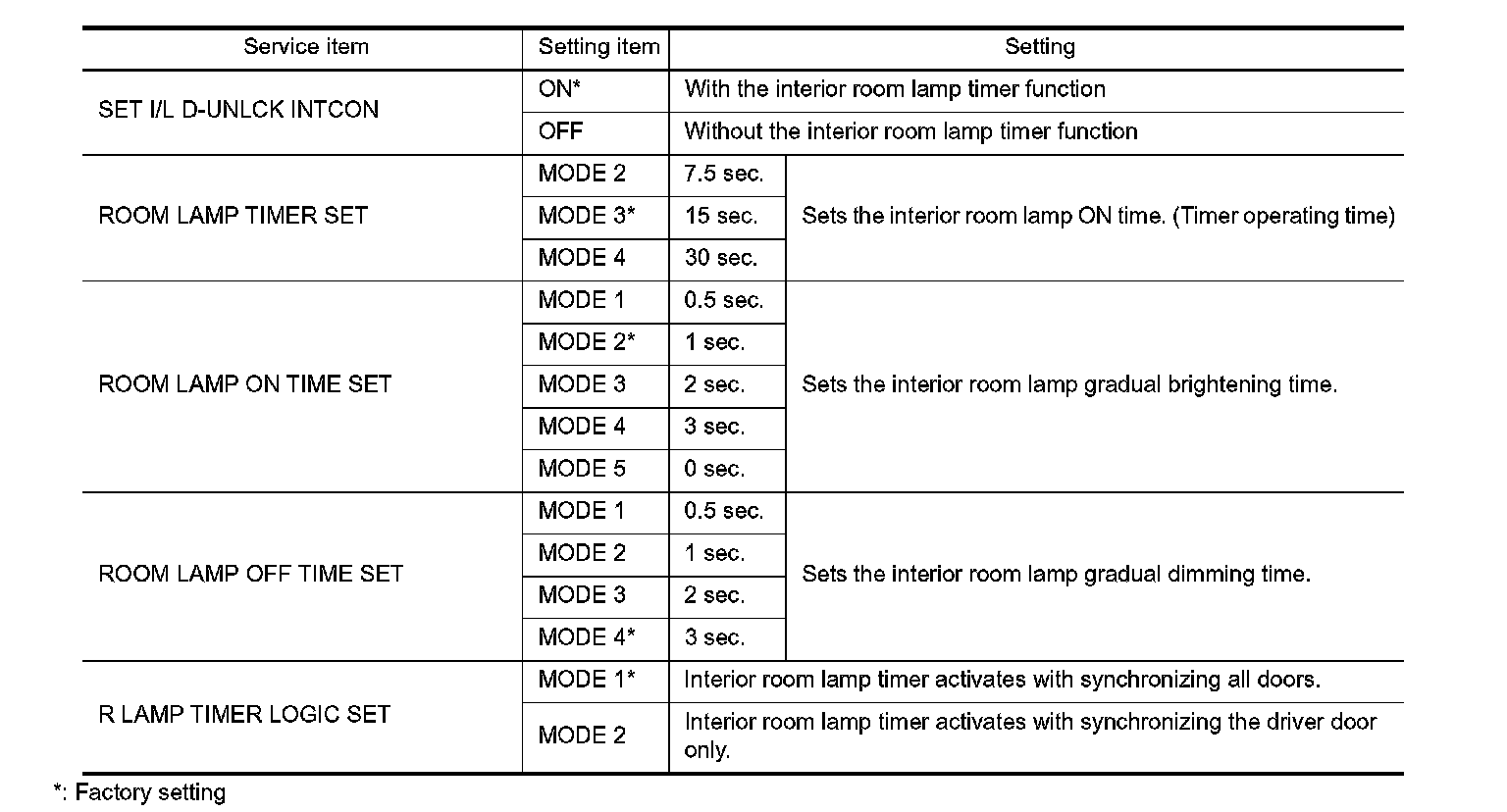

WORK SUPPORT

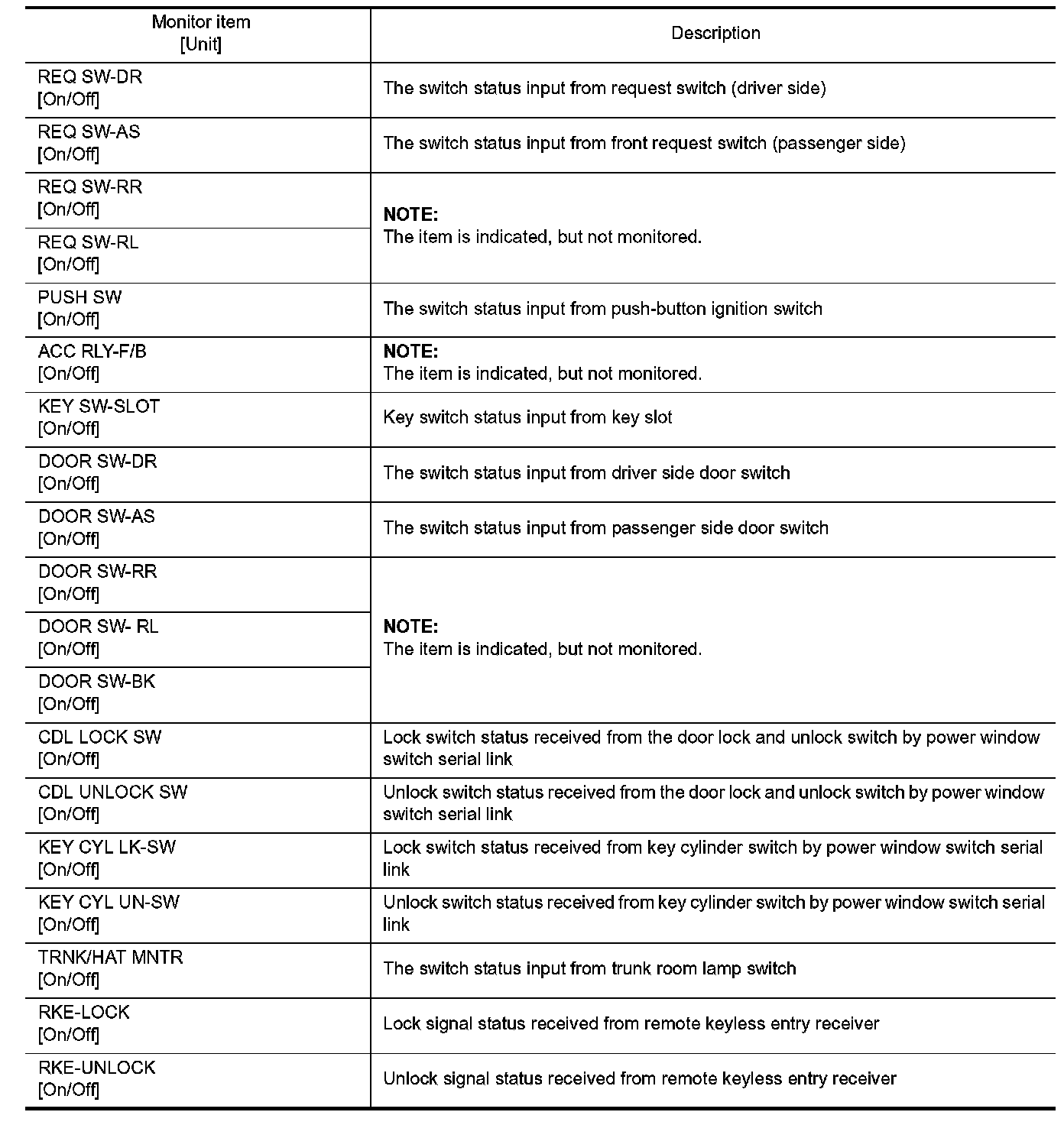

DATA MONITOR






ACTIVE TEST
