AFS Control Unit





AFS CONTROL UNIT


Reference Value

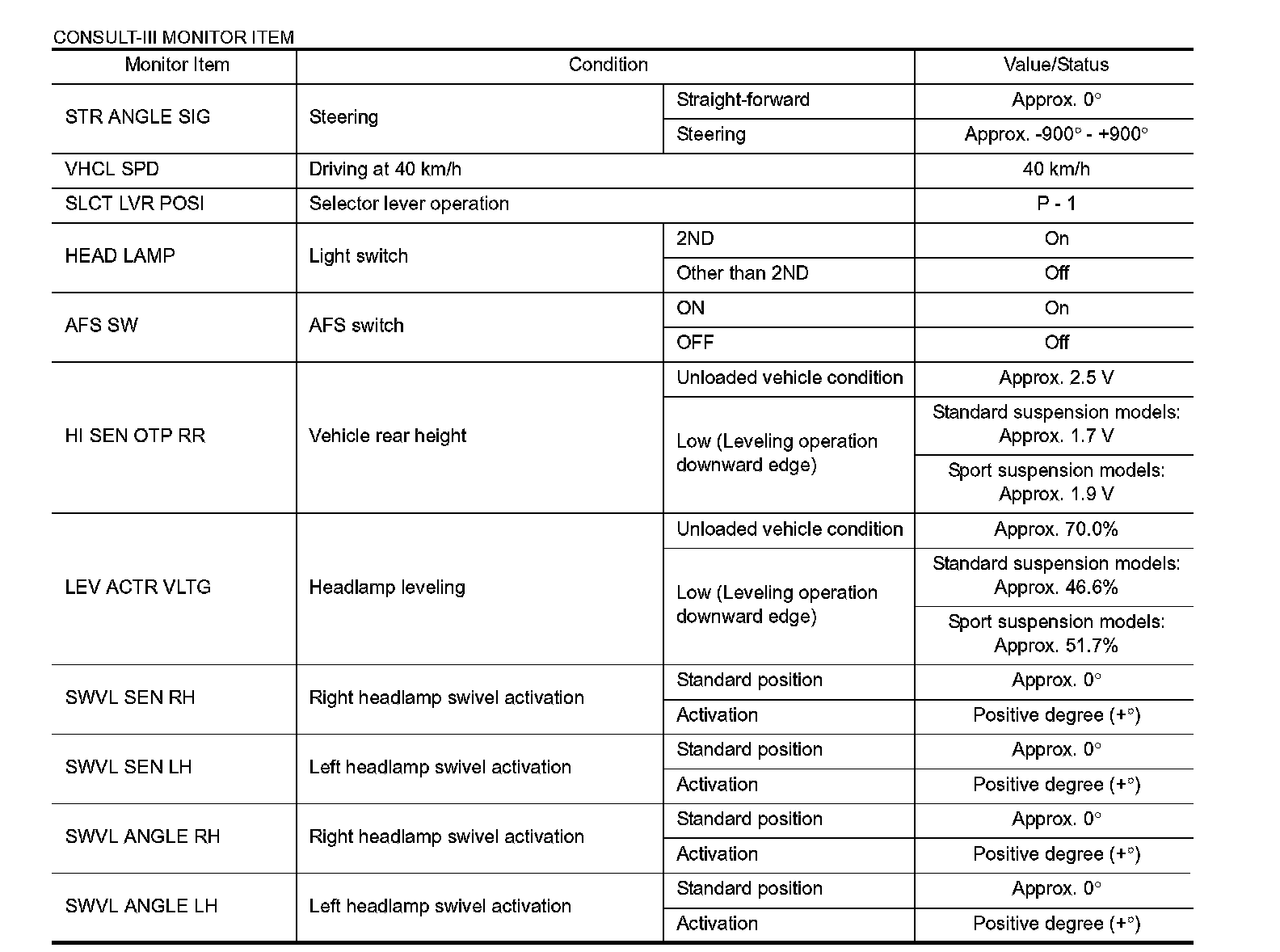

VALUES ON THE DIAGNOSIS TOOL

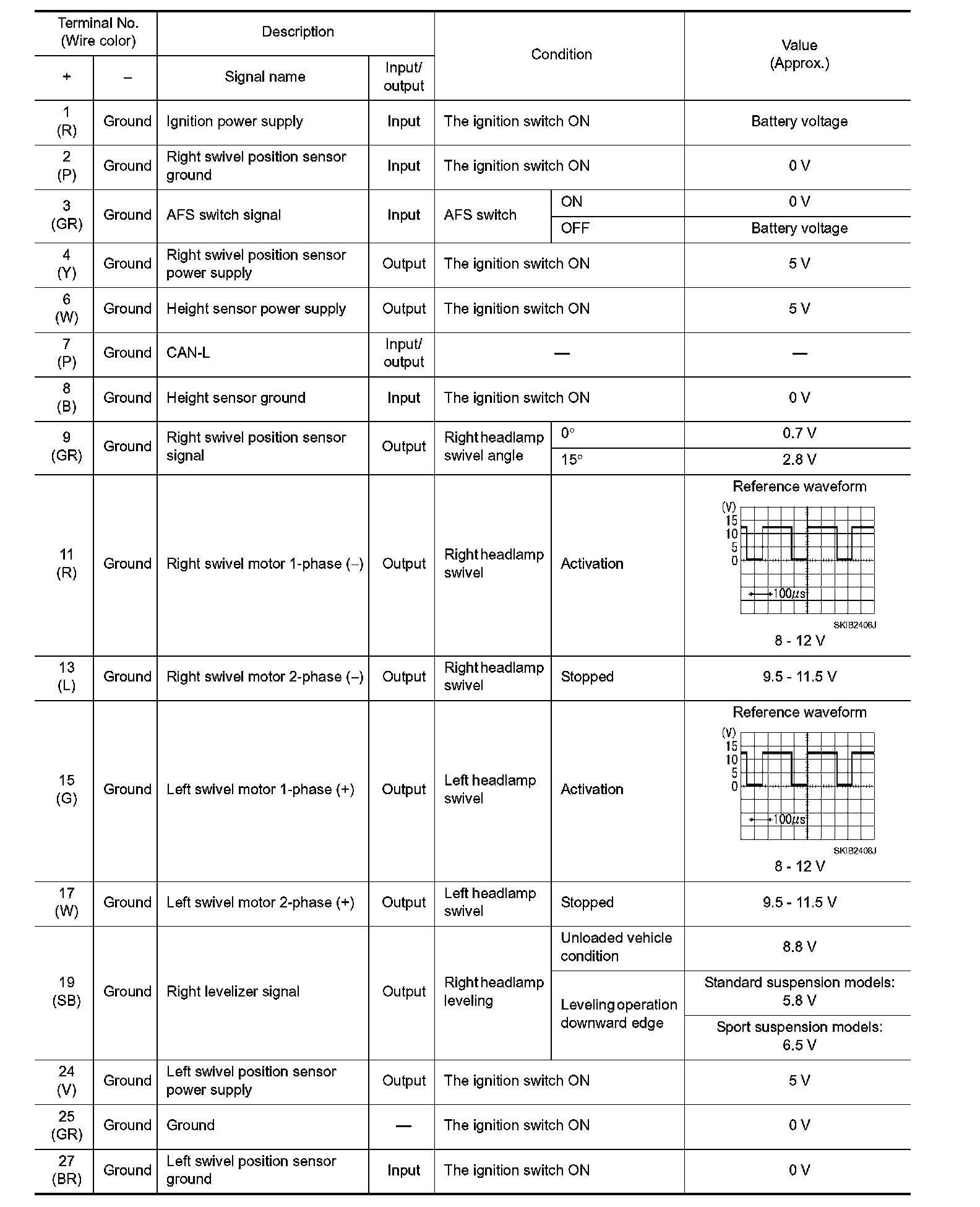

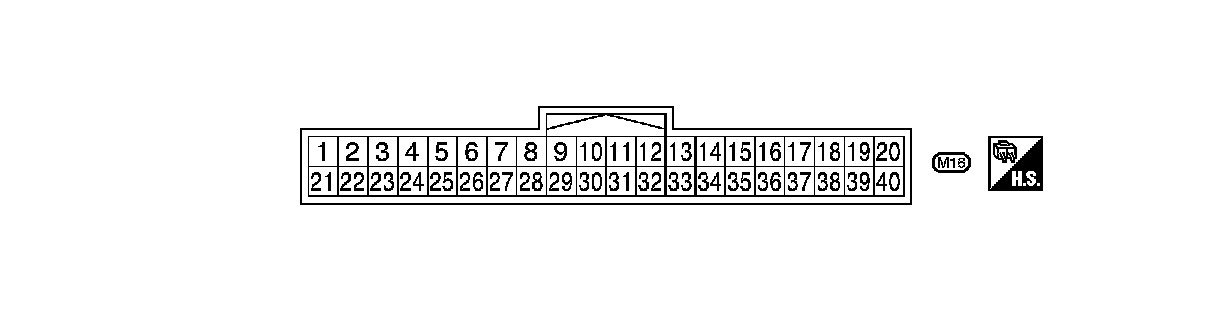

TERMINAL LAYOUT

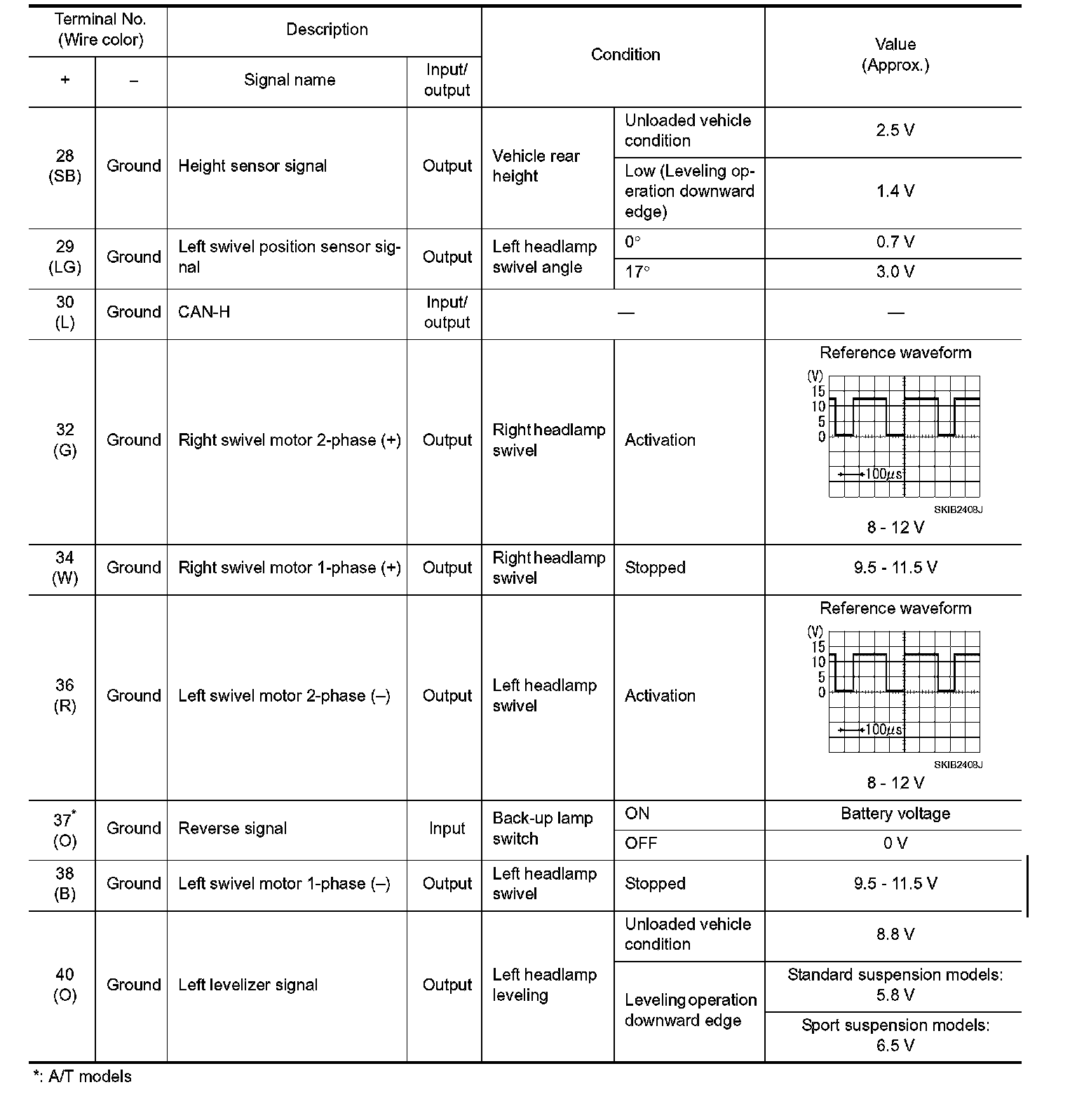

PHYSICAL VALUES
