Diagnosis Procedure

TAIL LAMP CIRCUIT


Diagnosis Procedure

1.CHECK TAIL LAMP FUSE
1. Turn the ignition switch OFF.

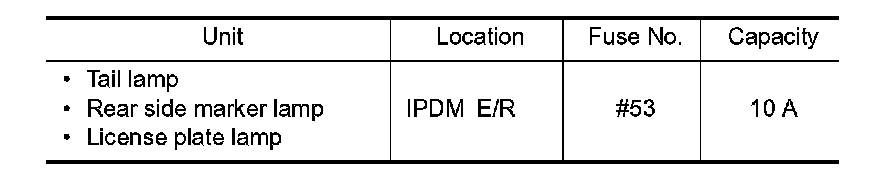

2. Check that the following fuses are not fusing.





Is the fuse fusing?
YES - Repair the malfunctioning part before replacing the fuse.
NO - GO TO 2.
2.CHECK TAIL LAMP OUTPUT VOLTAGE
CONSULT-III ACTIVE TEST
1. Disconnect the rear combination lamp connector.
2. Turn the ignition switch ON.
3. Select "EXTERNAL LAMPS" of IPDM E/R active test item.

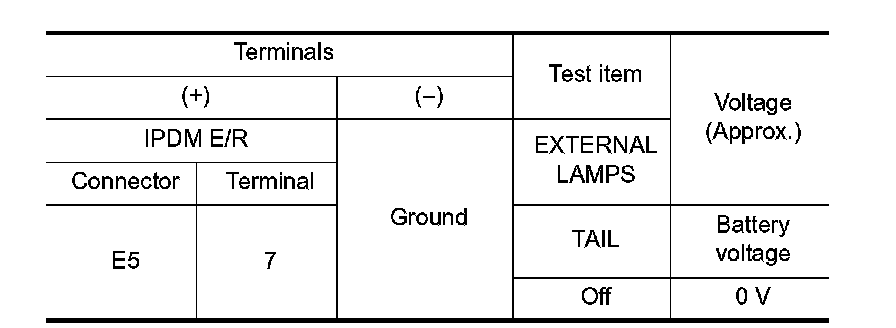

4. With operating the test items, check the voltage between the IPDM E/R harness connector and the ground.





Is the measurement value normal?
YES - GO TO 3.
NO - Replace IPDM E/R.
3.CHECK TAIL LAMP OPEN CIRCUIT
1. Turn the ignition switch OFF.
2. Disconnect IPDM E/R connector.

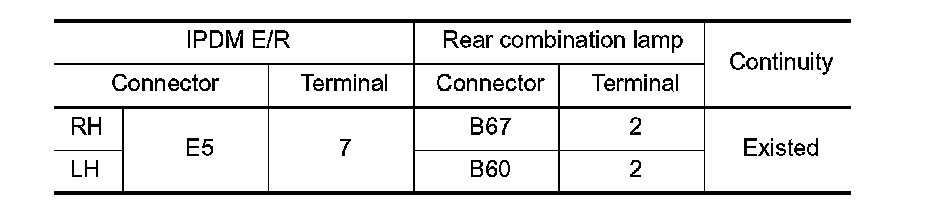

3. Check continuity between the IPDM E/R harness connector and the rear combination lamp harness connector.





Does continuity exist?
YES - GO TO 4.
NO - Repair the harnesses or connectors.
4.CHECK TAIL LAMP GROUND OPEN CIRCUIT

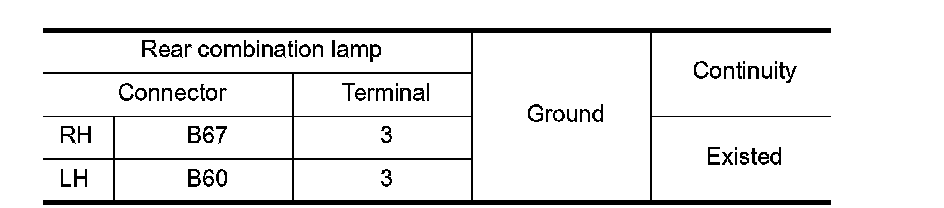

Check continuity between the rear combination lamp harness connector and the ground.





Does continuity exist?
YES - Replace the rear combination lamp.
NO - Repair the harnesses or connectors.
