Headlamp Bulb: Service and Repair

FRONT COMBINATION LAMP


Replacement


CAUTION:
- Disconnect the battery negative terminal or remove the fuse.
- After installing the bulb, install the resin cap and the bulb socket securely for watertightness.
- Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
- Never touch bulb by hand while it is lit or right after being turned off.
- Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of lamp. When replacing bulb, be sure to replace it with new one.

HEADLAMP BULB
1. Remove the fender protector. Keep a service area. Refer to Exploded View.

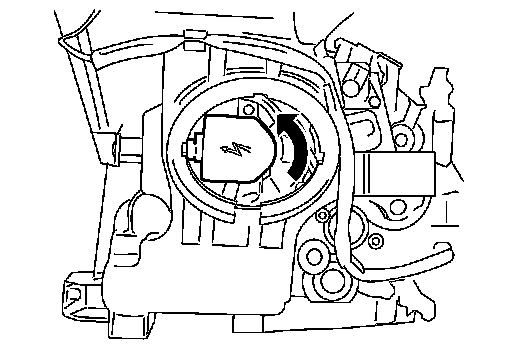

2. Rotate the resin cap counterclockwise and unlock it.
