Home
>>
Infiniti
>>
2009
>>
G37 Convertible V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Description and Operation
>>
System Diagram
System Diagram

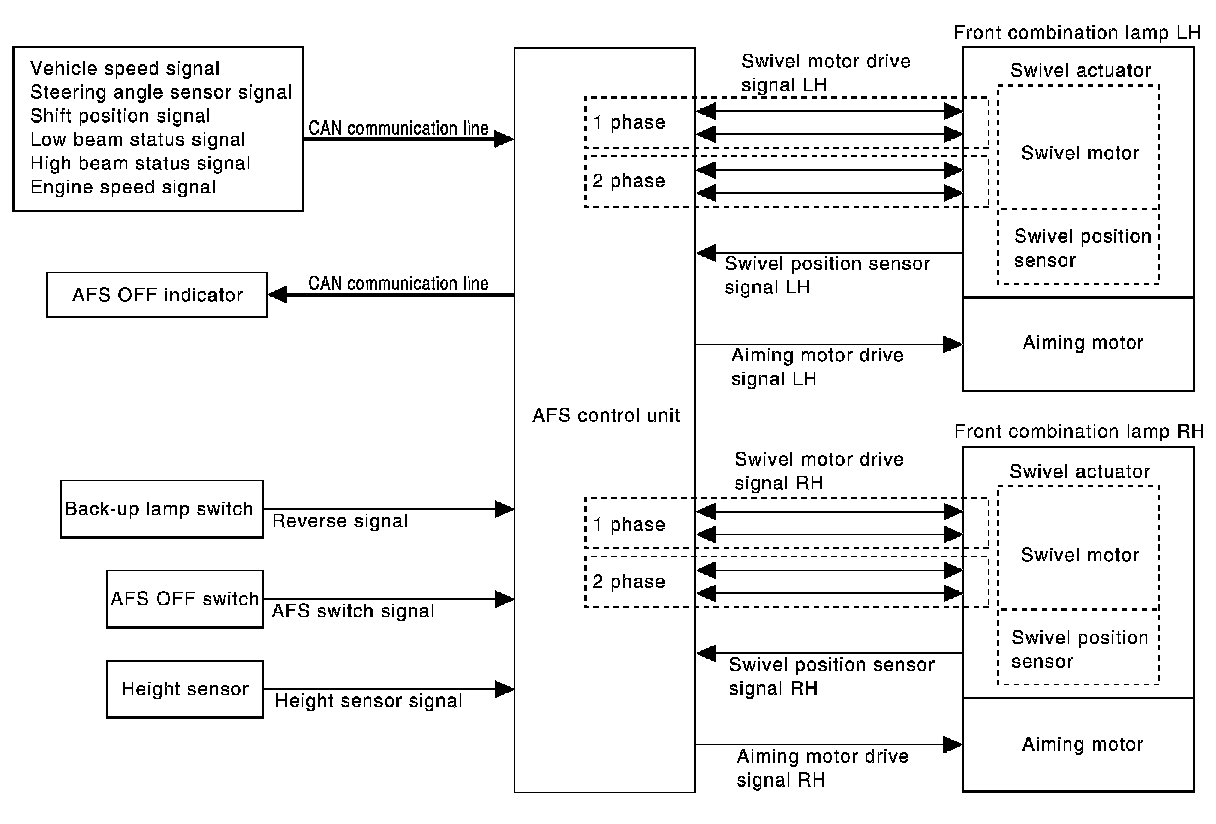

ACTIVE ADAPTIVE FRONT-LIGHTING SYSTEM
System Diagram
