ID Registration Cannot Be Completed

ID REGISTRATION CANNOT BE COMPLETED


Description


DESCRIPTION
The ID of the transmitter installed in each wheel cannot be registered in the tire pressure monitoring system.
Inspect the transmitter or the tire pressure monitoring system circuit.




ID REGISTRATION CANNOT BE COMPLETED


Diagnosis Procedure

1.CHECK TRANSMITTER ID REGISTRATION
1. Perform transmitter ID registration for all wheels. Refer to Special Repair Requirement.
2. Drive for 3 minutes at a speed of 40 km/h (25 MPH) or more, then drive normally for 10 minutes.

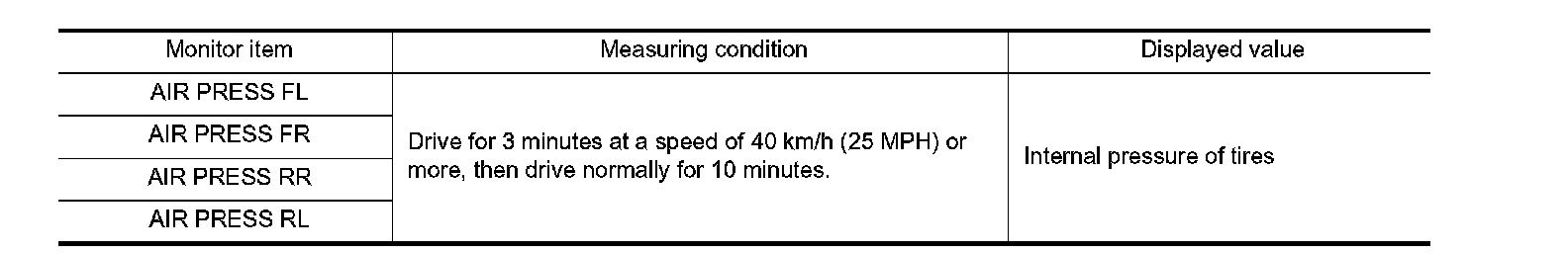

3. On "DATA MONITOR", select "AIR PRESS FL", "AIR PRESS FR", "AIR PRESS RR" and "AIR PRESS
RL", and check that the tire pressures match the standard value.






CAUTION:
Stop the vehicle and within 5 minutes, use CONSULT-III "DATA MONITOR" to display the tire pressure for all wheels.
Is the inspection result normal?
YES - INSPECTION END
NO - GO TO 2.
2.CHECK TRANSMITTERS
1. Perform trouble diagnosis for the transmitter. Refer to C1720.
2. Perform transmitter ID registration for all wheels. Refer to Special Repair Requirement.
3. Check that transmitter ID registration is completed for all wheels.
Is transmitter ID registration for all wheels been completed?
YES - INSPECTION END
NO - Replace the transmitter. Refer to Exploded View.
