BCM (Body Control Module)

DIAGNOSIS SYSTEM (BCM)


AIR PRESSURE MONITOR : CONSULT-III Function


FUNCTION

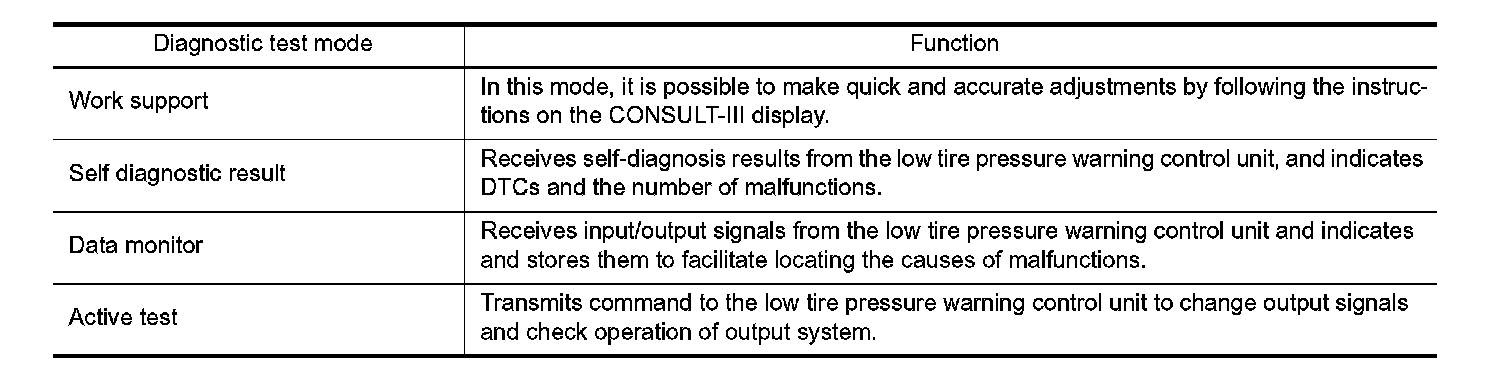

The diagnosis functions (main functions) include the following: "WORK SUPPORT", "SELF DIAGNOSTIC
RESULT", "DATA MONITOR" and "ACTIVE TEST".






WORK SUPPORT MODE
Refer to Special Repair Requirement.

SELF-DIAG RESULTS MODE
Refer to Testing and Inspection.

DATA MONITOR MODE
Screen of data monitor mode is displayed.

NOTE:
When malfunction is detected, CONSULT-III perform REAL-TIME DIAGNOSIS.
Also, any malfunction detected while in this mode will be displayed at real time.






NOTE:
Before performing the self-diagnosis, be sure to register the ID, or erase the actual malfunction location may be different from that displayed on CONSULT-III.

ACTIVE TEST MODE

NOTE:
Before performing the self-diagnosis, be sure to register the ID, or erase the actual malfunction may be different from that displayed on CONSULT-III.

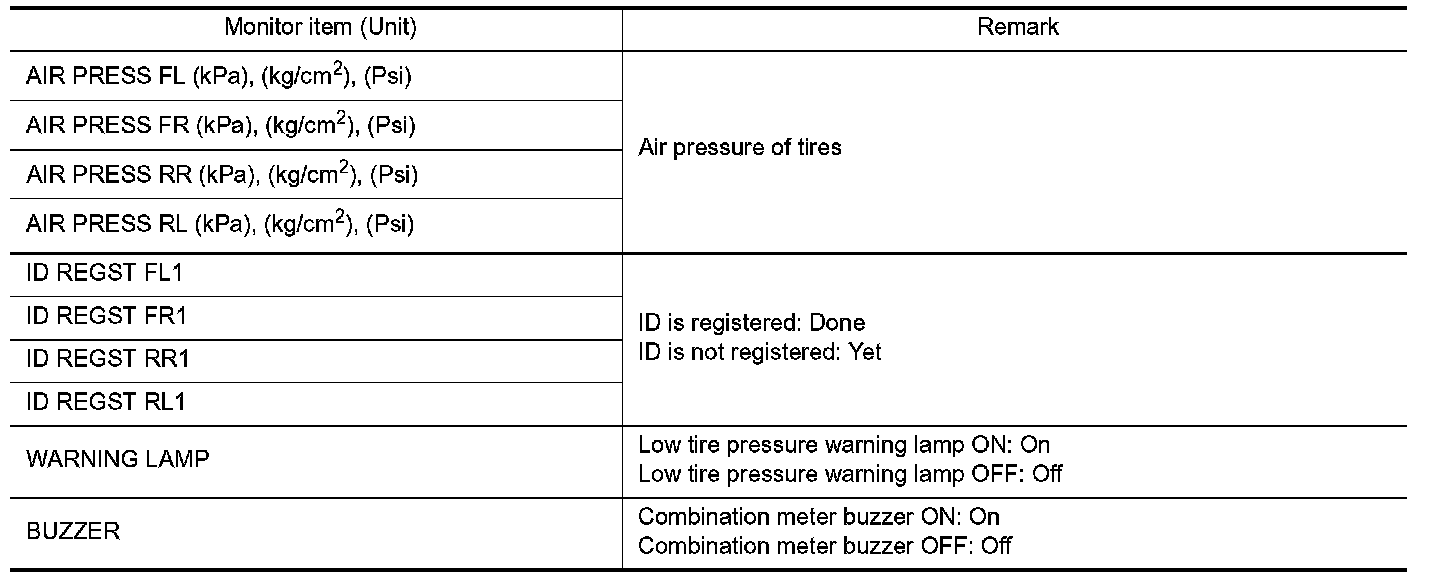

TEST ITEM LIST
