Combination Meter





COMBINATION METER


Reference Value


VALUES ON THE DIAGNOSIS TOOL
Refer to Unified Meter and A/C AMP..

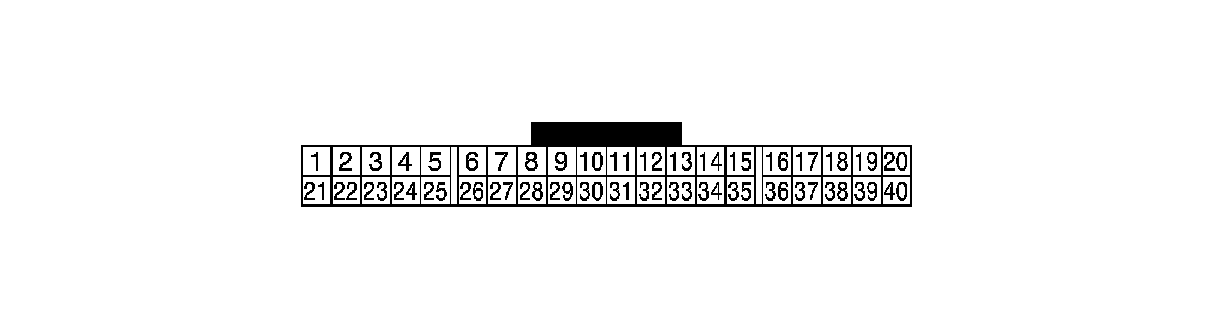

TERMINAL LAYOUT

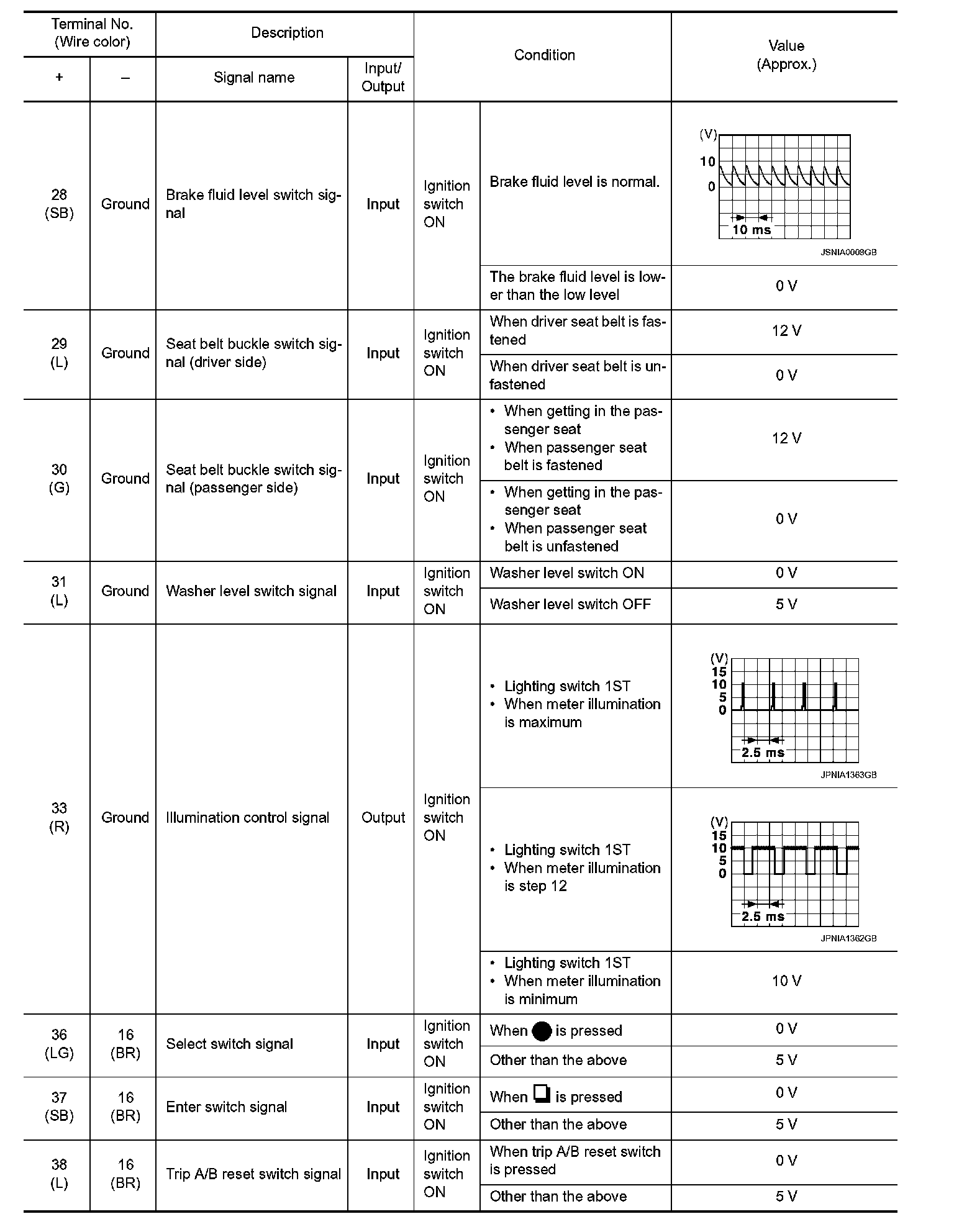

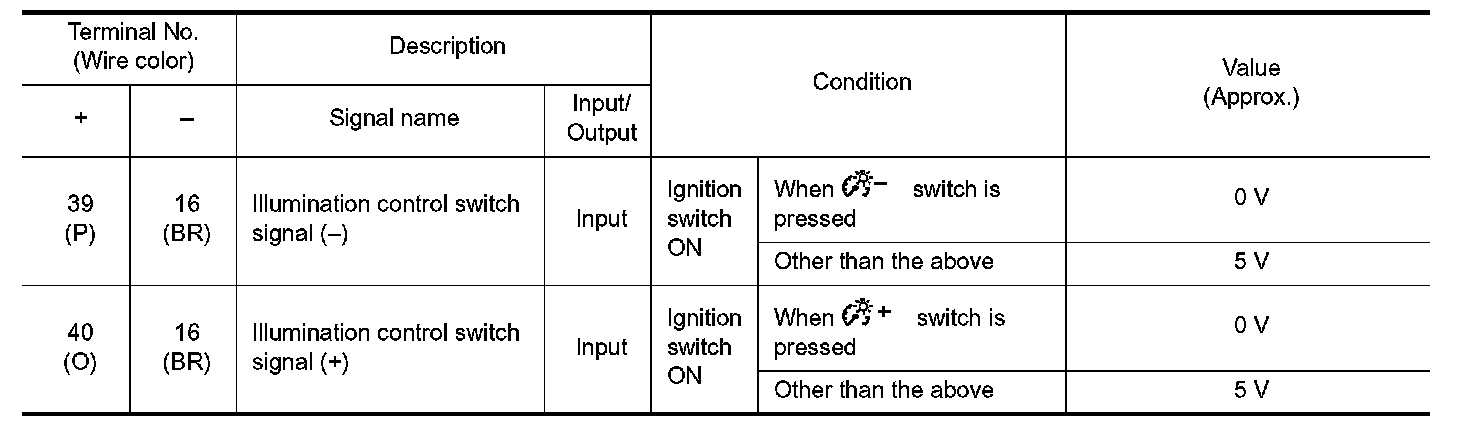

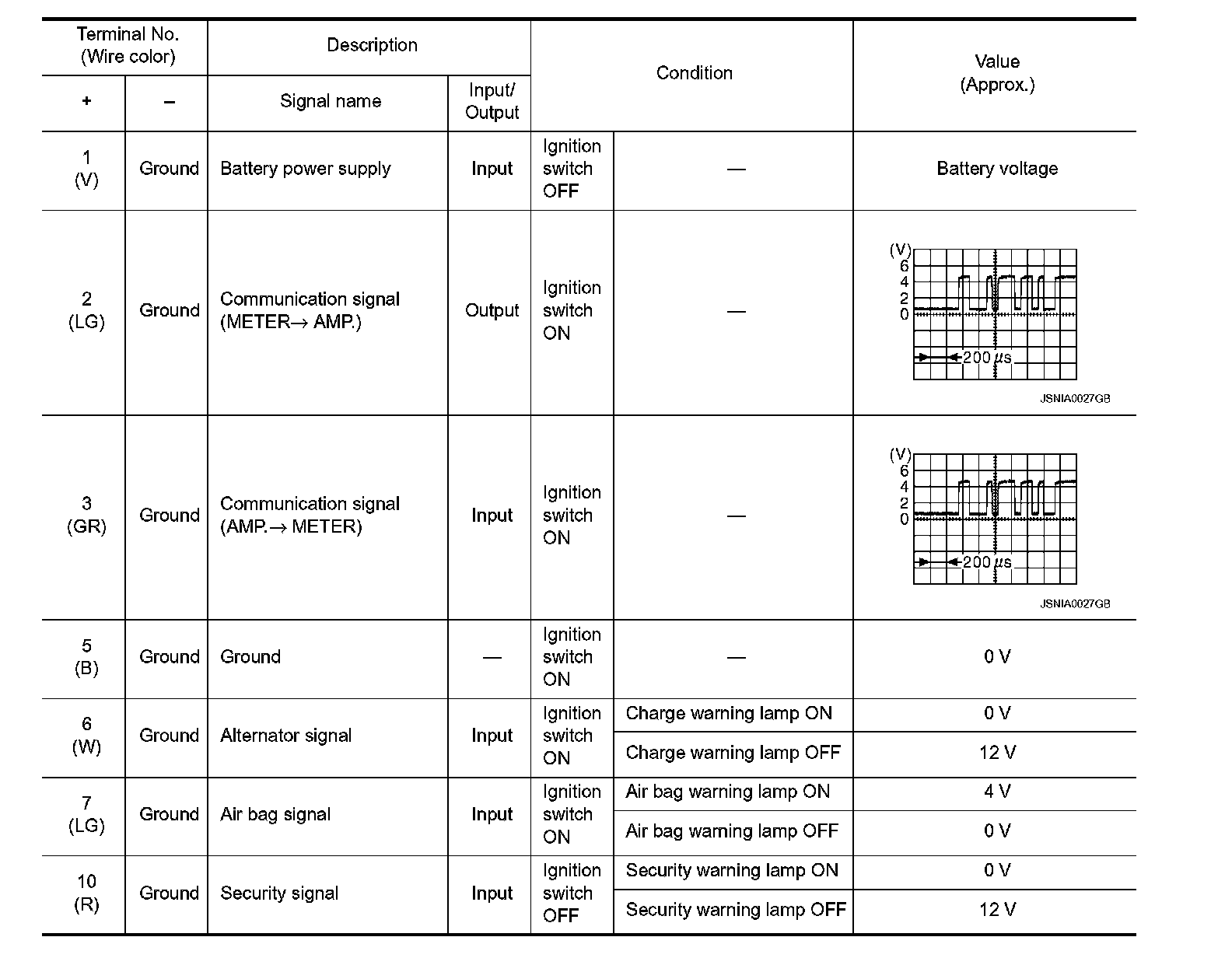

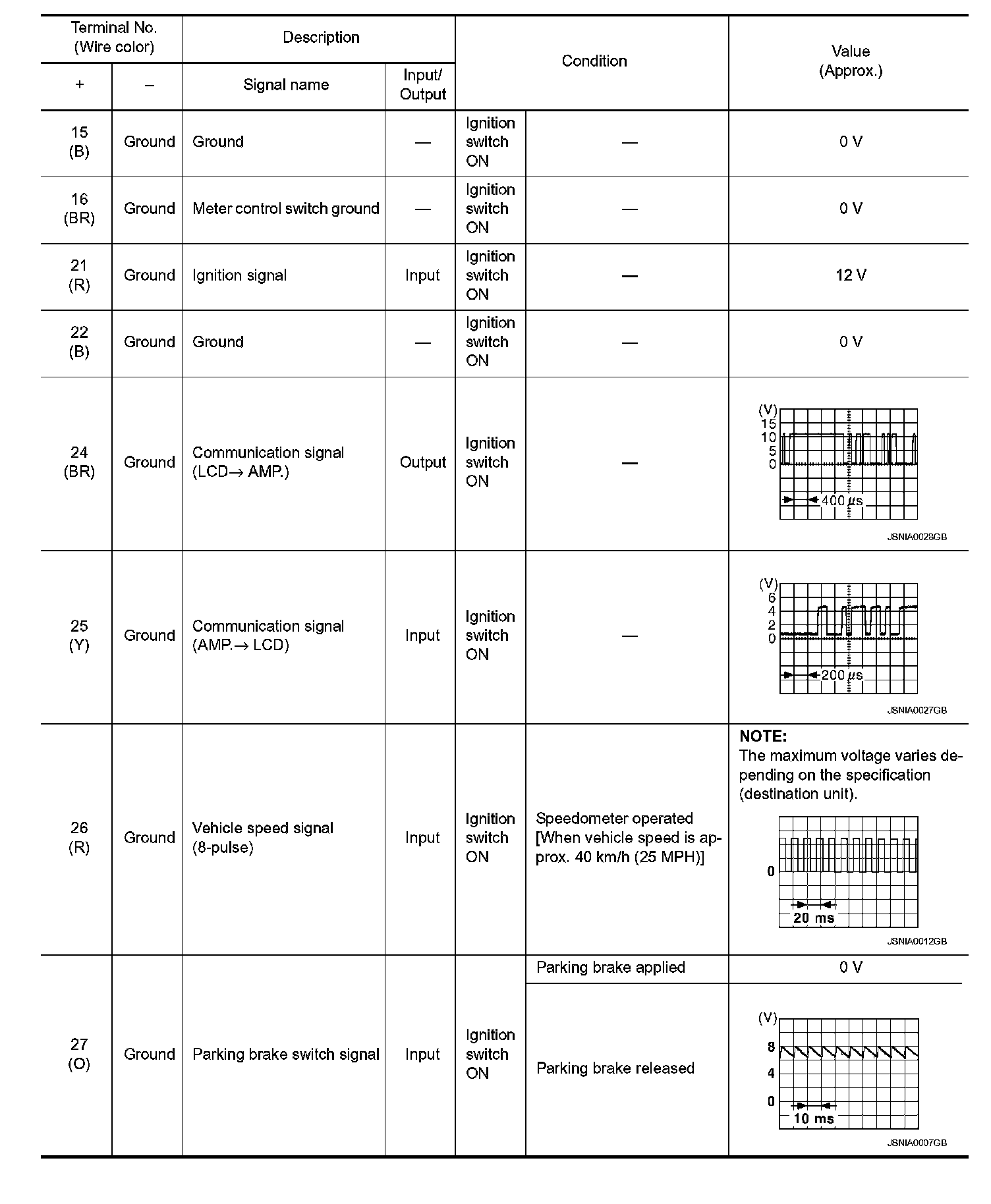

PHYSICAL VALUES
