UNIFIED METER AND A/C AMP.
Fail-safe
FAIL SAFE

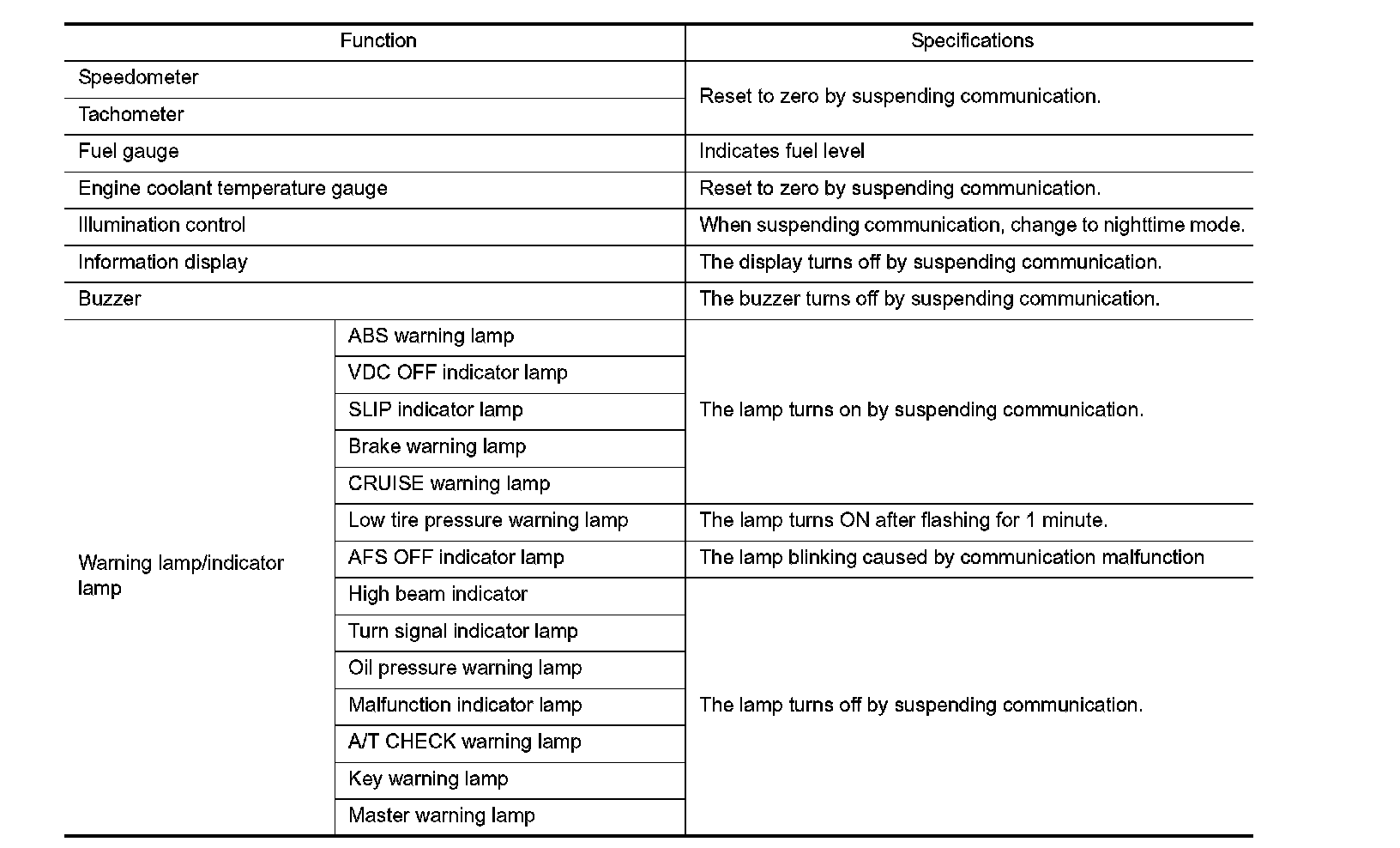

The unified meter and A/C amp. activates the fail-safe control if CAN communication with each unit is malfunctioning.
