Component Inspection

SEAT BELT BUCKLE SWITCH SIGNAL CIRCUIT


Component Inspection

1.CHECK SEAT BELT BUCKLE SWITCH (DRIVER SIDE)
1. Turn ignition switch OFF.
2. Disconnect the seat belt buckle switch (driver side) connector.

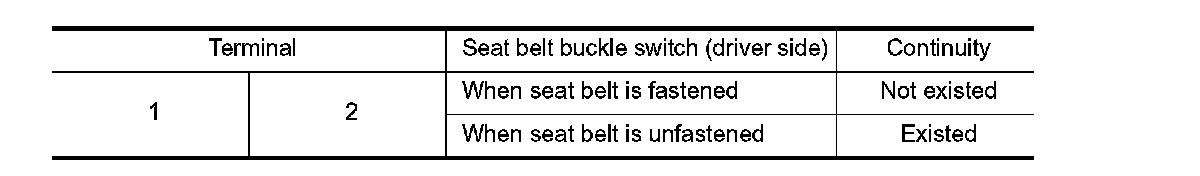

3. Check continuity between terminals 1 and 2.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace the seat belt buckle switch (driver side). Refer to Removal and Installation.
