Compressor System Symptoms

COMPRESSOR SYSTEM SYMPTOMS

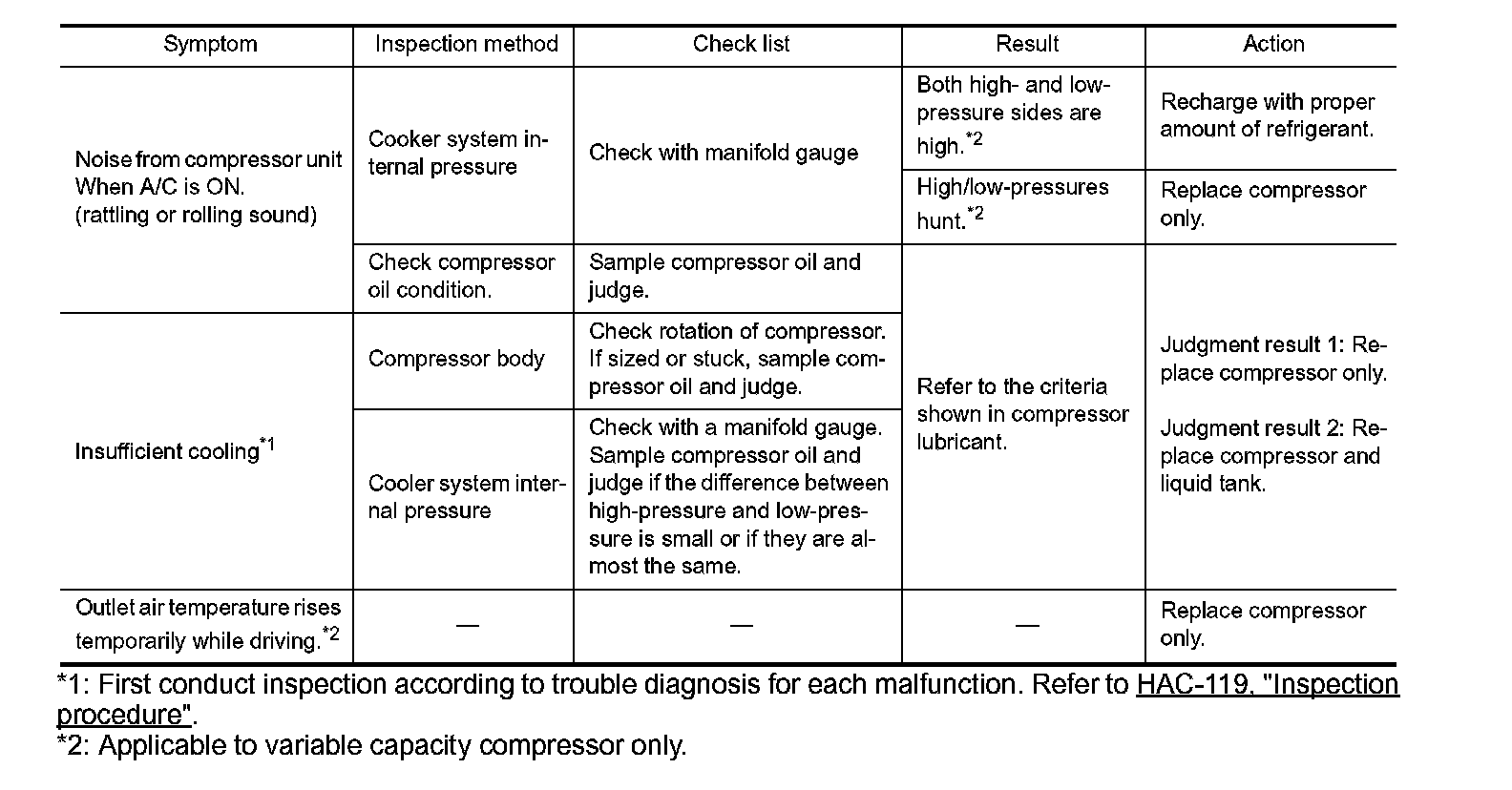

Symptom Table

Follow the next table and perform trouble diagnosis if there is a compressor unit malfunction (internal noise, insufficient cooling).





*1: First conduct inspection according to trouble diagnosis for each malfunction. Refer to Inspection Procedure.
*2: Applicable to variable capacity compressor only.
