Gas Sensor Sensitivity Adjustment Function

INSPECTION AND ADJUSTMENT


WITH ACCS : Gas Sensor Sensitivity Adjustment Function


DESCRIPTION
According to customers' sense of smell, gas sensor sensitivity can be changed.

Operating procedures for this trimmer are as follows:
1. Begin self-diagnosis STEP-5 mode. Refer to Scan Tool Testing and Procedures.
2. Press fan (UP: +) switch two times to set system in auxiliary mode.

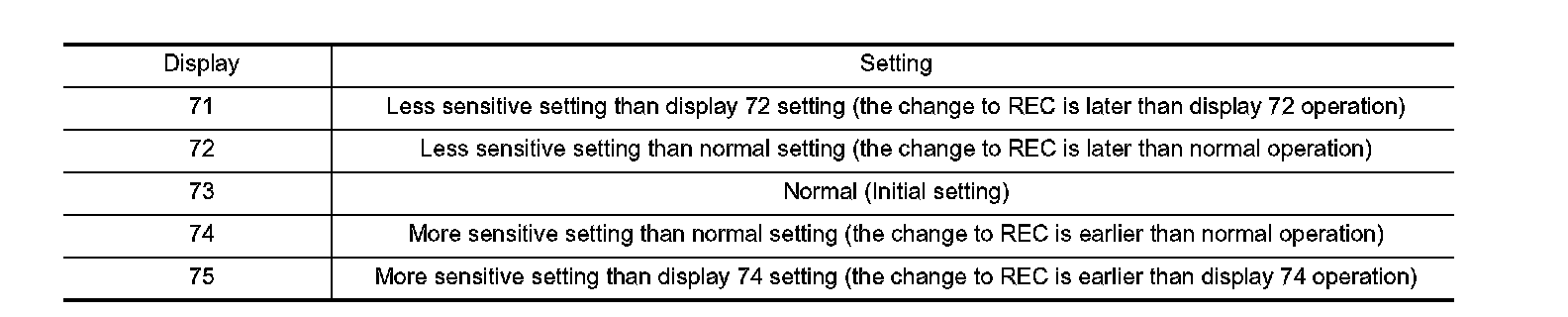

3. Turn temperature control dial (driver side) as desired.






NOTE:
When battery cable is disconnected or battery voltage is below 10 V, Gas sensor sensitivity adjustment function is canceled. Gas sensor sensitivity adjustment function set becomes that of initial condition.
