Inlet Port Memory Function

INSPECTION AND ADJUSTMENT

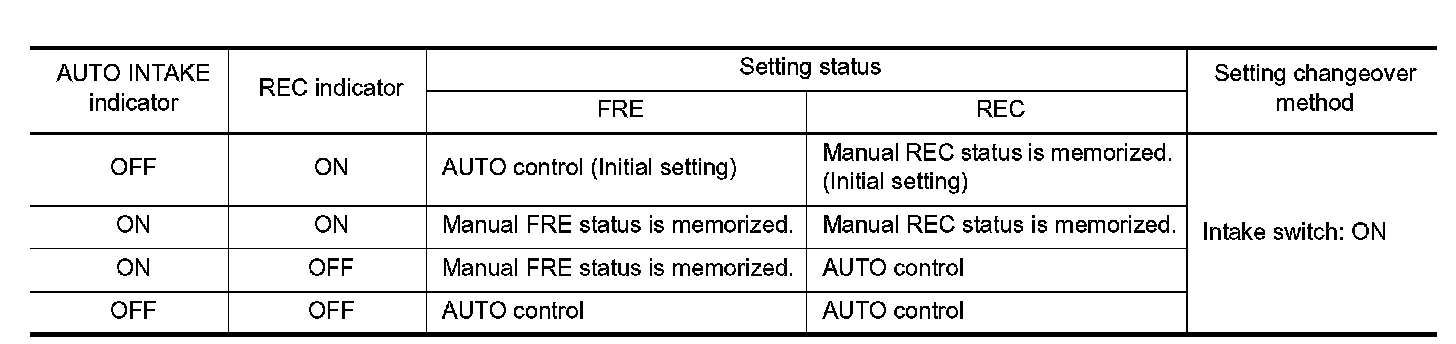

Inlet Port Memory Function


DESCRIPTION
When ignition switch is turned from OFF to ON, inlet port can be set to AUTO or manual.

Operating procedures for this trimmer are as per the following:
1. Begin self-diagnosis STEP-5 mode. Refer to Scan Tool Testing and Procedures.
2. Press fan (UP:+) switch to set system in auxiliary mode.
3. Press intake switch as desired.






NOTE:
When battery cable is disconnected or battery voltage is below 10 V, memory function is canceled. Memory function set becomes that of initial condition.
