Component Inspection

IN-VEHICLE SENSOR


Component Inspection

1.CHECK IN-VEHICLE SENSOR
1. Turn ignition switch OFF.
2. Disconnect in-vehicle sensor connector. Refer to Exploded View.

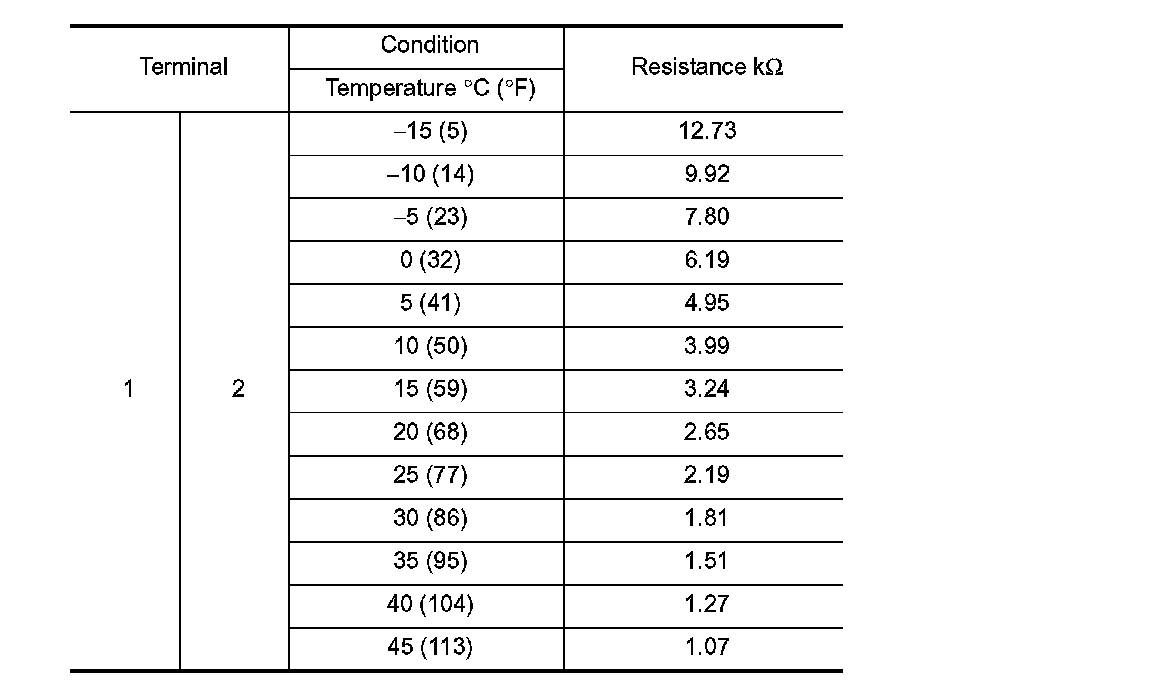

3. Check resistance between in-vehicle sensor terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace in-vehicle sensor.
