Air Mix Door Motor Description (Passenger Side)

AIR MIX DOOR MOTOR (PASSENGER SIDE)


Description


COMPONENT DESCRIPTION

Air Mix Door Motor

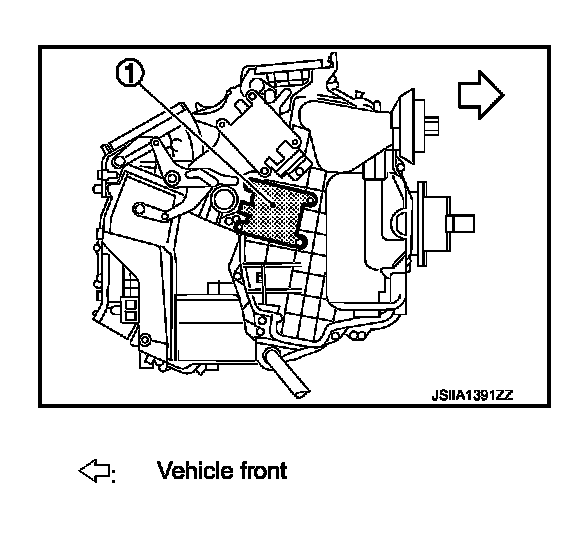

The air mix door motor (passenger side) (1) is attached to the heater and cooling unit assembly. It rotates so that the air mix door is opened or closed to a position set by the unified meter and A/C amp. Motor rotation is then conveyed through a shaft and the air mix door position feedback is then sent to the unified meter and A/C amp. by PBR built-in air mix door motors.
