Rear Floor Duct 1

DUCT AND GRILLE


REAR FLOOR DUCT 1 REAR FLOOR DUCT 1 : Removal and Installation


REMOVAL
1. Remove center console assembly. Refer to Exploded View.
2. Remove Instrument side panel RH. Refer to Exploded View.
3. Remove AV control unit. Refer to the following.
- Base Audio Without Navigation (BASE AUDIO WITHOUT NAVIGATION)
- BOSE Audio Without Navigation (BOSE AUDIO WITHOUT NAVIGATION)
- BOSE Audio With Navigation (BOSE AUDIO WITH NAVIGATION)

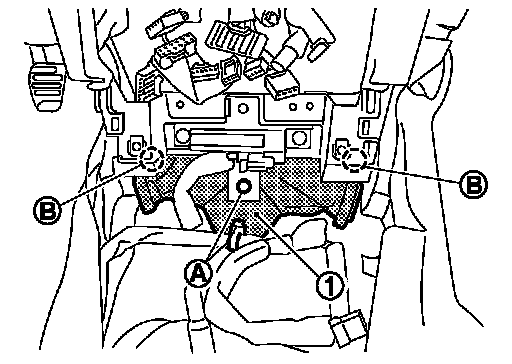

4. Remove mounting clip (A).
5. Remove mounting clips (B), and then peel back floor carpet to a point where rear floor duct 1 (1) is visible.
6. Remove rear floor duct 1 to rightward.

INSTALLATION
Installation is basically the reverse order of removal.
