Heater Duct

DUCT AND GRILLE


HEATER DUCT : Removal and Installation


REMOVAL

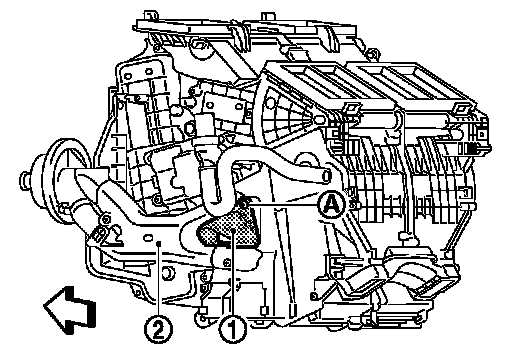

Remove mounting screw (A), and then remove heater duct (1) from heater and cooling unit assembly (2).






INSTALLATION
Installation is basically the reverse order of removal.
