Front Defroster Grille





DUCT AND GRILLE


FRONT DEFROSTER GRILLE : Removal and Installation


REMOVAL

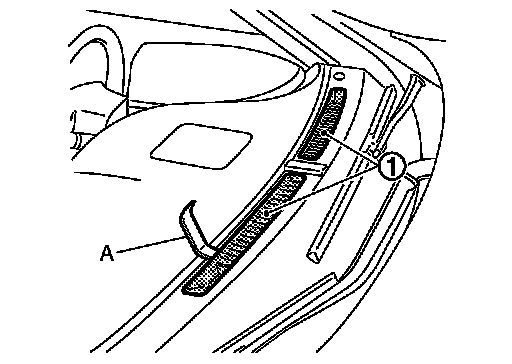

Remove front defroster grilles (1), using remover tools (A).






INSTALLATION
Installation is basically the reverse order of removal.
