Foot Duct

DUCT AND GRILLE


FOOT DUCT : Removal and Installation


REMOVAL

Driver Side
1. Remove heater and cooling unit assembly. Refer to Exploded View.

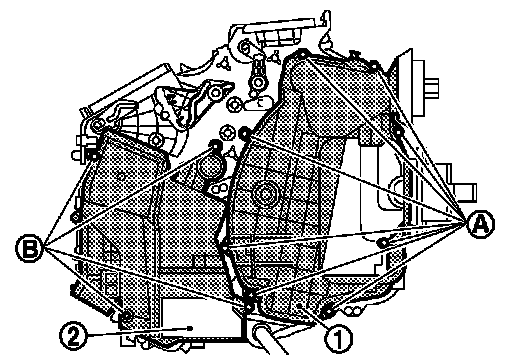

2. Remove mounting screws (A), and then remove heater pipe cover (1).
3. Remove mounting screws (B), and then remove foot duct (left) (2).

Passenger Side
1. Set the temperature at 18.0�C (60�F).

CAUTION:
The angle may be out, when installing the air mix door motor to the air mix door, unless the above procedure is performed.
2. Disconnect the battery cable from the negative terminal.
3. Remove heater and cooling unit assembly. Refer to Exploded View.
4. Remove air mix door motor (passenger side). Refer to Exploded View.
5. Remove mode door motor and links. Refer to Exploded View.

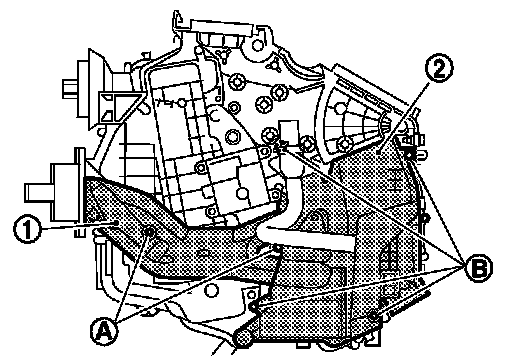

6. Remove mounting screws (A), and then remove evaporator cover (1).
7. Remove mounting screws (B), and then remove foot duct (right) (2).

INSTALLATION
Installation is basically the reverse order of removal.
