Heater Core: Service and Repair

HEATER and COOLING UNIT ASSEMBLY


HEATER CORE : Removal and Installation


REMOVAL
1. Remove foot duct. Refer to Service and Repair.

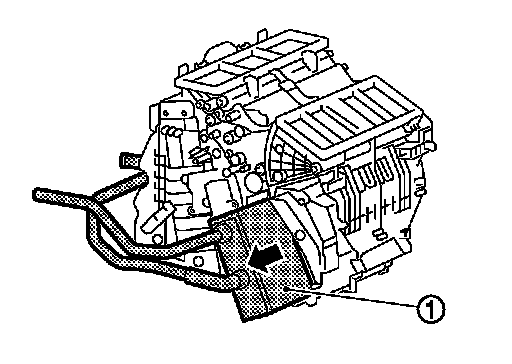

2. Slide heater core (1) to driver side (as shown in the figure).

INSTALLATION
Installation is basically the reverse order of removal.

NOTE:
Refer to Refilling when filling radiator with engine coolant.
