FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Infiniti
>>
2009
>>
G37 Convertible V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Tire Monitoring System
>>
Tire Pressure Monitoring System
Tire Pressure Monitoring System
TPMS

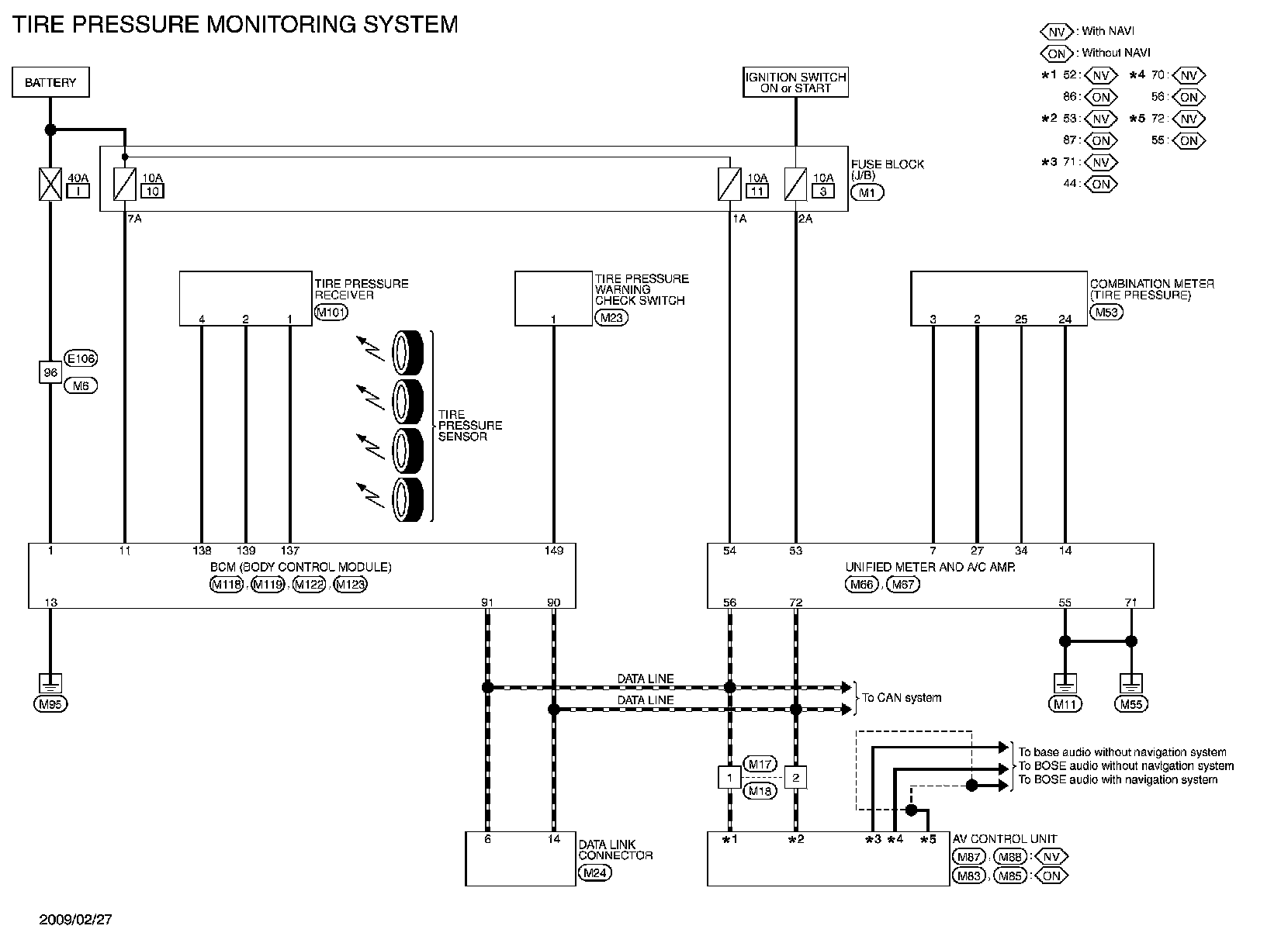

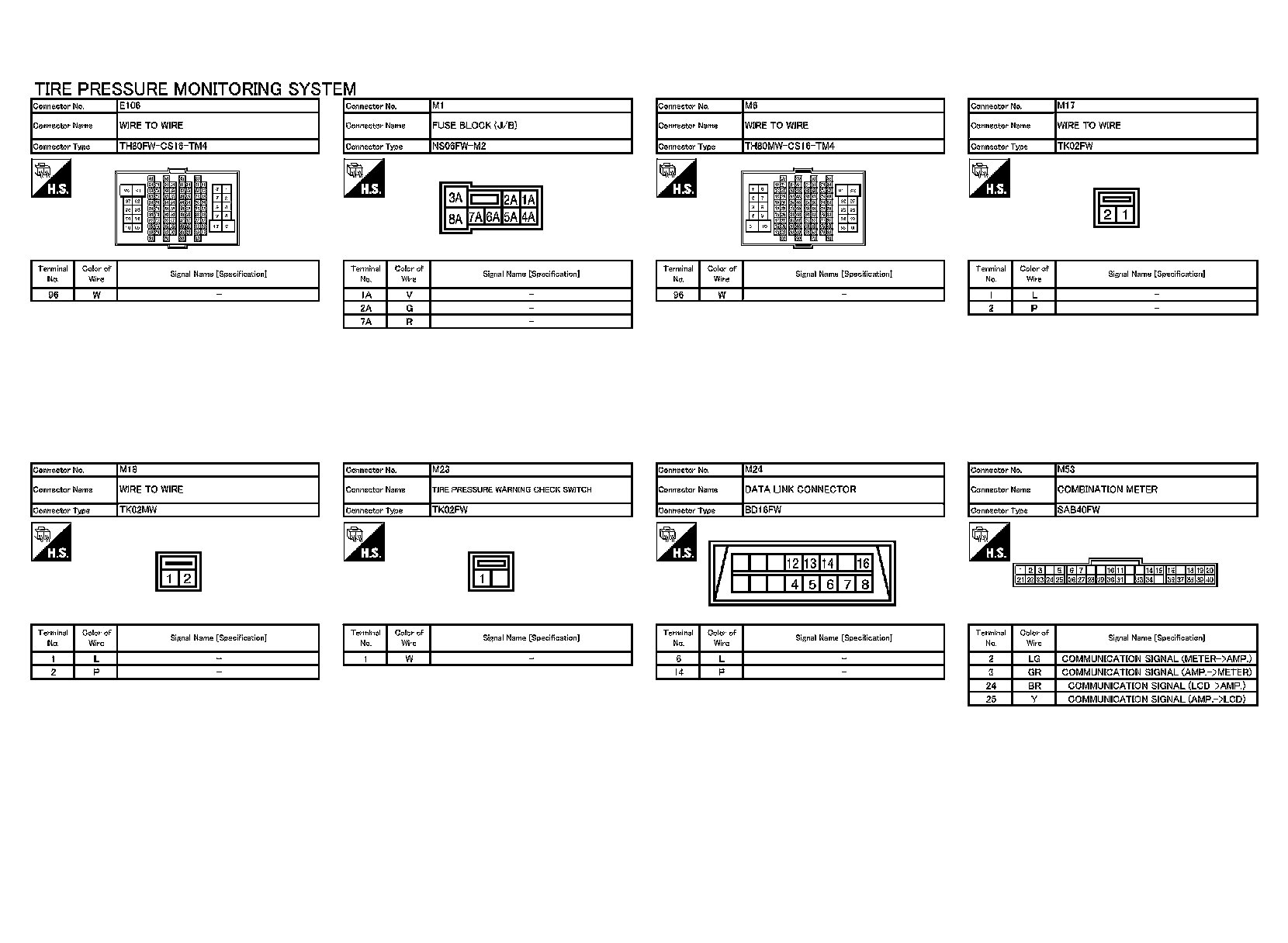

Wiring Diagram - TIRE PRESSURE MONITORING SYSTEM -
