BOSE Audio Without Navigation





AV CONTROL UNIT

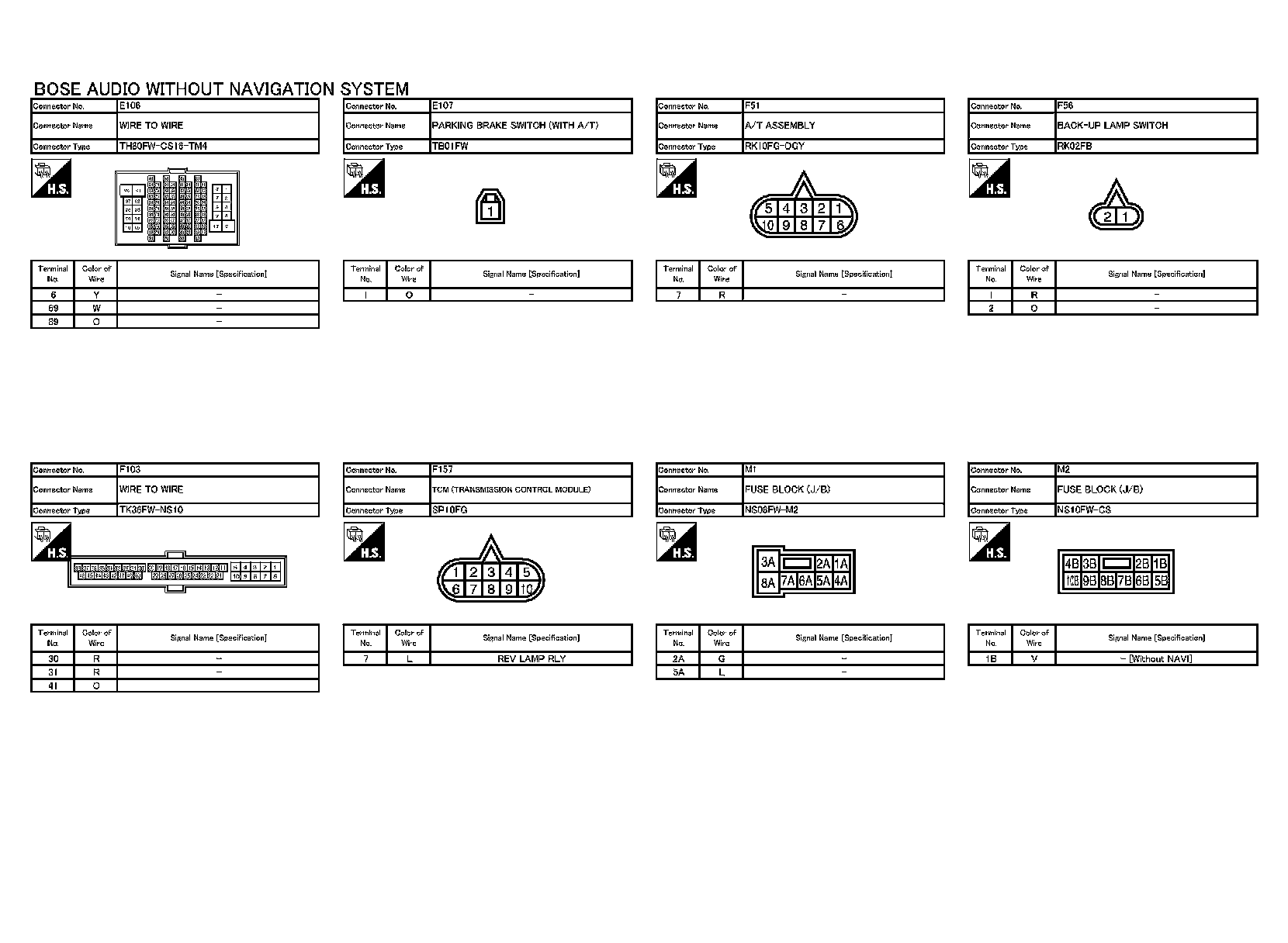

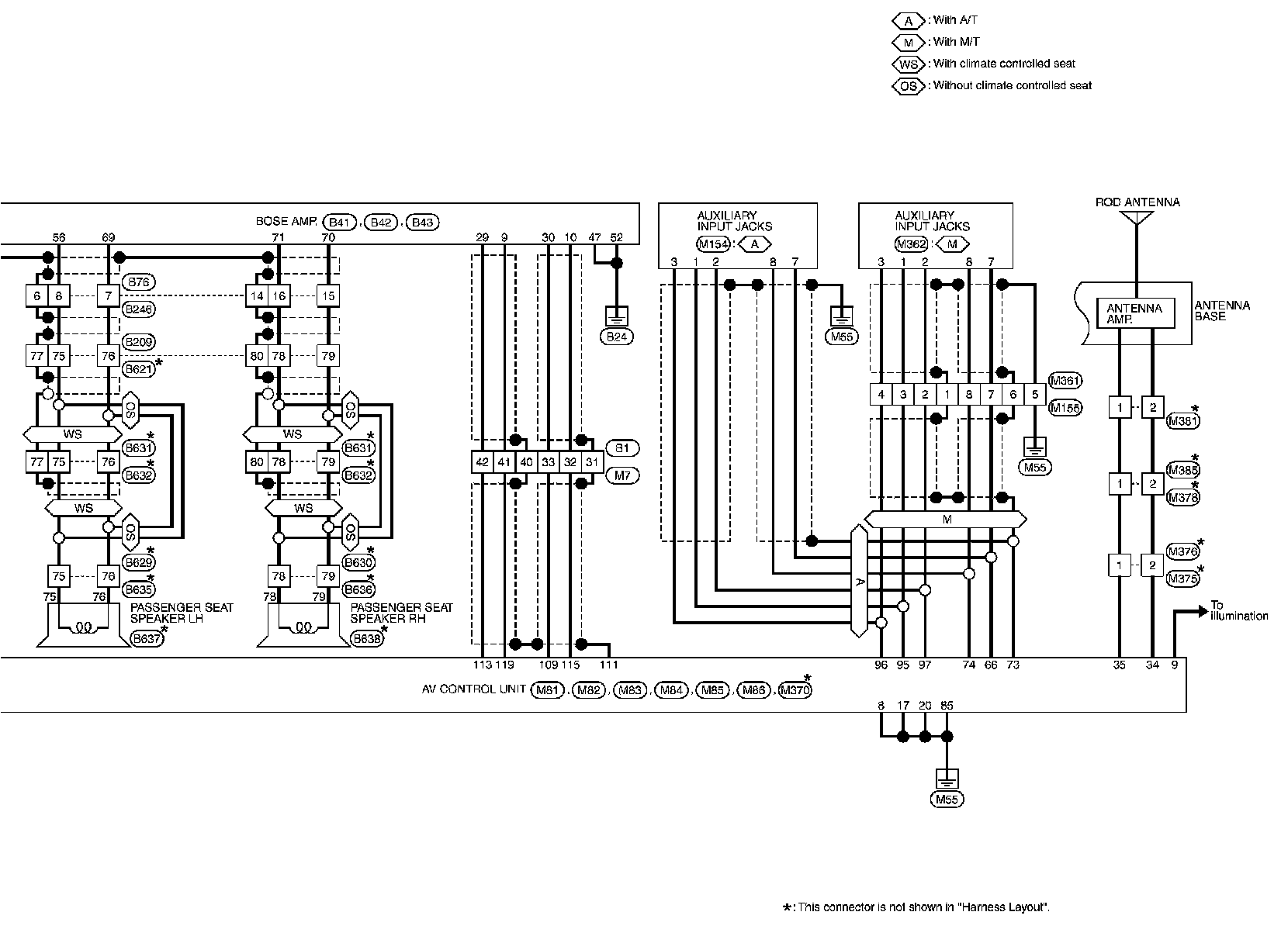

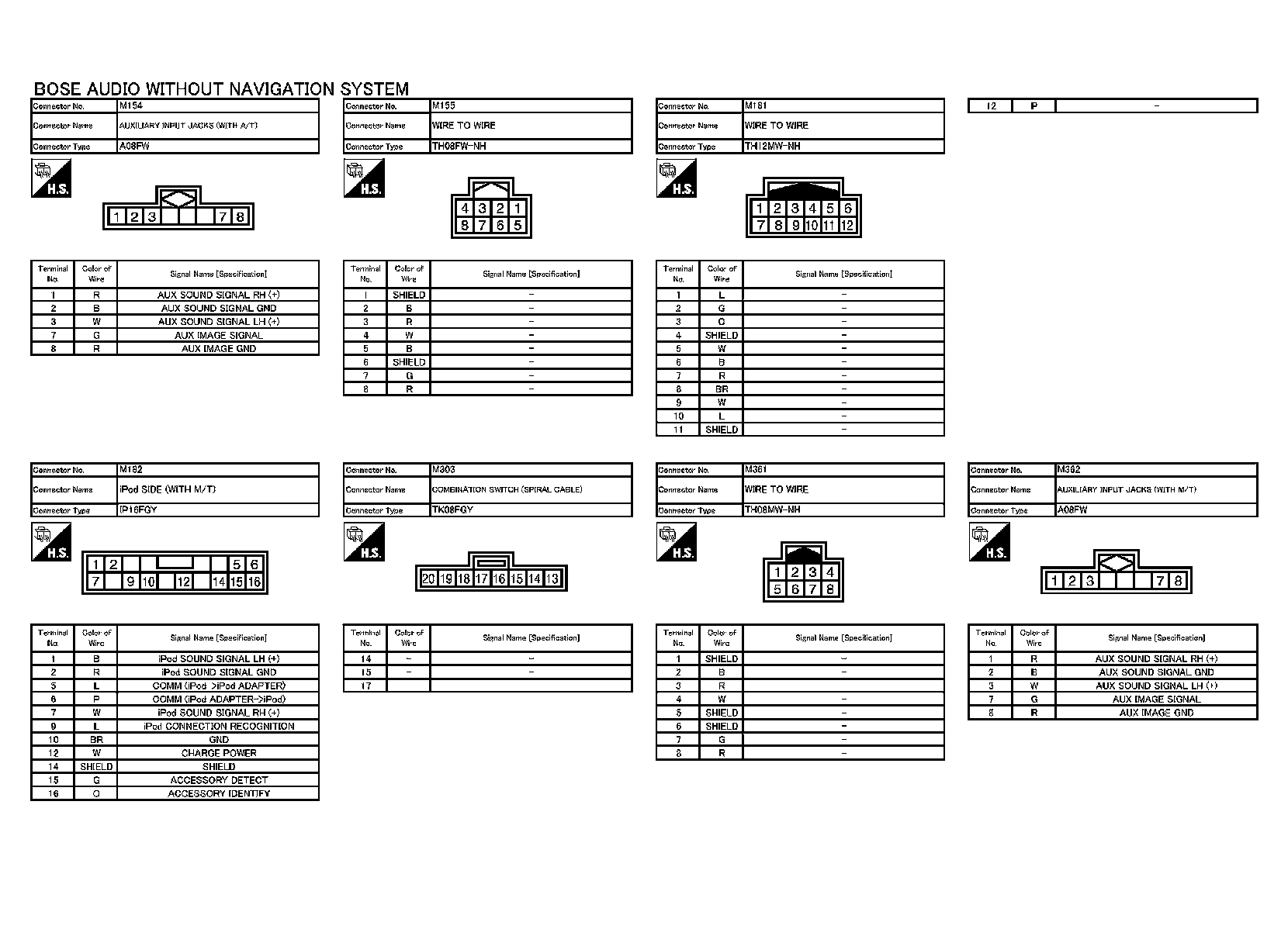

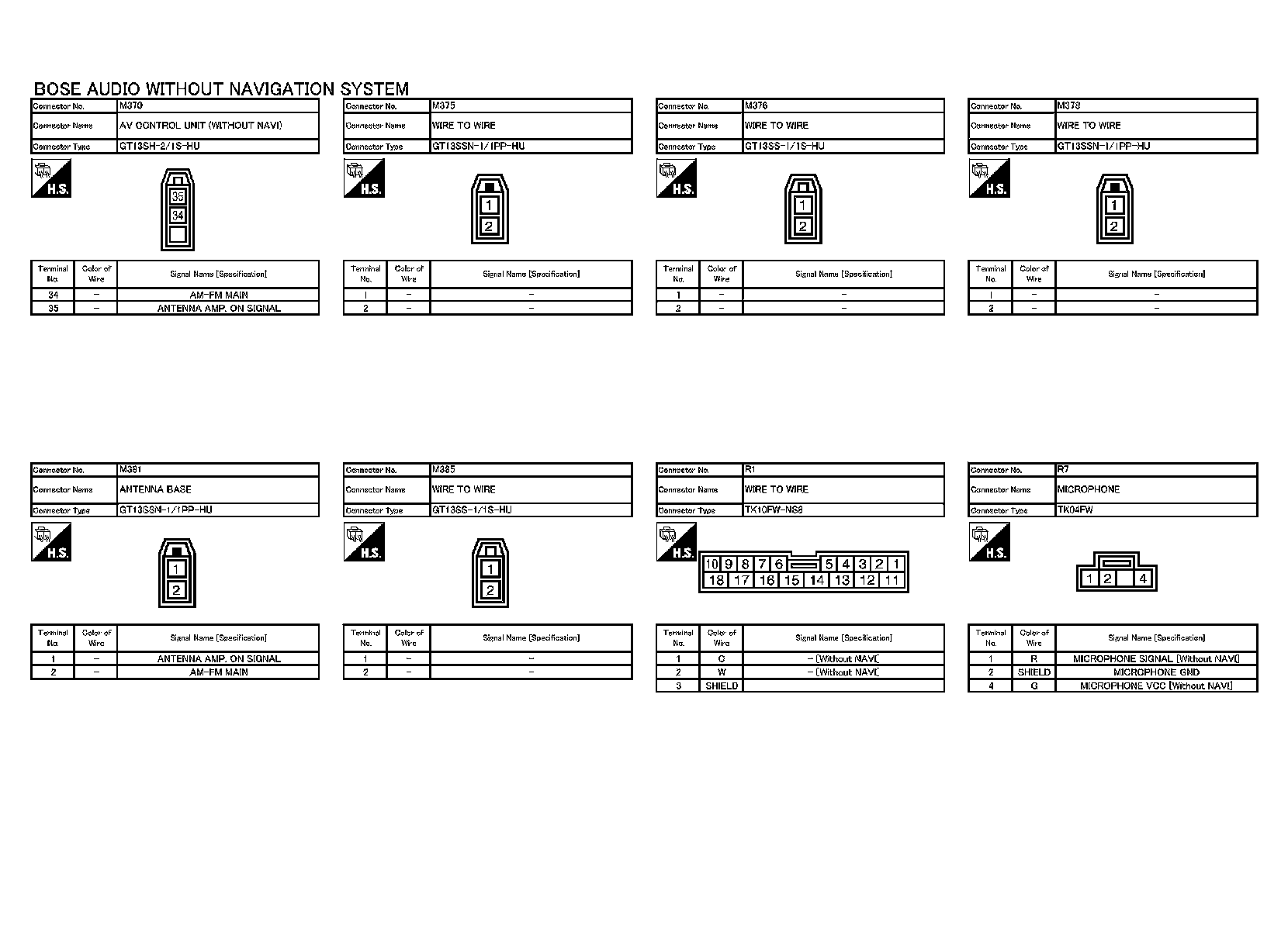

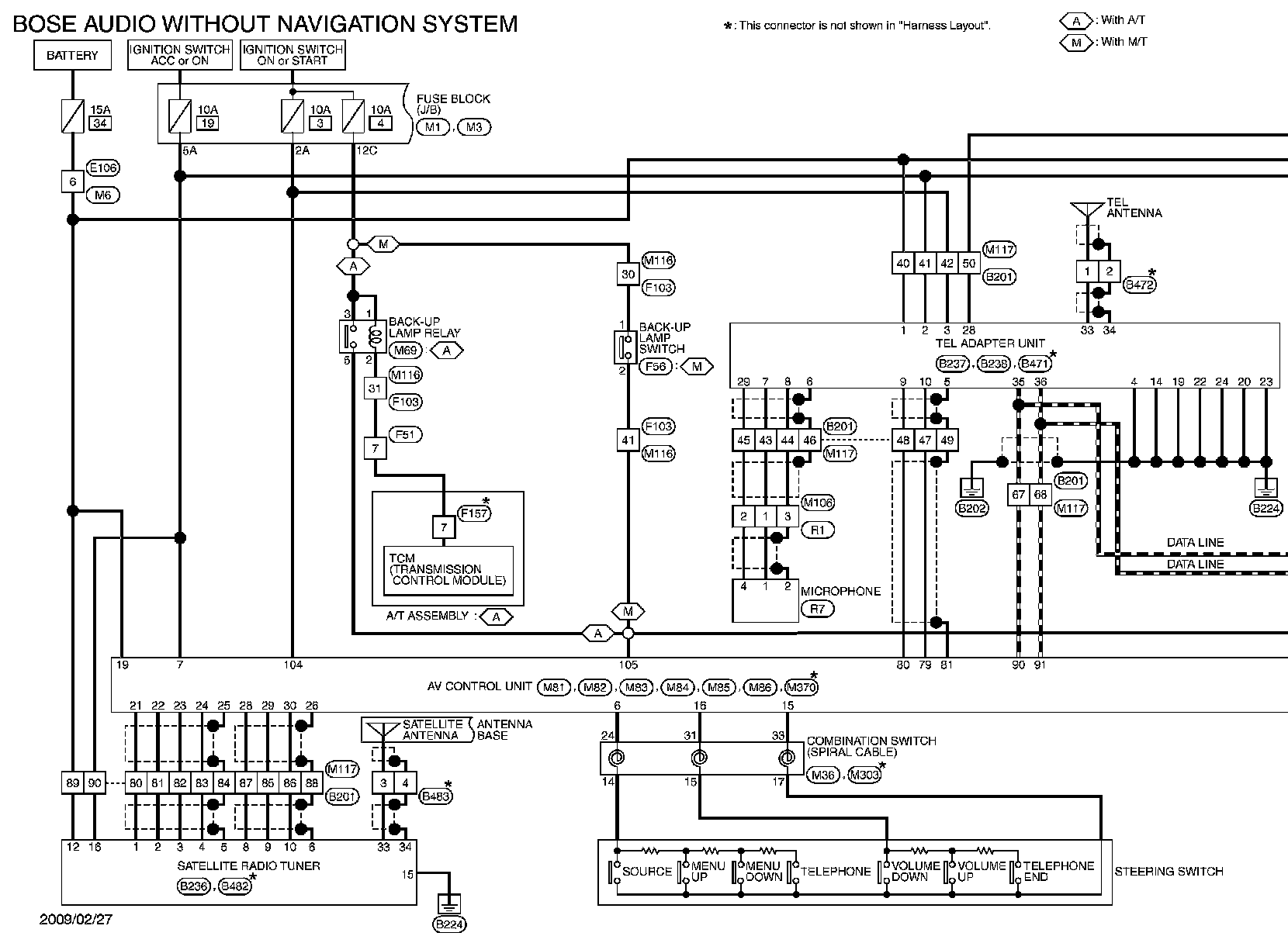

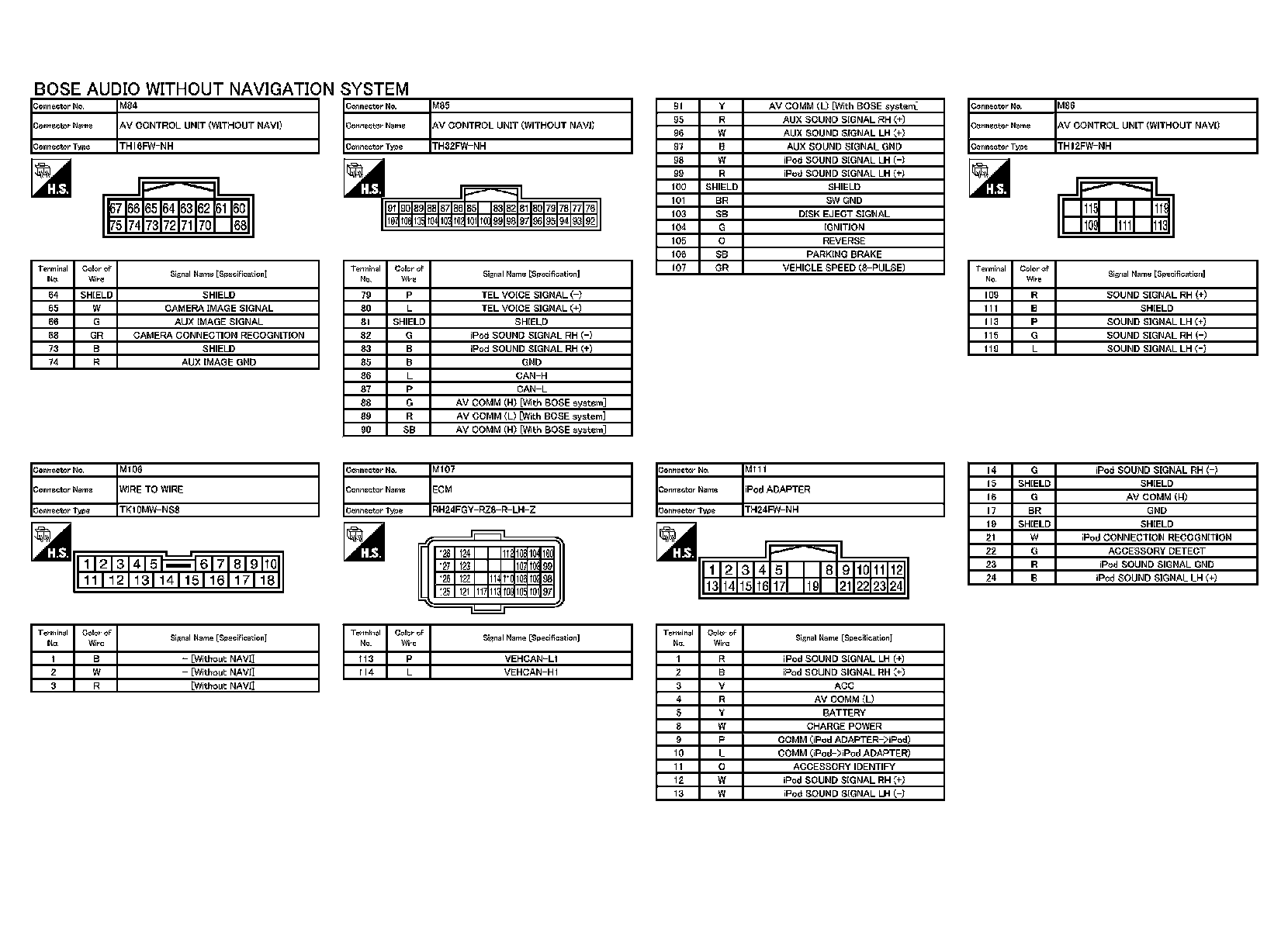

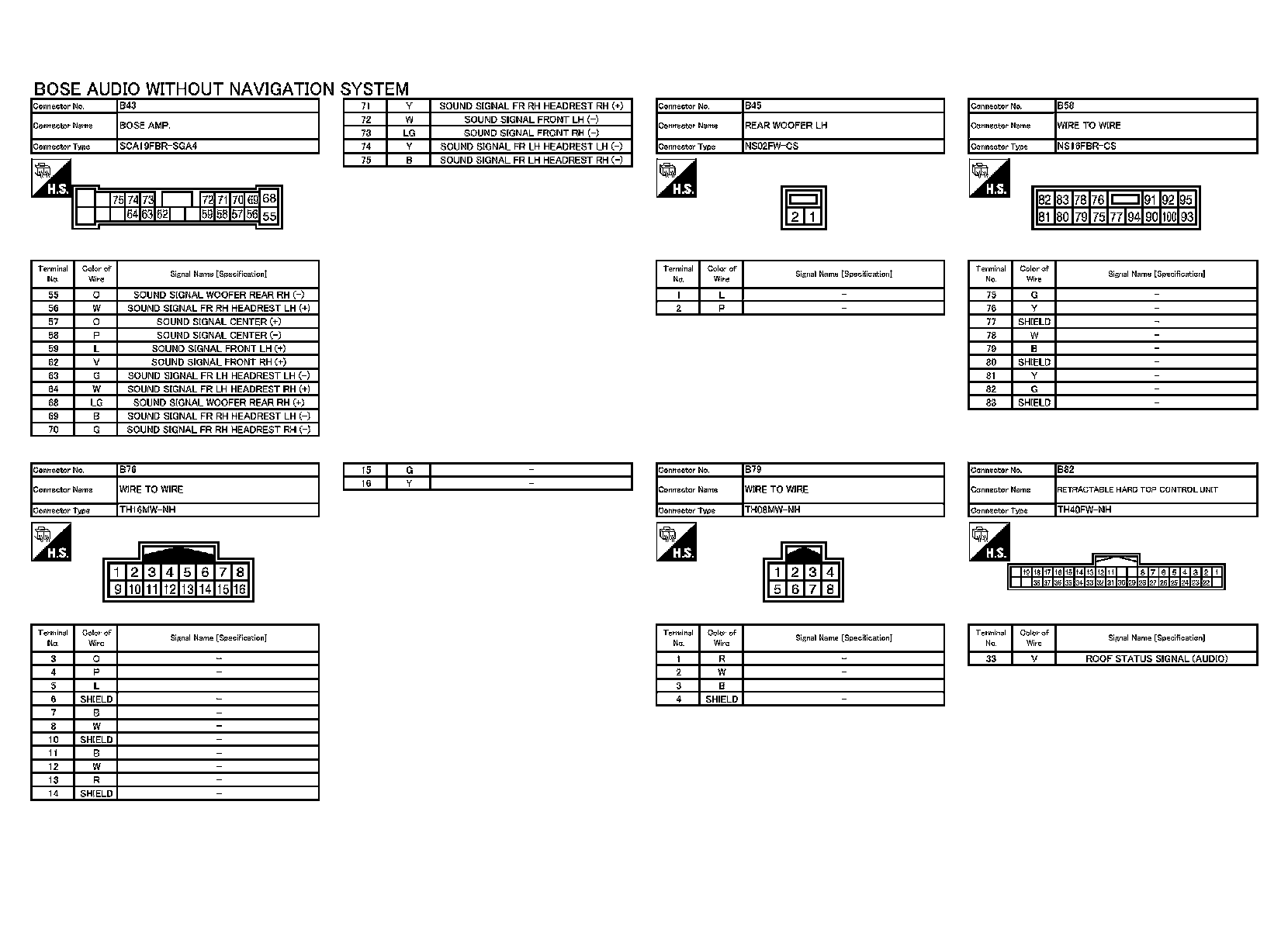

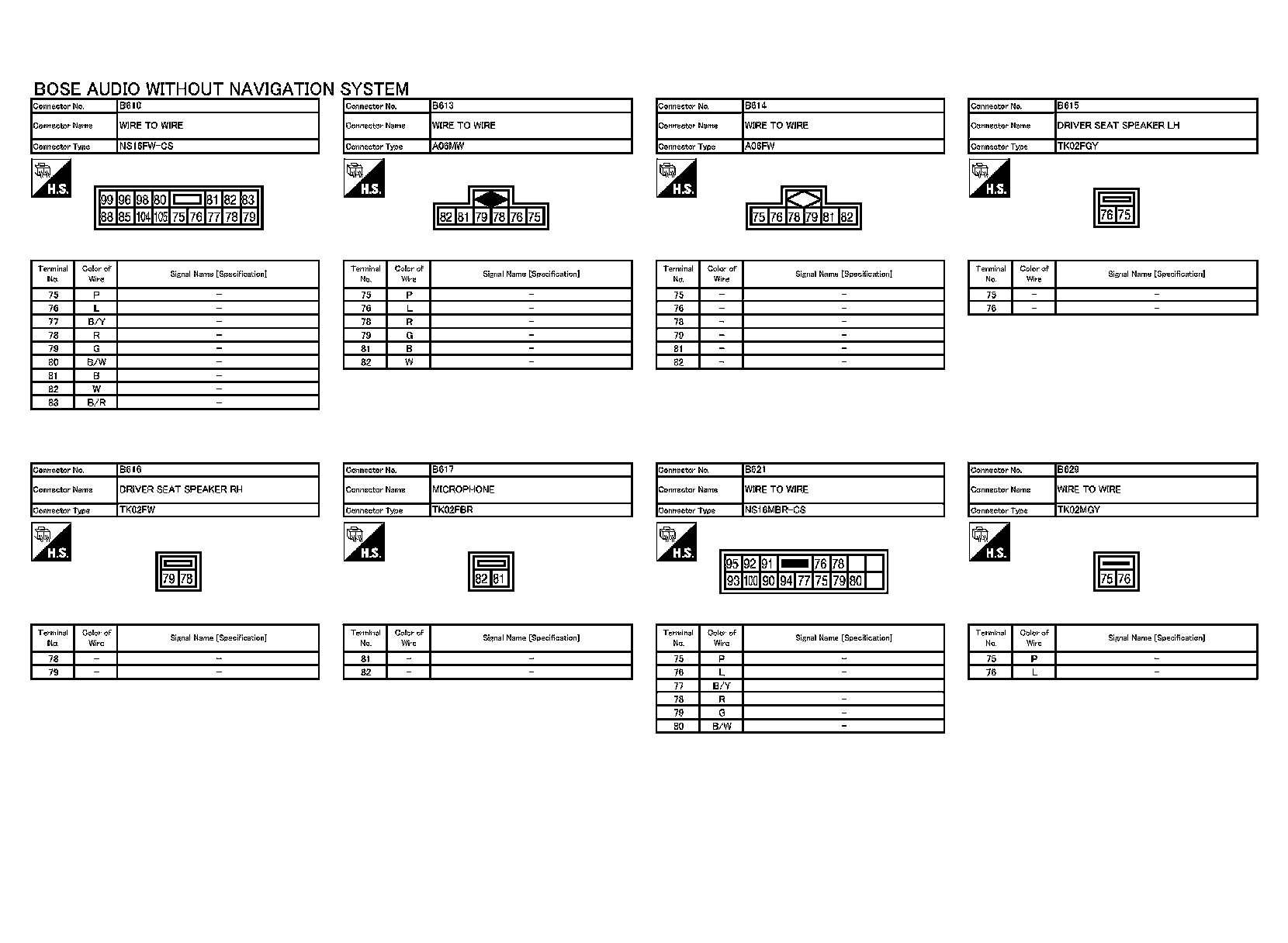

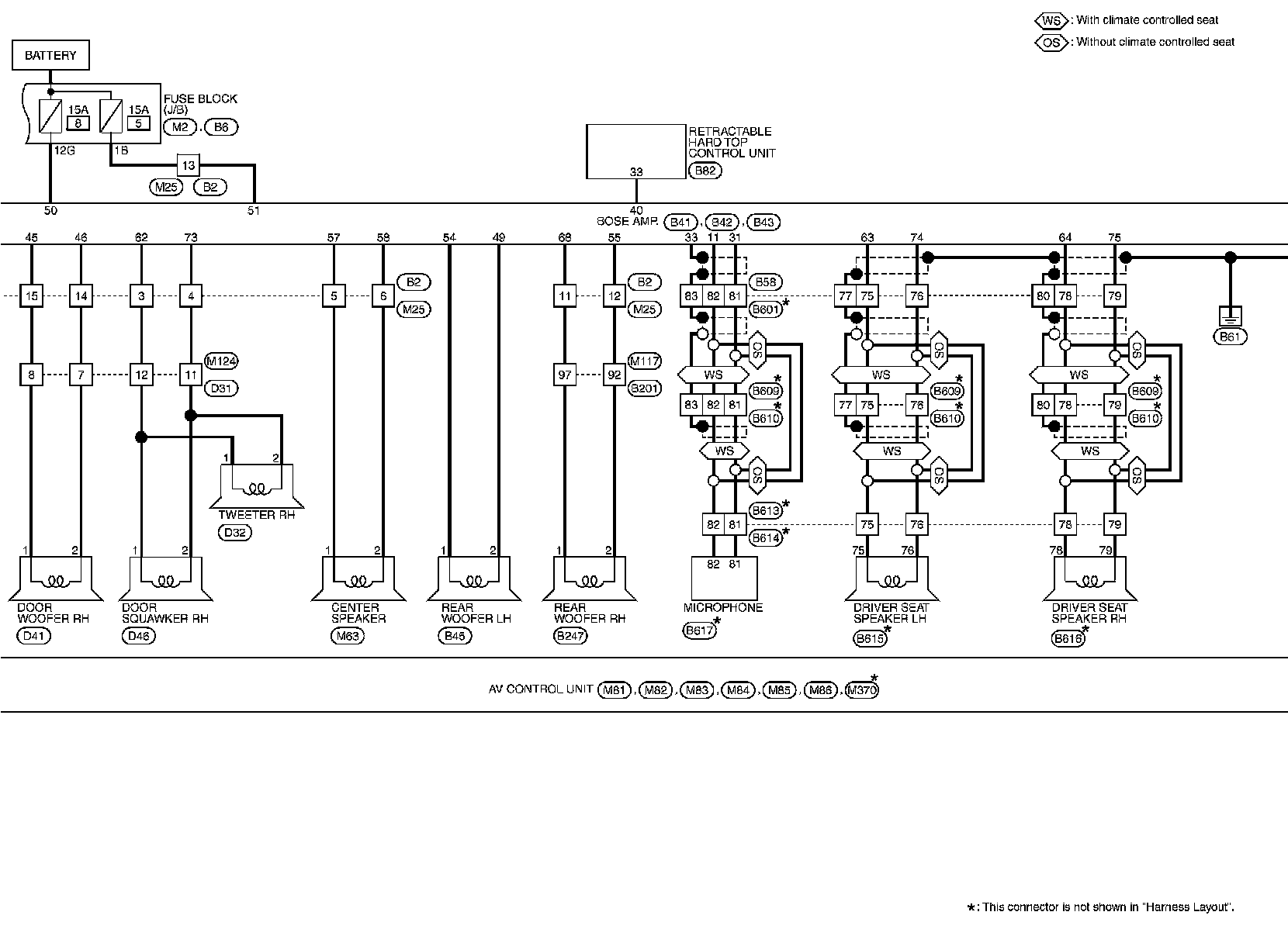

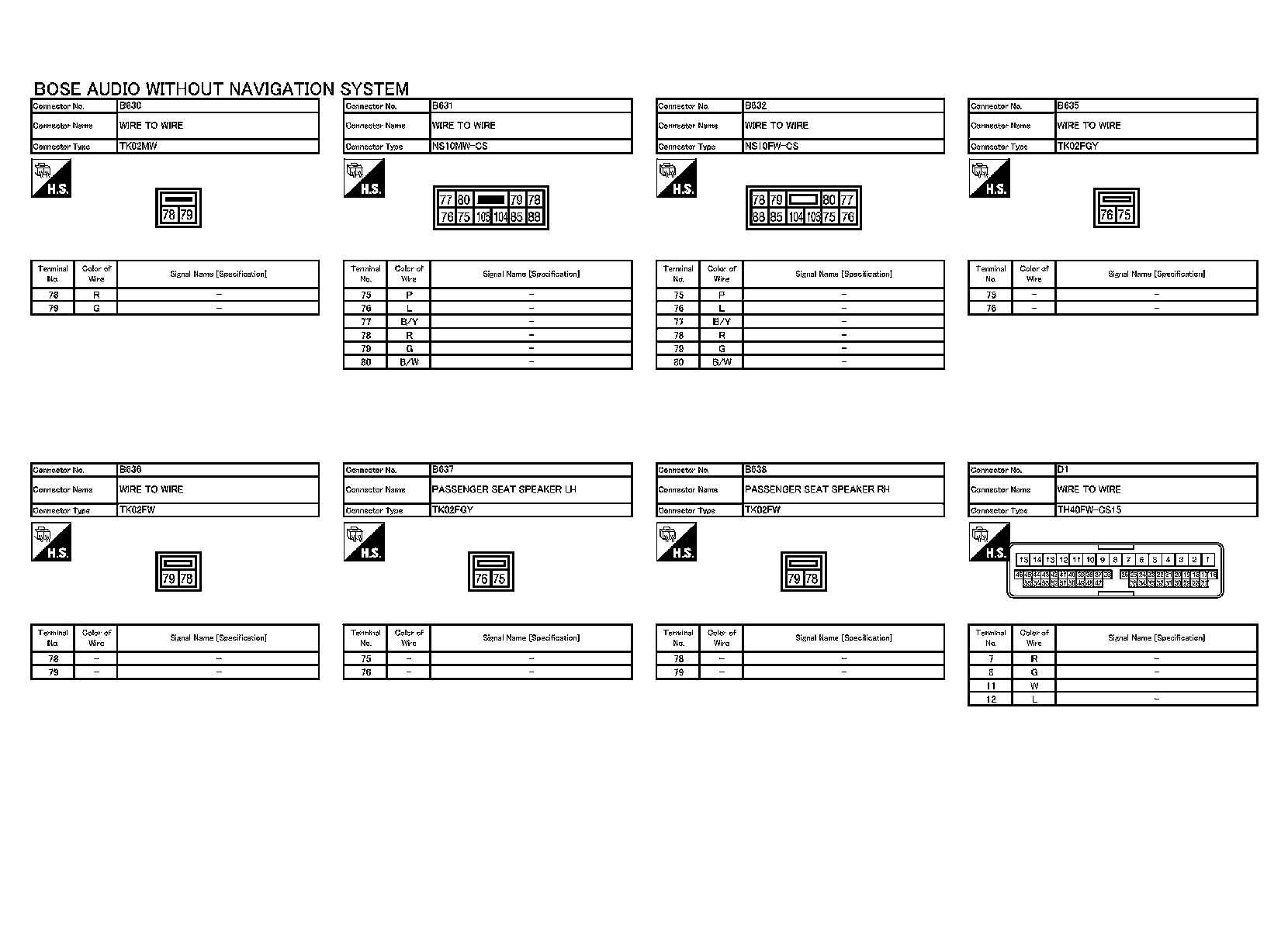

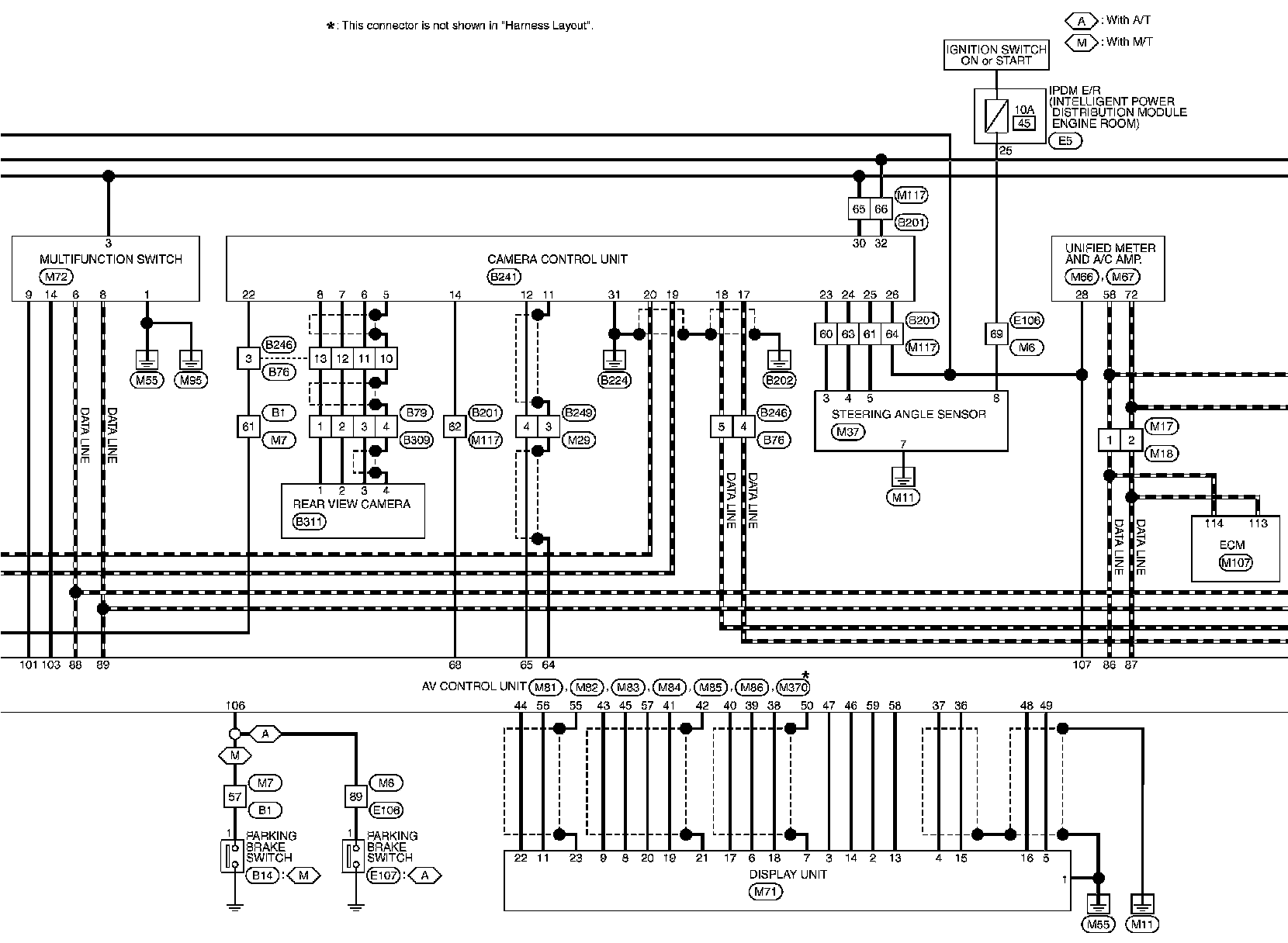

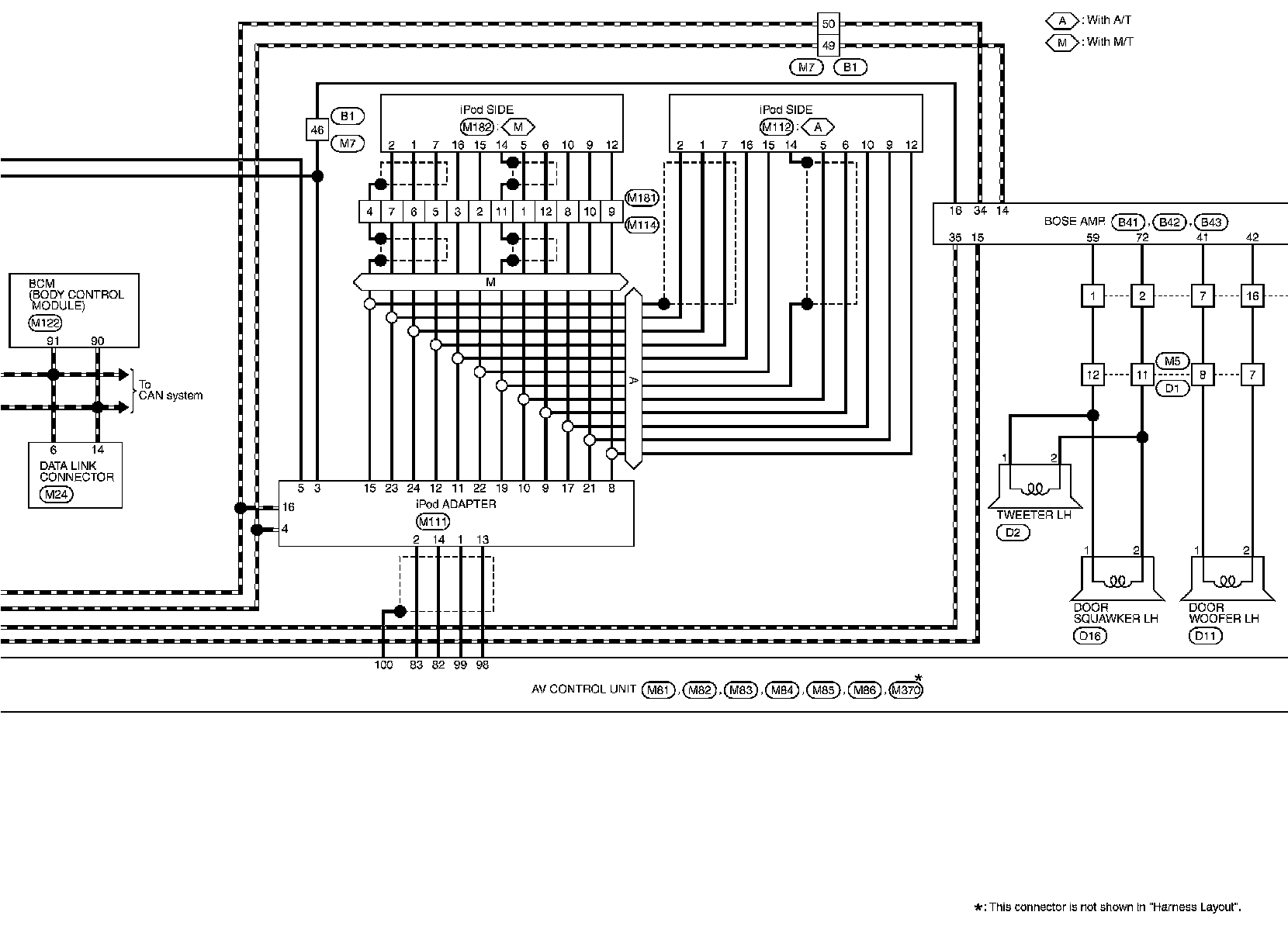

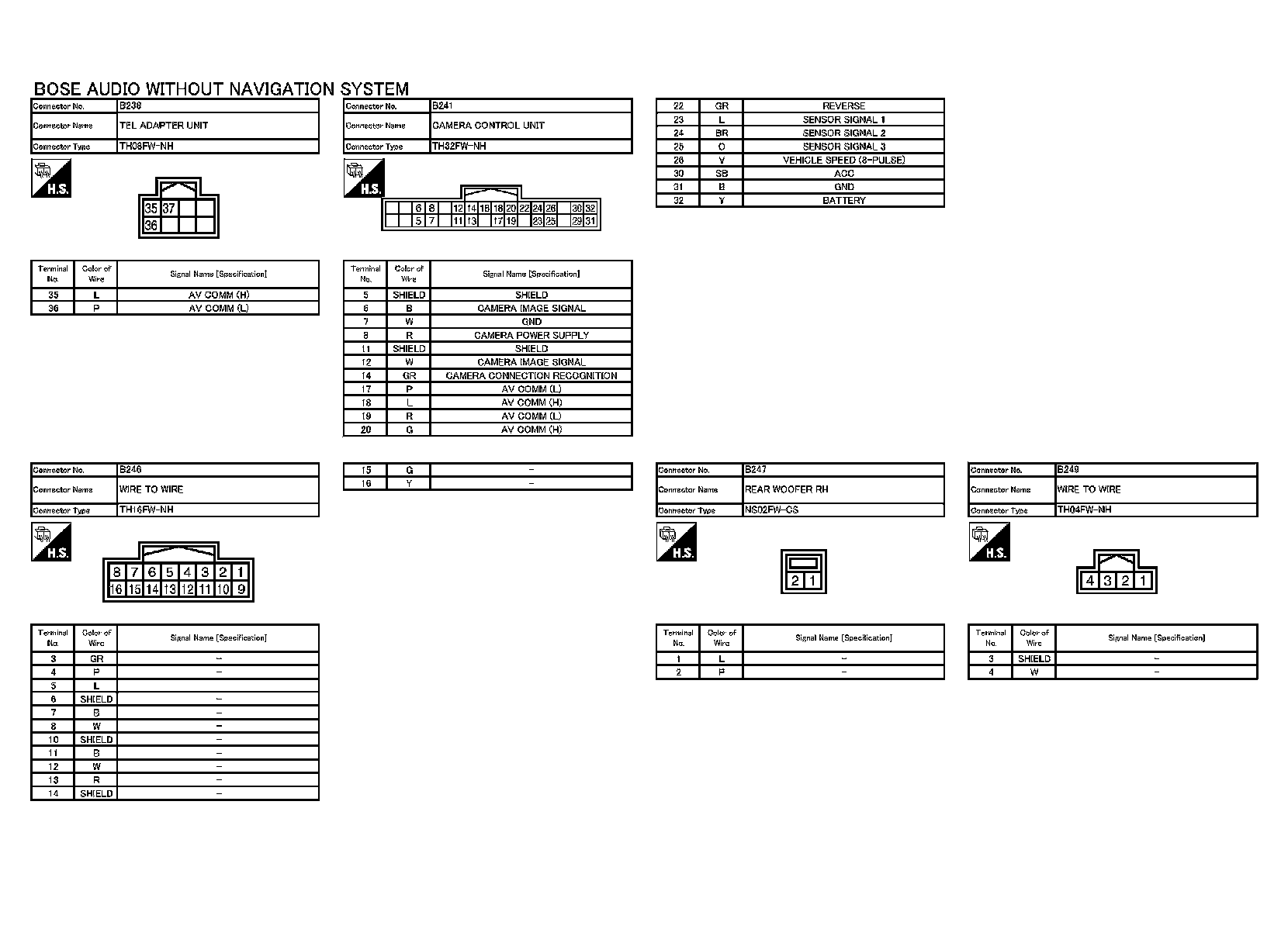

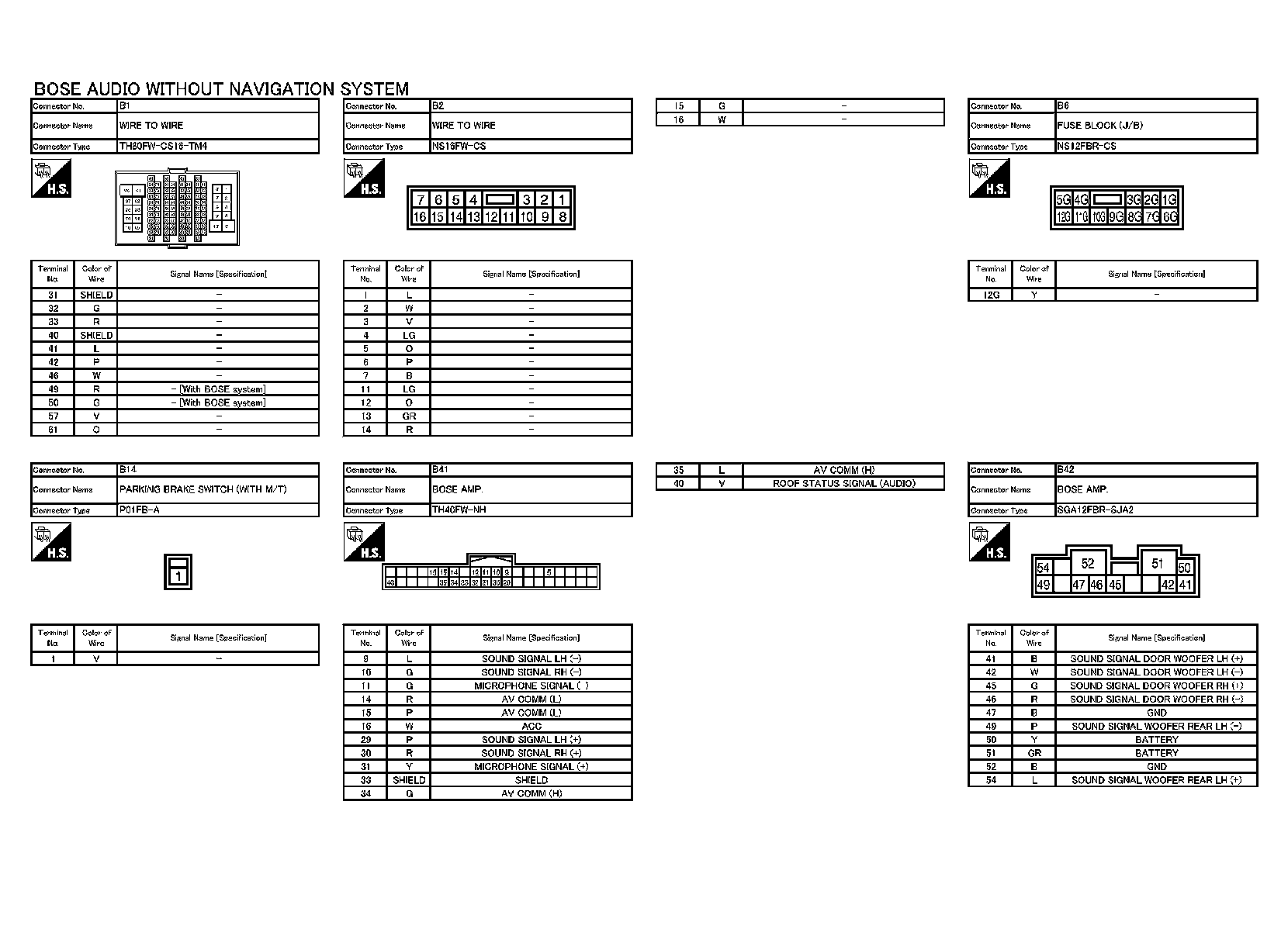

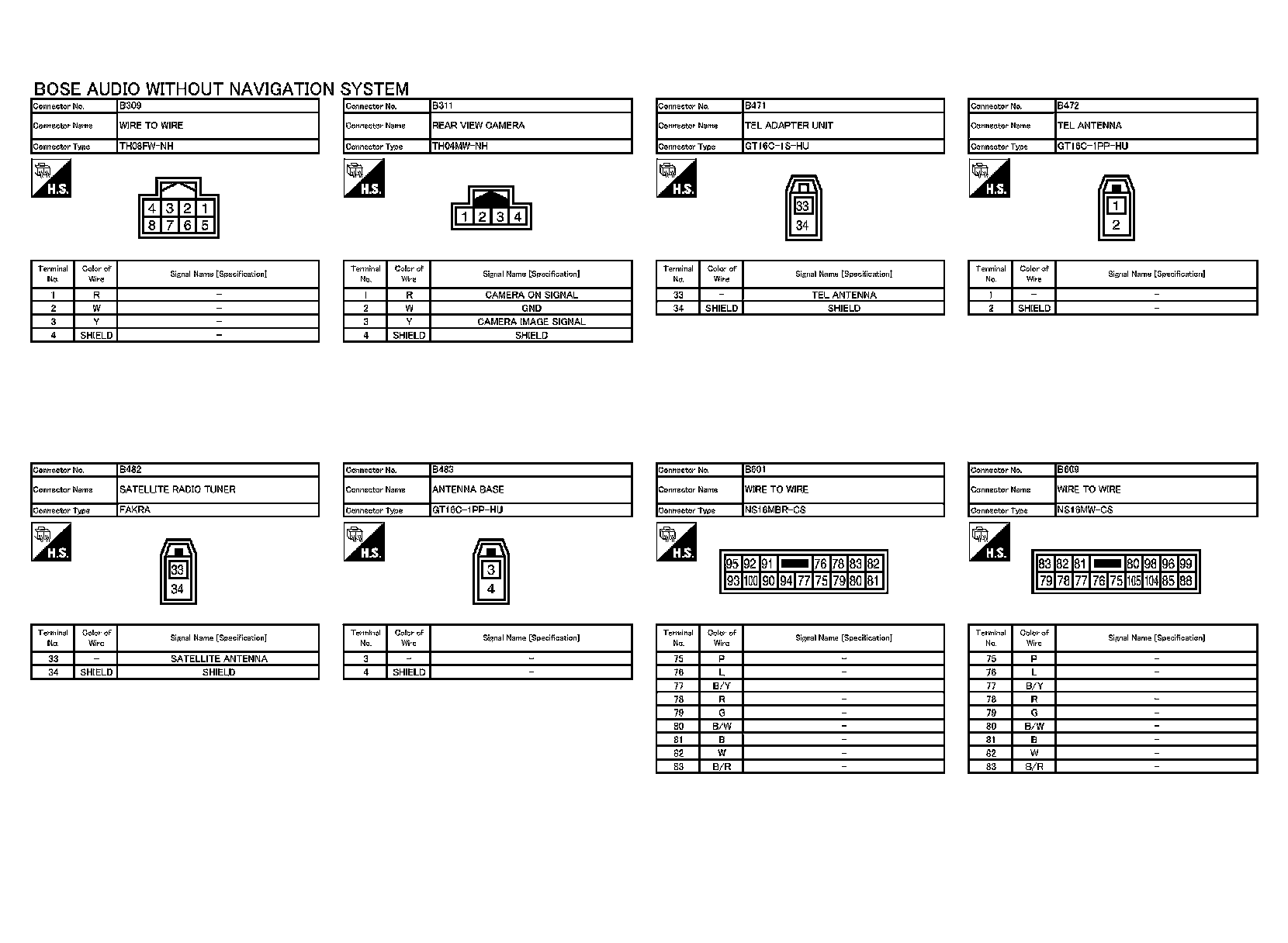

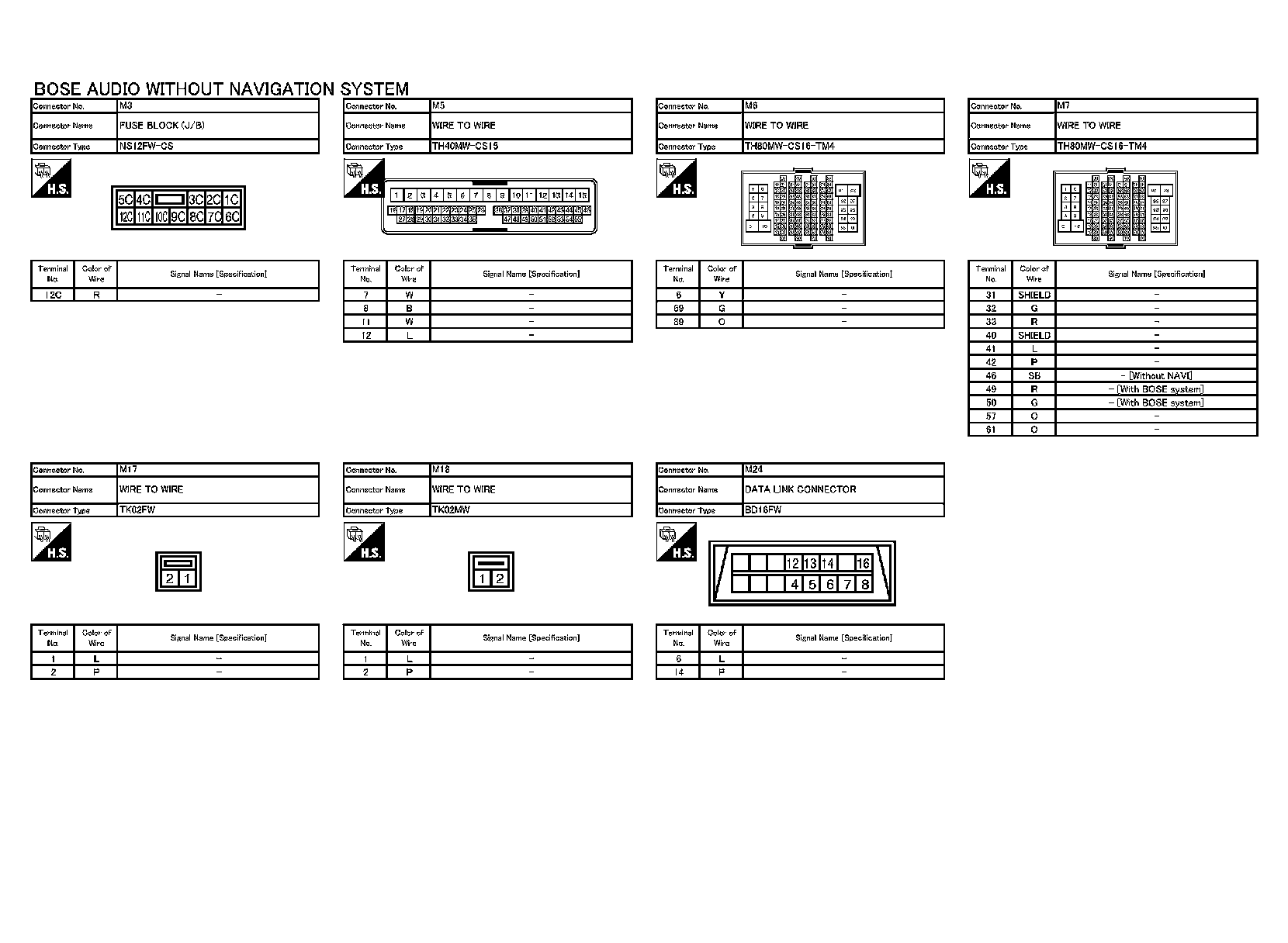

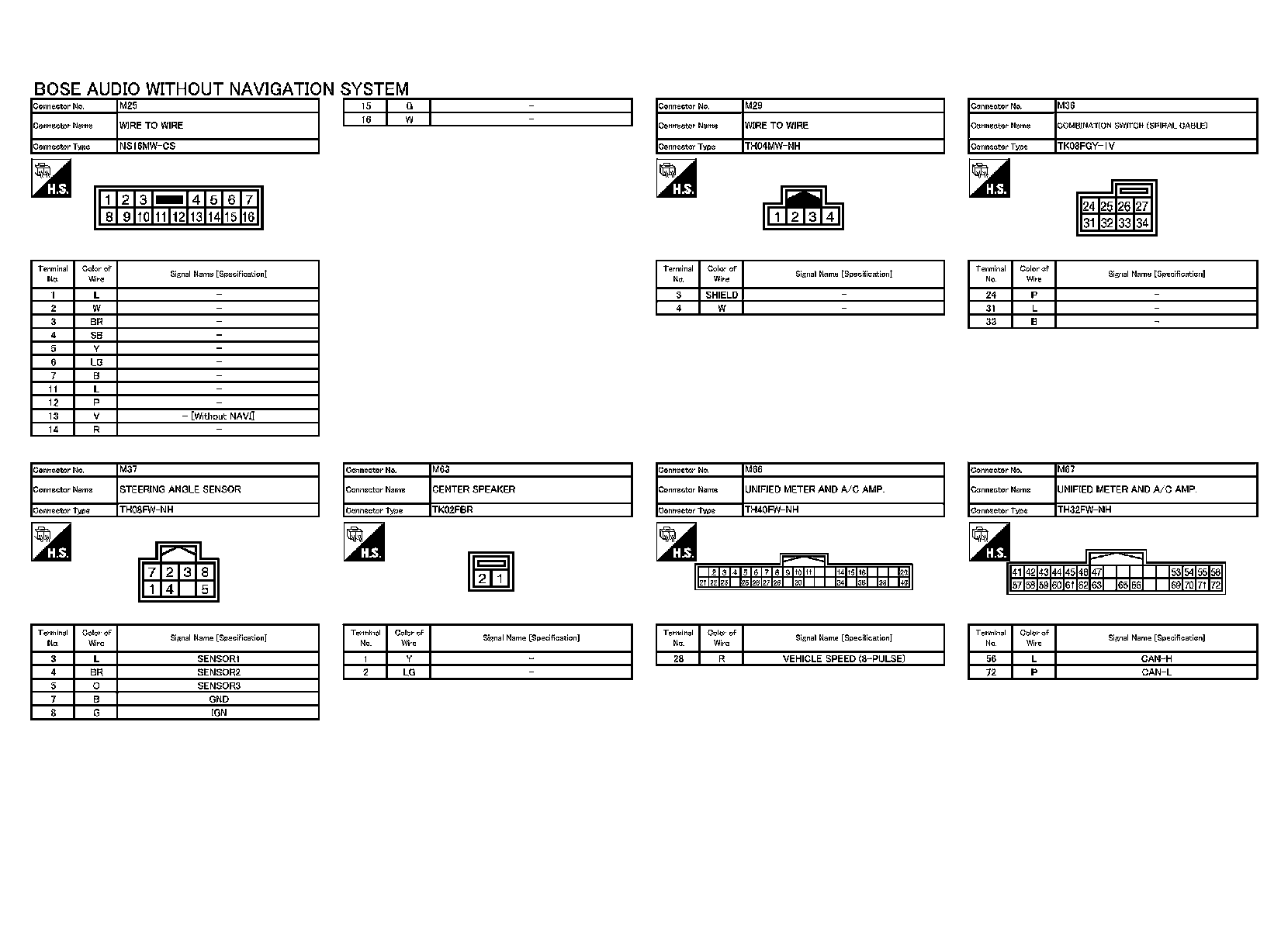

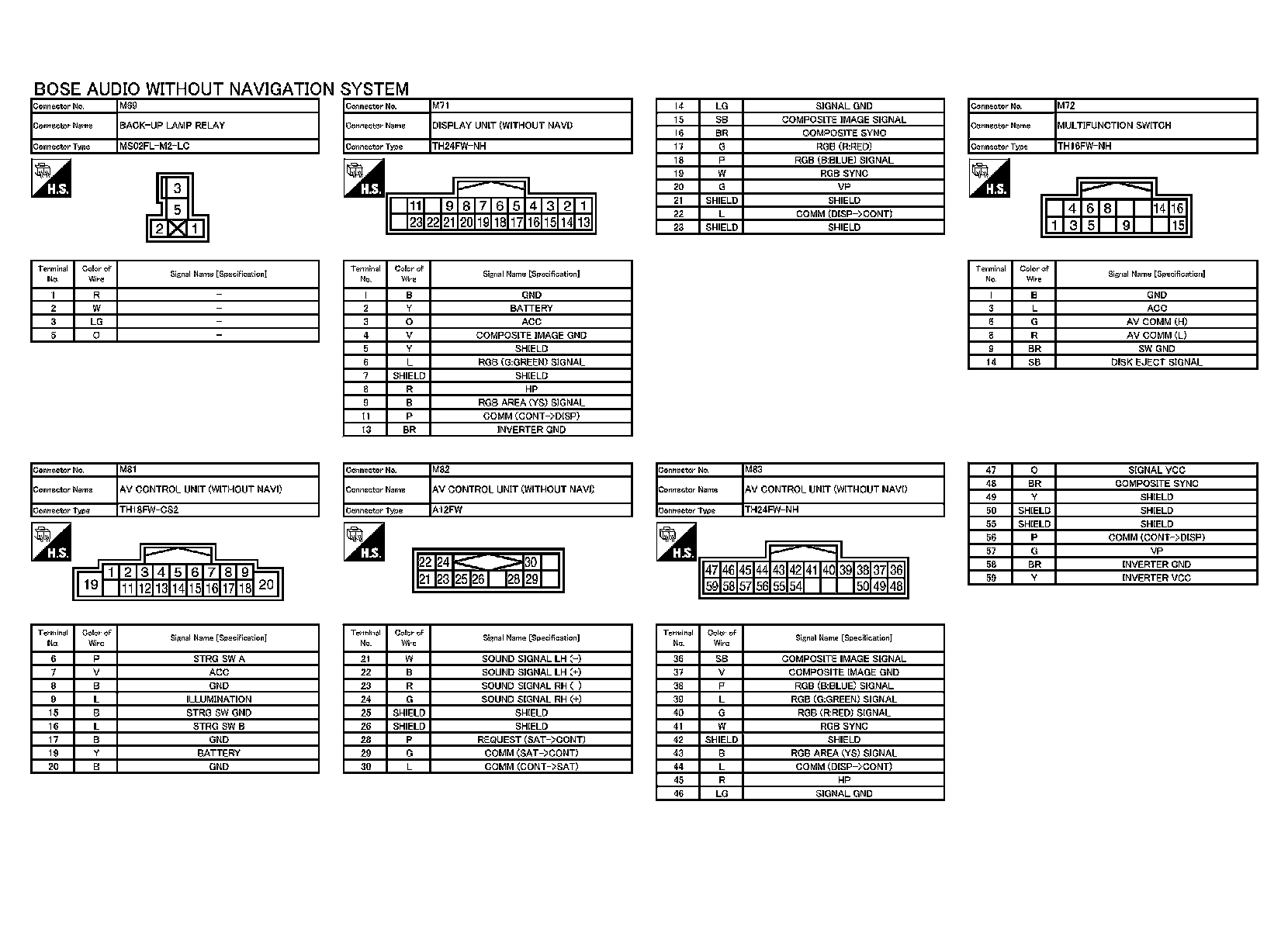

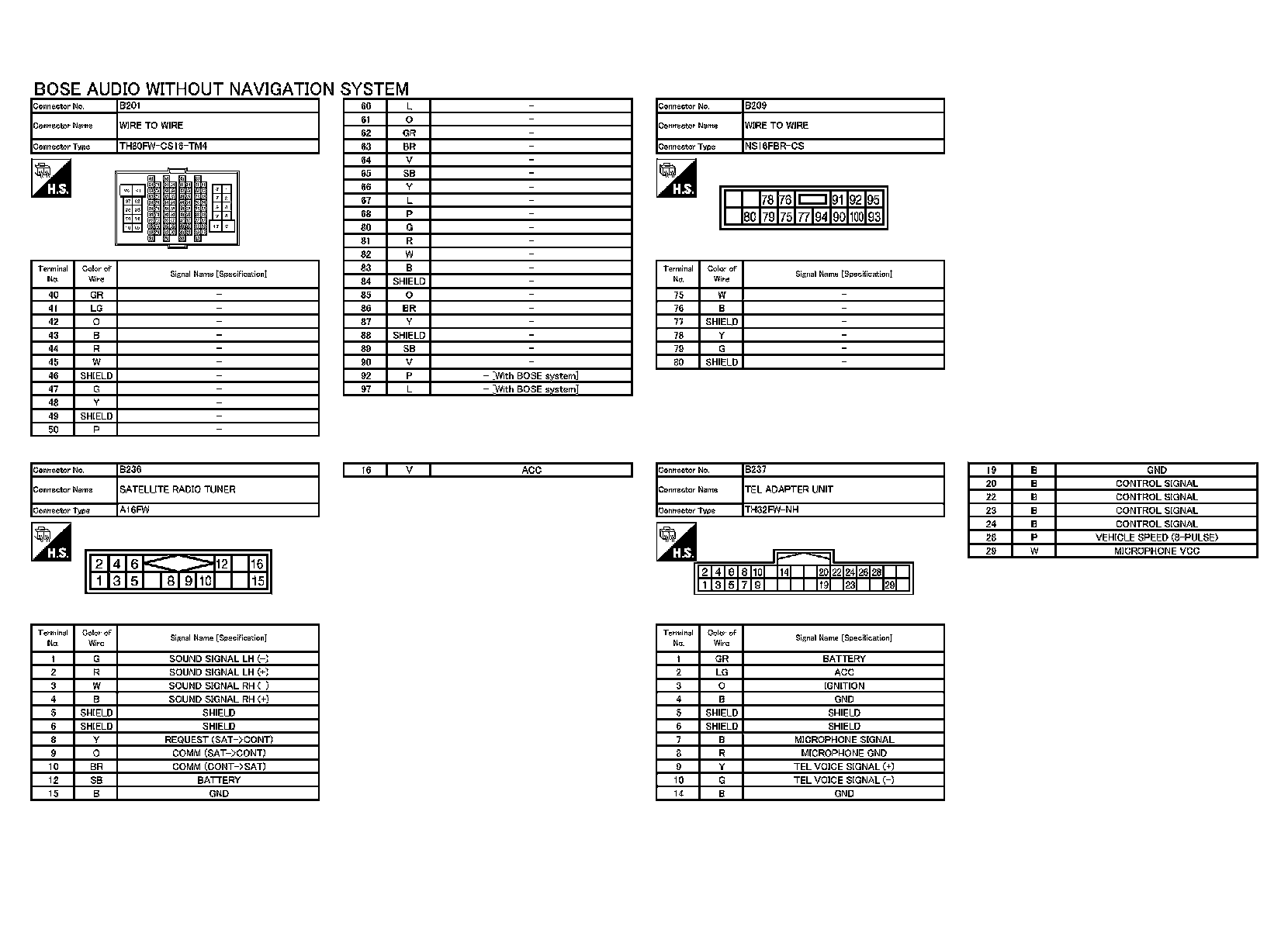

Wiring Diagram - BOSE AUDIO WITHOUT NAVIGATION SYSTEM -


NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.
